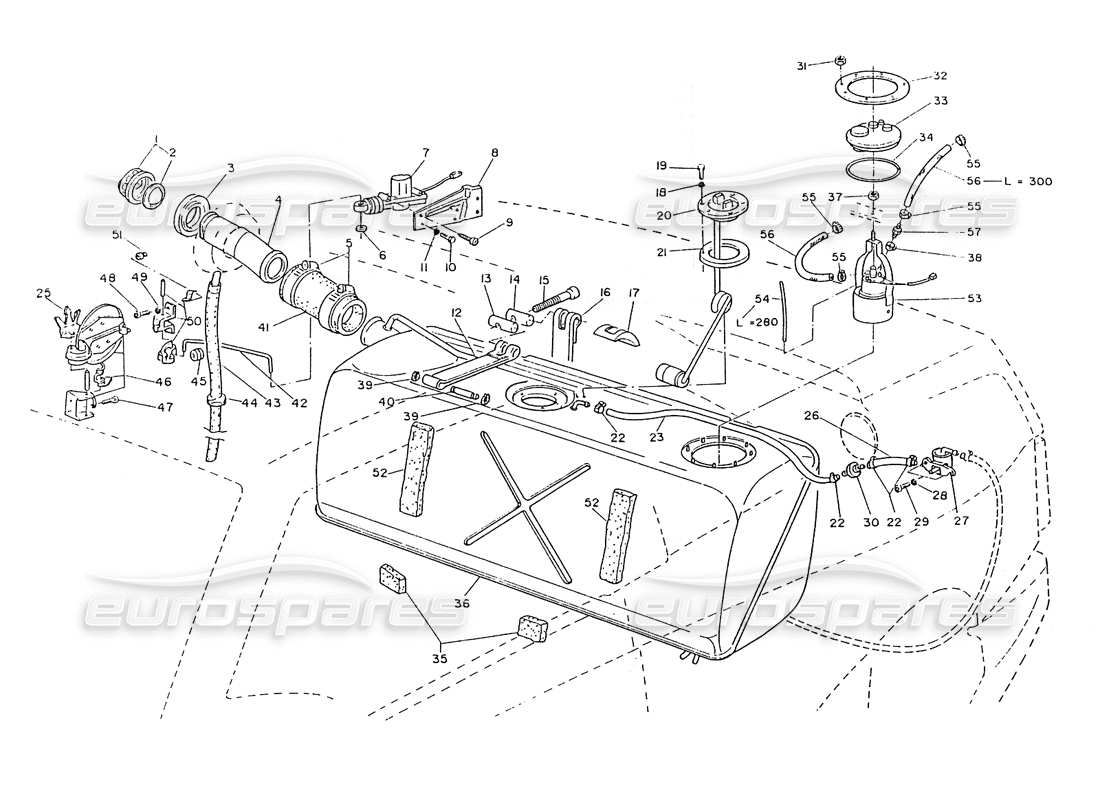

Maserati Ghibli 2.8 (Non ABS) Fuel Tank - Plunged Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                              #
                                                                                                              Part number
                                                                                                              Description
                                                                                                              Price
                                                                                                              # 001
                                                                                                              MPN: 319220354
                                                                                                              FUEL TANK CAP
                                                                                                              from £9.62
                                                                                                              from £9.62
                                                                                                              This part replaces part number 319220007
                                                                                                              # 002
                                                                                                              MPN: 329232355
                                                                                                              GASKET
                                                                                                              from £10.22
                                                                                                              from £10.22
                                                                                                              # 003
                                                                                                              MPN: 319250411
                                                                                                              SEAL RING
                                                                                                              from £3.95
                                                                                                              from £3.95
                                                                                                              This part replaces part number 329232410 - and 1 more. Click to view details
                                                                                                              # 004
                                                                                                              MPN: 369200117
                                                                                                              FILLER NECK
                                                                                                              from £70.08
                                                                                                              from £70.08
                                                                                                              # 005
                                                                                                              MPN: 186404087
                                                                                                              CLAMP
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 006
                                                                                                              MPN: 53451389
                                                                                                              SPRING CLIP
                                                                                                              from £1.08
                                                                                                              from £1.08
                                                                                                              # 007
                                                                                                              MPN: 313320195
                                                                                                              ACTUATOR
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 008
                                                                                                              MPN: 313320196
                                                                                                              SUPPORT
                                                                                                              from £1.55
                                                                                                              from £1.55
                                                                                                              # 011
                                                                                                              MPN: 135700050
                                                                                                              LOCK WASHER
                                                                                                              from £1.08
                                                                                                              from £1.08
                                                                                                              # 012
                                                                                                              MPN: 319220385
                                                                                                              TANK FASTENING UPPER STRIP
                                                                                                              from £6.81
                                                                                                              from £6.81
                                                                                                              # 013
                                                                                                              MPN: 53921332
                                                                                                              STRIP PIN
                                                                                                              from £2.31
                                                                                                              from £2.31
                                                                                                              # 014
                                                                                                              MPN: 53921331
                                                                                                              STRIP PIN
                                                                                                              from £1.55
                                                                                                              from £1.55
                                                                                                              # 015
                                                                                                              MPN: 53921333
                                                                                                              SCREW
                                                                                                              from £1.85
                                                                                                              from £1.85
                                                                                                              # 016
                                                                                                              MPN: 319220106
                                                                                                              FUEL TANK LOWER FASTENING STRIP
                                                                                                              from £7.73
                                                                                                              from £7.73
                                                                                                              # 017
                                                                                                              MPN: 319220337
                                                                                                              STRIP RETAINING PAD
                                                                                                              from £1.93
                                                                                                              from £1.93
                                                                                                              # 018
                                                                                                              MPN: 136220043
                                                                                                              FLAT WASHER
                                                                                                              # 019
                                                                                                              MPN: 53361308
                                                                                                              SCREW
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 020
                                                                                                              MPN: 313620111
                                                                                                              FUEL LEVEL GAUGE
                                                                                                              from £53.21
                                                                                                              from £53.21
                                                                                                              # 021
                                                                                                              MPN: 33331300
                                                                                                              GASKET
                                                                                                              from £1.93
                                                                                                              from £1.93
                                                                                                              # 022
                                                                                                              MPN: 30921110
                                                                                                              CLAMP
                                                                                                              # 023
                                                                                                              MPN: 319220389
                                                                                                              PIPING
                                                                                                              from £5.43
                                                                                                              from £5.43
                                                                                                              # 025
                                                                                                              MPN: 318353350
                                                                                                              Maserati BADGE (BLACK)
                                                                                                              from £42.53
                                                                                                              from £42.53
                                                                                                              # 027
                                                                                                              MPN: 319220102
                                                                                                              CHECK VALVE FOR VEHICLE TURNOVER
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 029
                                                                                                              MPN: 119142160
                                                                                                              SCREW
                                                                                                              from £0.84
                                                                                                              from £0.84
                                                                                                              # 030
                                                                                                              MPN: 319220134
                                                                                                              LIMITING VALVE
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 032
                                                                                                              MPN: 399250446
                                                                                                              FLANGE
                                                                                                              from £13.85
                                                                                                              from £13.85
                                                                                                              # 033
                                                                                                              MPN: 393750130
                                                                                                              FUEL PUMP COVER
                                                                                                              from £5.49
                                                                                                              from £5.49
                                                                                                              # 034
                                                                                                              MPN: 393750309
                                                                                                              GASKET
                                                                                                              from £2.33
                                                                                                              from £2.33
                                                                                                              # 035
                                                                                                              MPN: 319220399
                                                                                                              FELT PAD
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 036
                                                                                                              MPN: 399250100
                                                                                                              FUEL TANK
                                                                                                              # 038
                                                                                                              MPN: 559221337
                                                                                                              CLAMP
                                                                                                              from £0.70
                                                                                                              from £0.70
                                                                                                              # 039
                                                                                                              MPN: 150800050
                                                                                                              SNAP RING
                                                                                                              # 040
                                                                                                              MPN: 30921336
                                                                                                              PIN
                                                                                                              from £3.64
                                                                                                              from £3.64
                                                                                                              # 041
                                                                                                              MPN: 329232383
                                                                                                              SLEEVE
                                                                                                              from £44.10
                                                                                                              from £44.10
                                                                                                              # 042
                                                                                                              MPN: 362500520
                                                                                                              CONTROL TIE ROD
                                                                                                              from £30.36
                                                                                                              from £30.36
                                                                                                              # 043
                                                                                                              MPN: 30871325
                                                                                                              DRAINING PIPE
                                                                                                              (ORDER IN 5 METERSS OR MULTIPLE)
                                                                                                              from £1.27
                                                                                                              from £1.27
                                                                                                              # 044
                                                                                                              MPN: 319220361
                                                                                                              GROMMET
                                                                                                              from £2.31
                                                                                                              from £2.31
                                                                                                              # 045
                                                                                                              MPN: 30211310
                                                                                                              FAIRLEAD
                                                                                                              from £1.05
                                                                                                              from £1.05
                                                                                                              # 046
                                                                                                              MPN: 362500143
                                                                                                              FUEL FLAP
                                                                                                              from £14.16
                                                                                                              from £14.16
                                                                                                              # 047
                                                                                                              MPN: 167570512
                                                                                                              SCREW
                                                                                                              from £1.55
                                                                                                              from £1.55
                                                                                                              # 048
                                                                                                              MPN: 119142160
                                                                                                              SCREW
                                                                                                              from £0.84
                                                                                                              from £0.84
                                                                                                              # 049
                                                                                                              MPN: 135900043
                                                                                                              FLAT WASHER
                                                                                                              from £1.08
                                                                                                              from £1.08
                                                                                                              This part replaces part number 14496207
                                                                                                              # 050
                                                                                                              MPN: 312520144
                                                                                                              RATCHET
                                                                                                              from £5.56
                                                                                                              from £5.56
                                                                                                              # 051
                                                                                                              MPN: 312520499
                                                                                                              NUT SCREW
                                                                                                              from £0.70
                                                                                                              from £0.70
                                                                                                              # 052
                                                                                                              MPN: 319220398
                                                                                                              GASKET
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 053
                                                                                                              MPN: 393750135
                                                                                                              PLUNGED PUMP
                                                                                                              from £147.82
                                                                                                              from £147.82
                                                                                                              This part replaces part number 393750134
                                                                                                              # 054
                                                                                                              MPN: 97470
                                                                                                              RUBBER GASKET
                                                                                                              from £43.68
                                                                                                              from £43.68
                                                                                                              This part replaces part number 311053321 - and 1 more. Click to view details
                                                                                                              # 055
                                                                                                              MPN: 559221338
                                                                                                              CLAMP
                                                                                                              from £0.70
                                                                                                              from £0.70
                                                                                                              # 056
                                                                                                              MPN: 398750368
                                                                                                              PIPE
                                                                                                              (ORDER IN 1 METERS OR MULTIPLE)
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 057
                                                                                                              MPN: 399250432
                                                                                                              UNION
                                                                                                              from £1.27
                                                                                                              from £1.27
