009.1 - Mechanical Gearbox

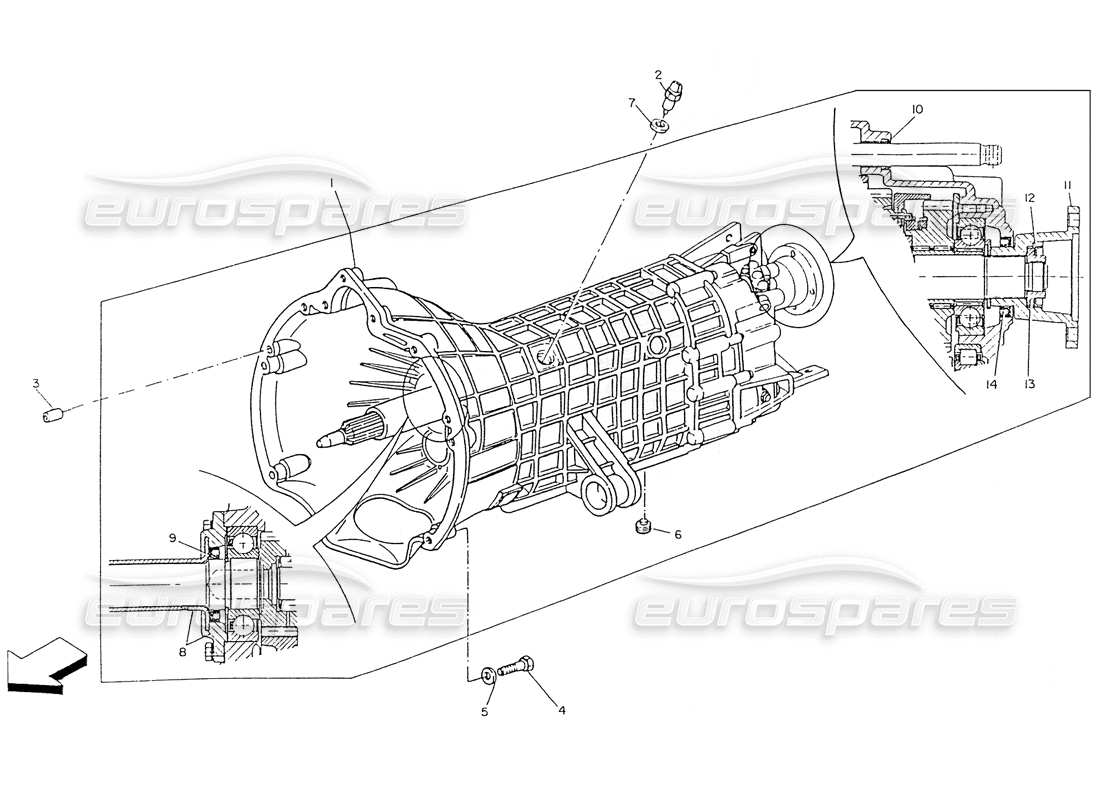

Maserati Ghibli 2.8 (Non ABS) Mechanical Gearbox Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 324853006
GEARBOX ASSY
Valid for 00, 05
from £6,567.11
from £6,567.11
# 002
MPN: 323353131
REVERSE GEAR SWITCH
Valid for 00, 05
from £18.00
from £18.00
# 003
MPN: 310420311
DOWEL
Valid for 00, 05
from £9.61
from £9.61
# 004
MPN: 100810040
SCREW
Valid for 00, 05
from £1.31
from £1.31
# 005
MPN: 138410100
WASHER
Valid for 00, 05
# 006
MPN: 394850408
DRAIN PLUG MAGNETIC
Valid for 00, 05
from £4.62
from £4.62
# 007
MPN: 317851380
GASKET
Valid for 00, 05
# 008
MPN: 394850410
COVER
Valid for 00, 05
Supersession
Supersession
# 009
MPN: 394850412
OIL SEAL
Valid for 00, 05
from £5.54
from £5.54
# 010
MPN: 324853419
OIL SEAL
Valid for 00, 05
from £21.85
from £21.85
# 011
MPN: 324853425
OUTPUT FLANGE
Valid for 00, 05
from £113.49
from £113.49
# 012
MPN: 394850417
SECURING SHIM
Valid for 00, 05
from £24.77
from £24.77
# 013
MPN: 394850415
FLANGE
Valid for 00, 05
from £4.15
from £4.15
# 014
MPN: 324853420
OIL SEAL
Valid for 00, 05
from £13.92
from £13.92
