maserati ghibli 2.8 (non abs) front chassis and steering box parts diagram

013 - Front Chassis and Steering Box

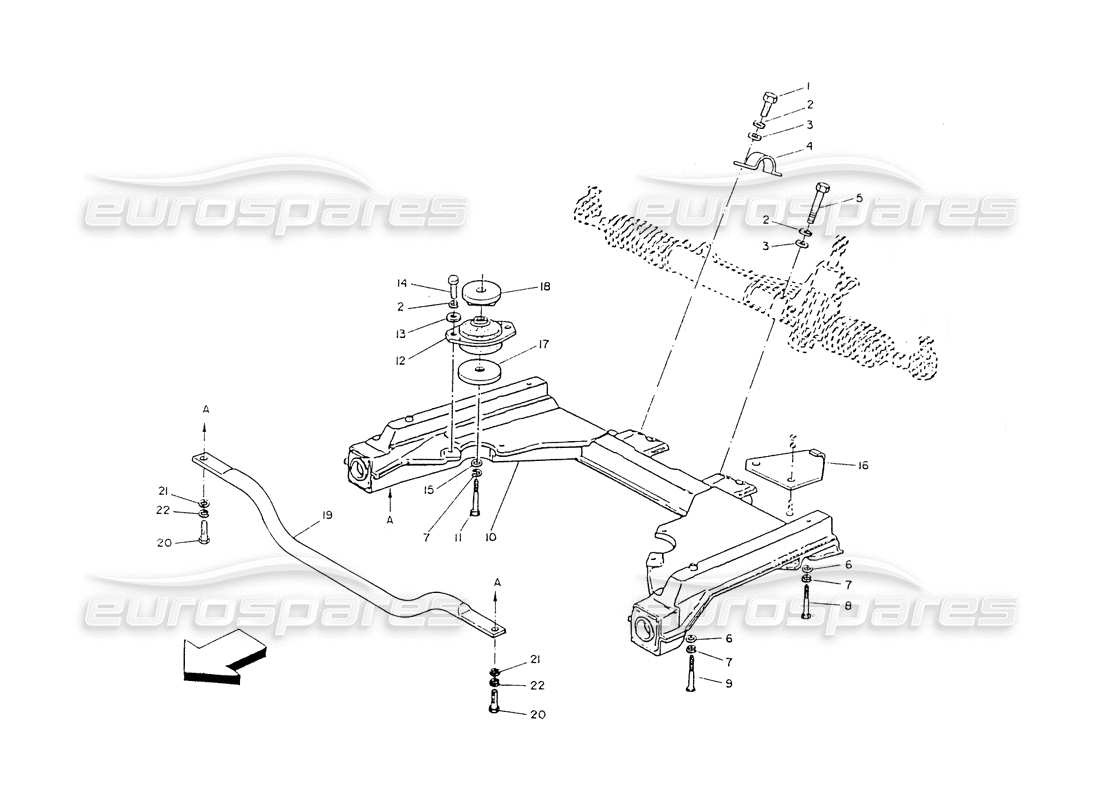

Maserati Ghibli 2.8 (Non ABS) Front Chassis and Steering Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 003
                                          MPN: 163020100
                                          FLAT WASHER
                                          from £1.08
                                          from £1.08
                                          # 004
                                          MPN: 327856344
                                          BRACKET
                                          from £1.93
                                          from £1.93
                                          # 005
                                          MPN: 100710035
                                          SCREW
                                          # 007
                                          MPN: 138200120
                                          SPRING WASHER
                                          from £0.77
                                          from £0.77
                                          # 008
                                          MPN: 326656338
                                          SCREW
                                          from £5.49
                                          from £5.49
                                          # 010
                                          MPN: 362704102
                                          Front Chassis
                                          AFTER CHANGE
                                          from £6,356.02
                                          from £6,356.02
                                          This part replaces part number 312753102
                                          # 012
                                          MPN: 314220100
                                          ENGINE SILENTBLOCK
                                          from £220.34
                                          from £220.34
                                          # 013
                                          MPN: 314220314
                                          WASHER
                                          from £1.08
                                          from £1.08
                                          # 014
                                          MPN: 101210030
                                          SCREW
                                          from £1.55
                                          from £1.55
                                          # 015
                                          MPN: 313020411
                                          FLAT WASHER
                                          from £0.47
                                          from £0.47
                                          # 016
                                          MPN: 322753601
                                          STEERING BOX STEEL SHEET GUARD
                                          BEFORE CHANGE
                                          from £5.57
                                          from £5.57
                                          # 017
                                          MPN: 314220312
                                          WASHER
                                          from £2.16
                                          from £2.16
                                          # 018
                                          MPN: 316220312
                                          WASHER
                                          from £1.08
                                          from £1.08
                                          # 019
                                          MPN: 366600380
                                          FRONT CHASSIS LOWER TIE ROD
                                          Supersession
                                          Supersession
                                          # 022
                                          MPN: 138410080
                                          SPRING WASHER
                                          from £2.28
                                          from £2.28
