014 - Power Steering System

Maserati Ghibli 2.8 (Non ABS) Power Steering System Parts Diagram

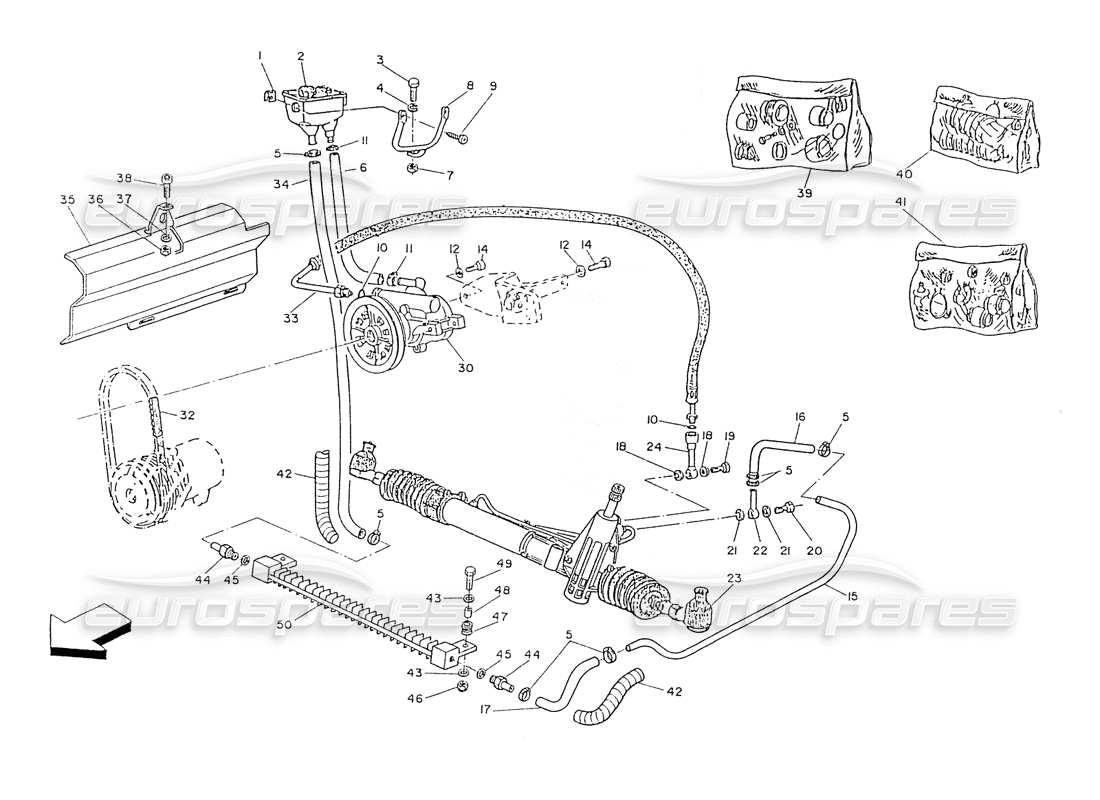

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 163610050
                                                                                  SPRING CLIP
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 002
                                                                                  MPN: 397850130
                                                                                  OIL TANK
                                                                                  from £21.38
                                                                                  from £21.38
                                                                                  This part replaces part number 317853130
                                                                                  # 005
                                                                                  MPN: 317832389
                                                                                  CLAMP
                                                                                  from £1.97
                                                                                  from £1.97
                                                                                  # 006
                                                                                  MPN: 367800370
                                                                                  SLEEVE
                                                                                  from £15.56
                                                                                  from £15.56
                                                                                  # 007
                                                                                  MPN: 125100080
                                                                                  NUT
                                                                                  from £0.86
                                                                                  from £0.86
                                                                                  # 008
                                                                                  MPN: 397870131
                                                                                  TANK FIXING BRACKET
                                                                                  from £14.29
                                                                                  from £14.29
                                                                                  # 010
                                                                                  MPN: 192415108
                                                                                  0-RING
                                                                                  from £1.28
                                                                                  from £1.28
                                                                                  # 011
                                                                                  MPN: 186402028
                                                                                  CLAMP
                                                                                  from £1.58
                                                                                  from £1.58
                                                                                  # 012
                                                                                  MPN: 318410080
                                                                                  WASHER
                                                                                  # 014
                                                                                  MPN: 138411080
                                                                                  SCREW
                                                                                  # 015
                                                                                  MPN: 397850612
                                                                                  OIL RETURN BUNDY PIPE
                                                                                  from £31.89
                                                                                  from £31.89
                                                                                  # 016
                                                                                  MPN: 397850631
                                                                                  SLEEVE
                                                                                  from £5.75
                                                                                  from £5.75
                                                                                  # 017
                                                                                  MPN: 397850632
                                                                                  SLEEVE
                                                                                  from £0.72
                                                                                  from £0.72
                                                                                  # 018
                                                                                  MPN: 317832381
                                                                                  GASKET
                                                                                  # 019
                                                                                  MPN: 317832380
                                                                                  UNION SCREW
                                                                                  from £9.25
                                                                                  from £9.25
                                                                                  # 020
                                                                                  MPN: 317832377
                                                                                  UNION SCREW
                                                                                  from £3.71
                                                                                  from £3.71
                                                                                  # 021
                                                                                  MPN: 317832378
                                                                                  COPPER GASKET
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 022
                                                                                  MPN: 317832135
                                                                                  EYELET UNION
                                                                                  from £19.30
                                                                                  from £19.30
                                                                                  # 023
                                                                                  MPN: 397850125
                                                                                  POWER STEERING ASSY, LH STEERING
                                                                                  not as spare part - use part number: 397850225
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 023
                                                                                  MPN: 397850225
                                                                                  LHD POWER STEERING BOX (POST. MOD.)
                                                                                  Replaces 397850125
                                                                                  from £744.03
                                                                                  from £744.03
                                                                                  This part replaces part number 397850125
                                                                                  # 023
                                                                                  MPN: 397870255
                                                                                  RHD POWER STEERING BOX
                                                                                  Replaces 397850125
                                                                                  # 024
                                                                                  MPN: 31783212
                                                                                  UNION PIPE
                                                                                  # 030
                                                                                  MPN: 317632104
                                                                                  PUMP WITH PULLEY
                                                                                  # 032
                                                                                  MPN: 317837372
                                                                                  POWER STEERING BELT
                                                                                  from £12.50
                                                                                  from £12.50
                                                                                  # 033
                                                                                  MPN: 327853207
                                                                                  OIL DELIVERY PIPE, LH STEERING
                                                                                  from £130.23
                                                                                  from £130.23
                                                                                  This part replaces part number 317832139
                                                                                  # 034
                                                                                  MPN: 397850636
                                                                                  SLEEVE
                                                                                  from £1.73
                                                                                  from £1.73
                                                                                  # 035
                                                                                  MPN: 397850200
                                                                                  BULKHEAD
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 036
                                                                                  MPN: 128350060
                                                                                  SELF LOCKING NUT
                                                                                  # 038
                                                                                  MPN: 108006012
                                                                                  SCREW
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 039
                                                                                  MPN: 310232040
                                                                                  KIT FOR PIPE AMD UNION REPLACEMENT
                                                                                  from £32.54
                                                                                  from £32.54
                                                                                  # 040
                                                                                  MPN: 390250080
                                                                                  KIT FOR BELLOWS AND CLAMP REPLACEMENT
                                                                                  from £129.66
                                                                                  from £129.66
                                                                                  This part replaces part number 320250033
                                                                                  # 041
                                                                                  MPN: 320250034
                                                                                  Track Rod Ends
                                                                                  Track rod ends only
                                                                                  from £316.04
                                                                                  from £316.04
                                                                                  # 042
                                                                                  MPN: 318720333
                                                                                  CORRUGATED PIPE
                                                                                  (ORDER IN 10 METERS OR MULTIPLE)
                                                                                  from £5.25
                                                                                  from £5.25
                                                                                  # 043
                                                                                  MPN: 135900064
                                                                                  FLAT WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 044
                                                                                  MPN: 397850609
                                                                                  UNION
                                                                                  from £1.80
                                                                                  from £1.80
                                                                                  # 045
                                                                                  MPN: 397850608
                                                                                  GASKET
                                                                                  from £1.10
                                                                                  from £1.10
                                                                                  # 046
                                                                                  MPN: 128300060
                                                                                  NUT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 047
                                                                                  MPN: 315520375
                                                                                  RING
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 048
                                                                                  MPN: 397850624
                                                                                  SPACER
                                                                                  from £2.45
                                                                                  from £2.45
                                                                                  # 050
                                                                                  MPN: 397850618
                                                                                  OIL COOLER
                                                                                  from £133.68
                                                                                  from £133.68
