maserati ghibli 2.8 (non abs) rear wheels, hubs, brakes & axle shafts parts diagram

020 - Rear Wheels, Hubs, Brakes & Axle Shafts

Maserati Ghibli 2.8 (Non ABS) Rear Wheels, Hubs, Brakes & Axle Shafts Parts Diagram

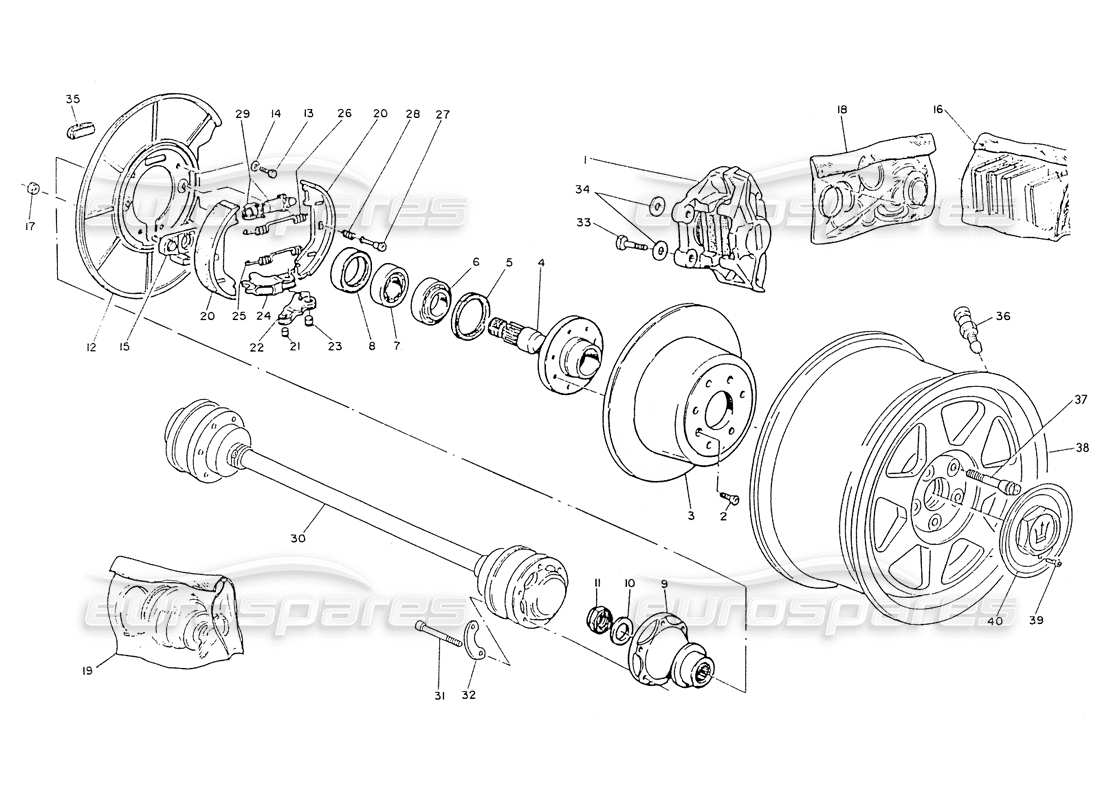

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 317254111
                                                                        REAR CALIPER LH ASSY
                                                                        from £153.36
                                                                        from £153.36
                                                                        This part replaces part number 317220111
                                                                        # 001
                                                                        MPN: 317254112
                                                                        REAR CALIPER RH ASSY
                                                                        from £102.24
                                                                        from £102.24
                                                                        This part replaces part number 317220112
                                                                        # 002
                                                                        MPN: 108506020
                                                                        SCREW
                                                                        from £1.11
                                                                        from £1.11
                                                                        # 003
                                                                        MPN: 347201351
                                                                        REAR BRAKE DISC
                                                                        from £480.87
                                                                        from £480.87
                                                                        # 004
                                                                        MPN: 347200126
                                                                        REAR WHEEL HUB
                                                                        from £242.08
                                                                        from £242.08
                                                                        # 005
                                                                        MPN: 317220347
                                                                        SEALING RING
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 006
                                                                        MPN: 317220343
                                                                        OUTER BEARING
                                                                        from £37.84
                                                                        from £37.84
                                                                        # 007
                                                                        MPN: 327256345
                                                                        INNER BEARING
                                                                        from £108.44
                                                                        from £108.44
                                                                        # 008
                                                                        MPN: 317220346
                                                                        SEALING RING
                                                                        from £2.31
                                                                        from £2.31
                                                                        # 009
                                                                        MPN: 347200355
                                                                        SLEEVE
                                                                        from £63.97
                                                                        from £63.97
                                                                        # 010
                                                                        MPN: 327256354
                                                                        SHIM RING
                                                                        from £1.63
                                                                        from £1.63
                                                                        This part replaces part number 317220348
                                                                        # 011
                                                                        MPN: 317220340
                                                                        SELFLOCKING RING NUT
                                                                        Supersession
                                                                        Supersession
                                                                        # 012
                                                                        MPN: 317020111
                                                                        LH REAR DUST COVER
                                                                        from £73.18
                                                                        from £73.18
                                                                        # 012
                                                                        MPN: 317020112
                                                                        RH REAR DUST COVER
                                                                        from £73.18
                                                                        from £73.18
                                                                        # 014
                                                                        MPN: 135600060
                                                                        SPRING WASHER
                                                                        from £0.78
                                                                        from £0.78
                                                                        # 015
                                                                        MPN: 318020115
                                                                        HAND BRAKE CABLE BRACKET
                                                                        from £18.08
                                                                        from £18.08
                                                                        # 016
                                                                        MPN: 310254042
                                                                        REAR BRAKE PAD, SET
                                                                        USE 108134
                                                                        from £120.42
                                                                        from £120.42
                                                                        This part replaces part number 327256131
                                                                        # 017
                                                                        MPN: 128350080
                                                                        SELF LOCKING NUT
                                                                        Supersession
                                                                        Supersession
                                                                        # 018
                                                                        MPN: 310220032
                                                                        REAR BRAKE CALIPER OVERHAUL SET
                                                                        each caliper
                                                                        from £102.96
                                                                        from £102.96
                                                                        # 019
                                                                        MPN: 310220036
                                                                        BELLOWS AND CLIP SET FOR JOINTS
                                                                        from £94.80
                                                                        from £94.80
                                                                        # 020
                                                                        MPN: 328060111
                                                                        HAND BRAKE SHOE ASSEMBLY
                                                                        from £31.83
                                                                        from £31.83
                                                                        This part replaces part number 318020111
                                                                        # 021
                                                                        MPN: 318020332
                                                                        PIN
                                                                        from £1.39
                                                                        from £1.39
                                                                        # 022
                                                                        MPN: 318020330
                                                                        CONTROL LEVER
                                                                        from £25.64
                                                                        from £25.64
                                                                        # 023
                                                                        MPN: 318020333
                                                                        PIN
                                                                        from £1.85
                                                                        from £1.85
                                                                        # 024
                                                                        MPN: 318020331
                                                                        SHOE
                                                                        from £32.48
                                                                        from £32.48
                                                                        # 025
                                                                        MPN: 318020334
                                                                        LOWER DRAW SPRING
                                                                        from £19.80
                                                                        from £19.80
                                                                        # 026
                                                                        MPN: 318020335
                                                                        UPPER DRAW SPRING
                                                                        from £1.41
                                                                        from £1.41
                                                                        # 027
                                                                        MPN: 318020336
                                                                        PIN
                                                                        from £4.76
                                                                        from £4.76
                                                                        # 028
                                                                        MPN: 318020337
                                                                        SPRING
                                                                        from £0.57
                                                                        from £0.57
                                                                        # 029
                                                                        MPN: 318020113
                                                                        ADJUSTING DEVICE FOR HAND BRAKE
                                                                        from £6.81
                                                                        from £6.81
                                                                        # 030
                                                                        MPN: 366000105
                                                                        DRIVE SHAFT ASSEMBLY
                                                                        from £493.19
                                                                        from £493.19
                                                                        # 032
                                                                        MPN: 316020310
                                                                        PLATE
                                                                        from £1.93
                                                                        from £1.93
                                                                        # 033
                                                                        MPN: 101210030
                                                                        SCREW
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 034
                                                                        MPN: 14496601
                                                                        FLAT WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 035
                                                                        MPN: 317020328
                                                                        PLUG
                                                                        from £0.70
                                                                        from £0.70
                                                                        # 036
                                                                        MPN: 317250104
                                                                        TUBELESS VALVE
                                                                        from £5.43
                                                                        from £5.43
                                                                        This part replaces part number 317220103
                                                                        # 037
                                                                        MPN: 327253306
                                                                        BOLT OZ
                                                                        In alternative
                                                                        from £25.09
                                                                        from £25.09
                                                                        # 037
                                                                        MPN: 327253308
                                                                        BOLT FOMB
                                                                        In alternative
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 038

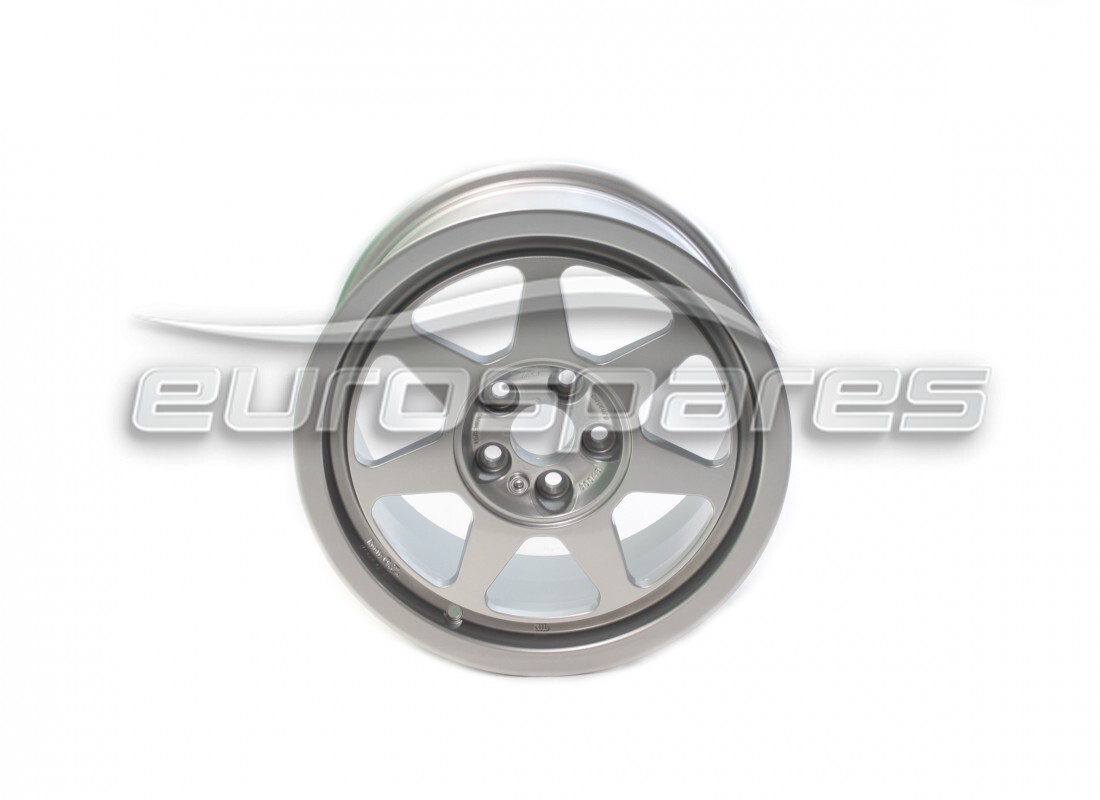

                                                                        MPN: 317252337
                                                                        REAR WHEEL 8 X 16 ET 32
                                                                        from £194.32
                                                                        from £194.32

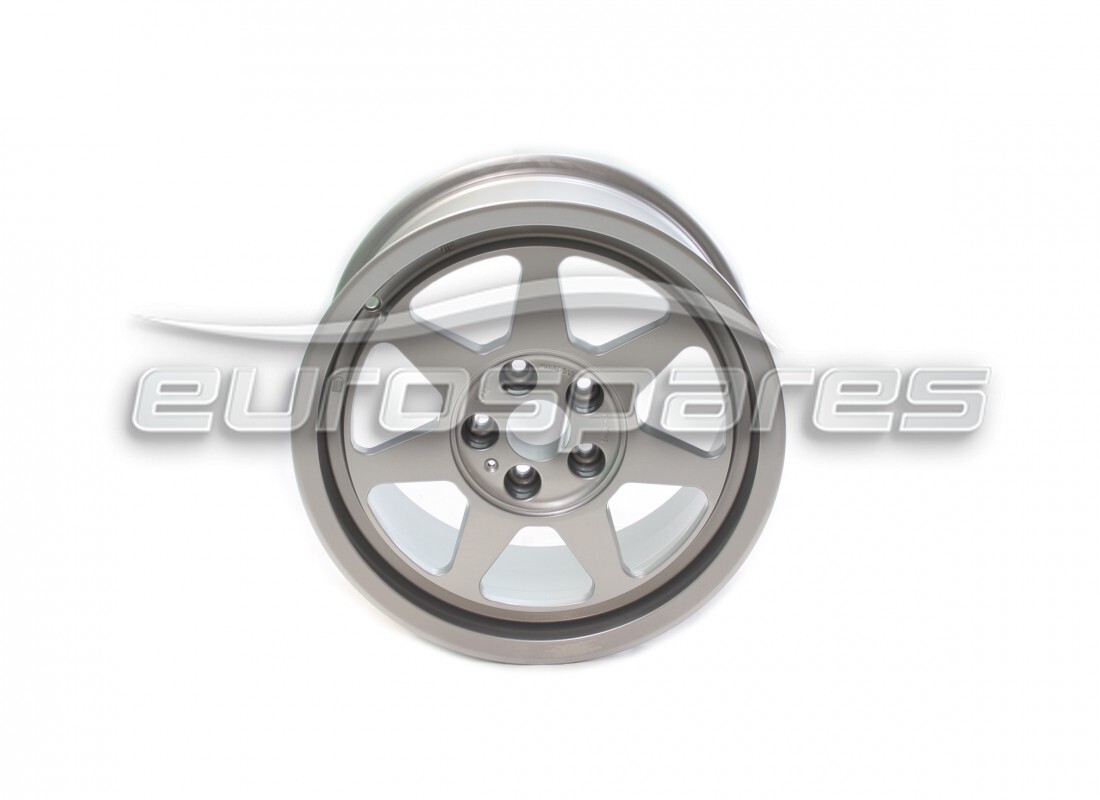

                                                                        # 038
                                                                        MPN: 317252338
                                                                        REAR WHEEL 8 X 16
                                                                        from £682.50
                                                                        from £682.50
                                                                        # 039
                                                                        MPN: 327253363
                                                                        ANTI -THEFT SCREW 0Z
                                                                        In alternative
                                                                        from £34.38
                                                                        from £34.38
                                                                        # 039
                                                                        MPN: 327253365
                                                                        ANT I -THEFT SCREW FOMB
                                                                        In alternative
                                                                        from £3.71
                                                                        from £3.71
                                                                        # 040
                                                                        MPN: 327253361
                                                                        HUB COVER FOMB
                                                                        In alternative
                                                                        from £204.75
                                                                        from £204.75
                                                                        # 040
                                                                        MPN: 397250362
                                                                        COVER OZ
                                                                        from £15.90
                                                                        from £15.90
