maserati ghibli 2.8 (non abs) bodywork-f. side roof p. doors hoods doors hoods parts diagram

027 - Bodywork-F. Side Roof P. Doors Hoods Doors Hoods

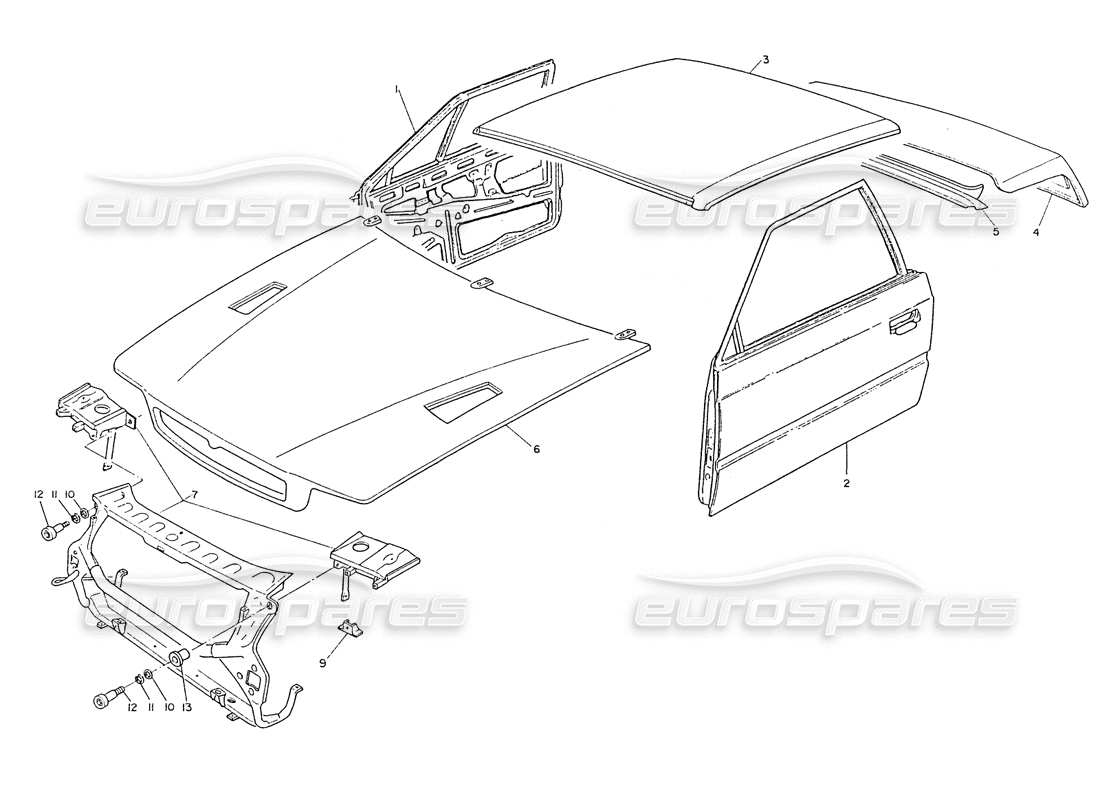

Maserati Ghibli 2.8 (Non ABS) Bodywork-F. Side Roof P. Doors Hoods Doors Hoods Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 364500104

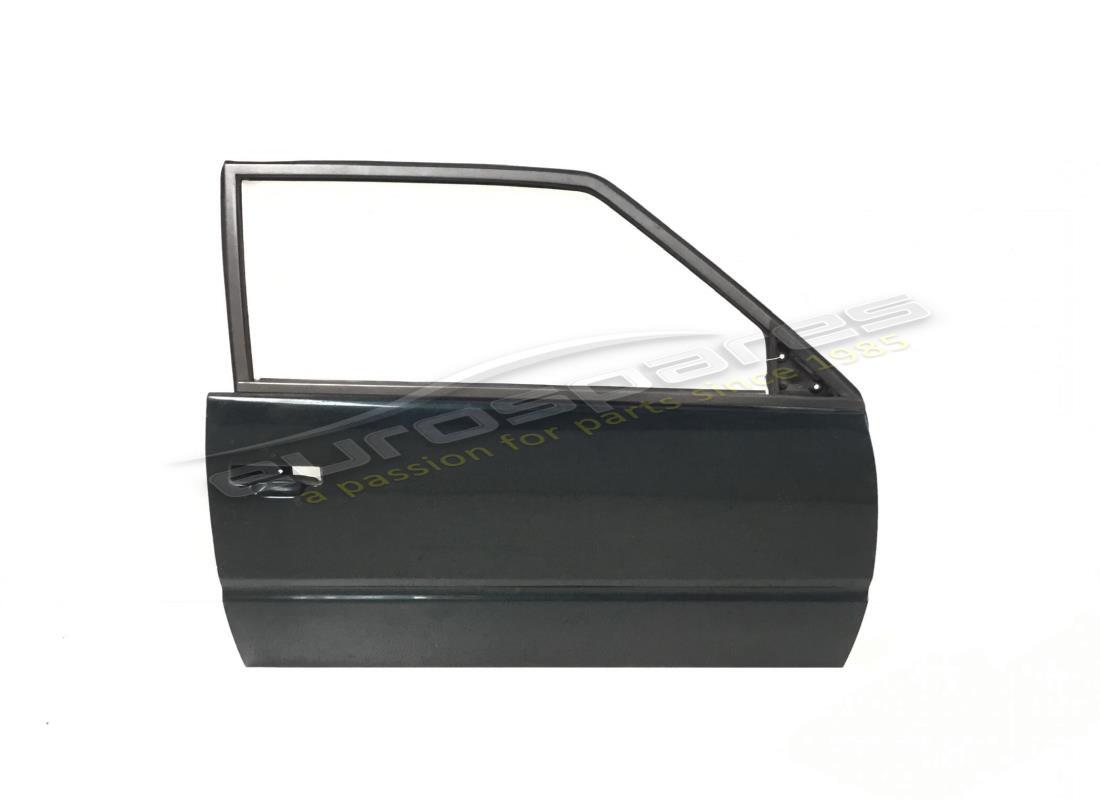

                          RH SIDE DOOR ASSY
                          from £410.38
                          from £410.38
                          # 002
                          MPN: 364500103

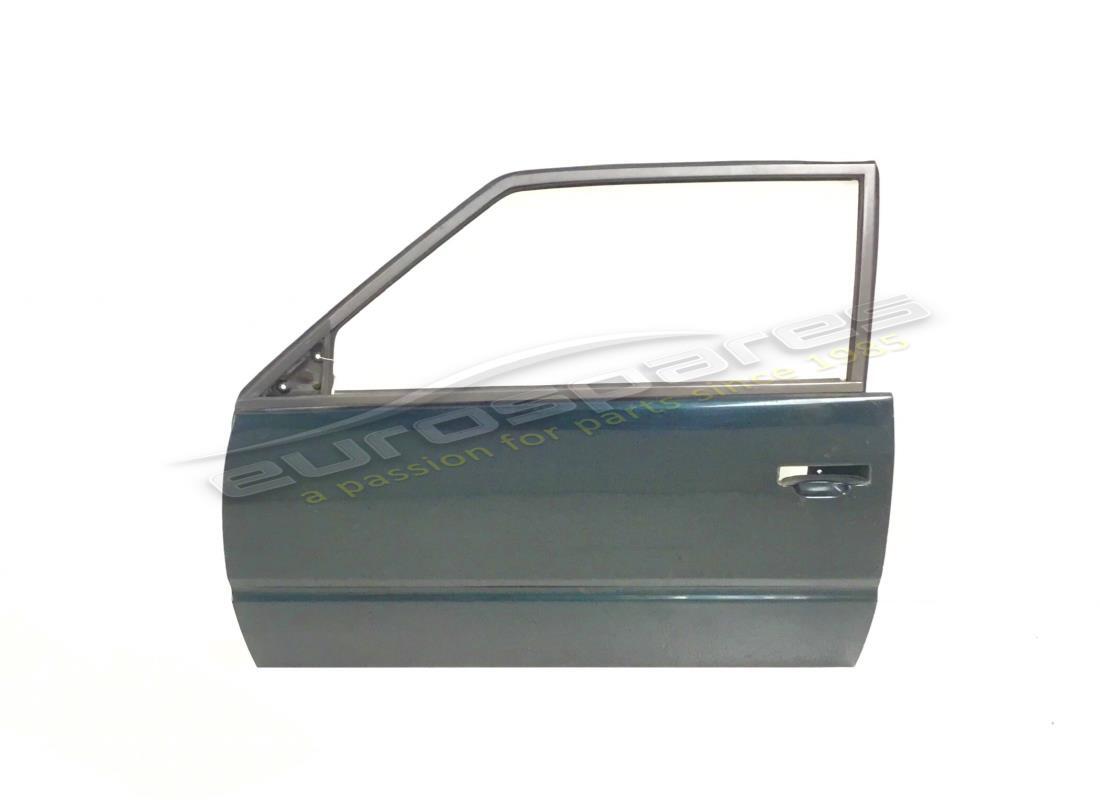

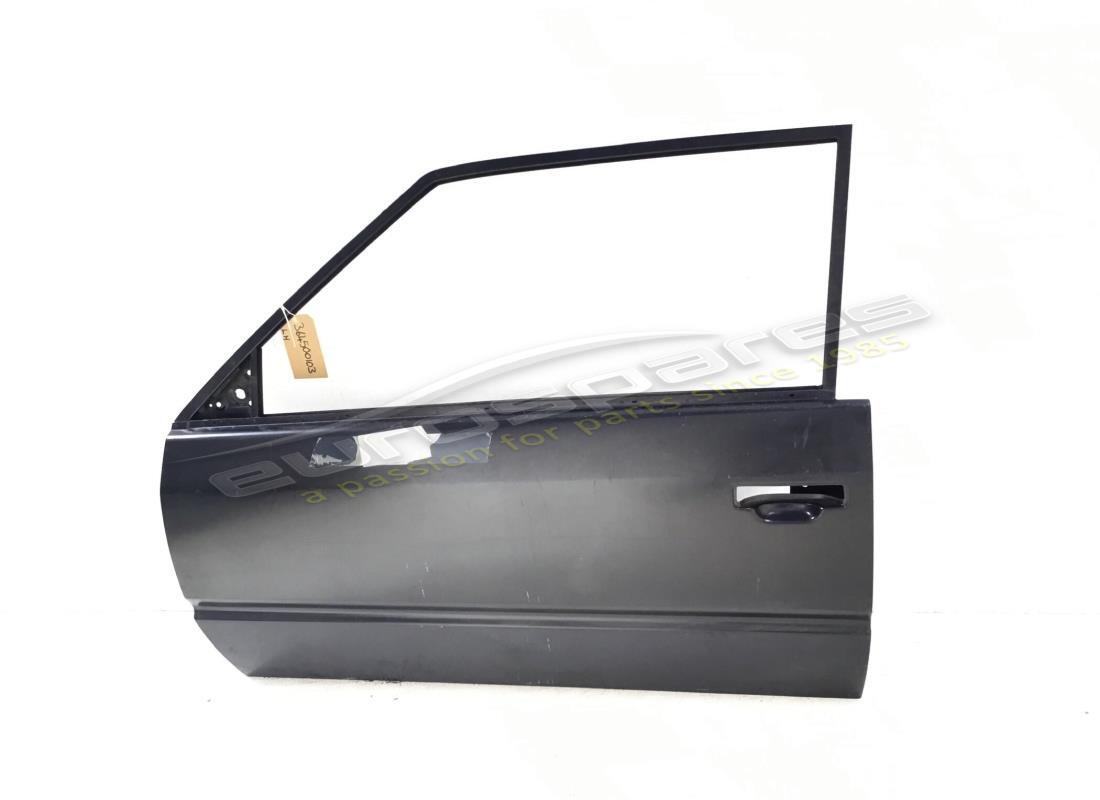

                          LH SIDE DOOR ASSY
                          from £525.00
                          from £525.00
                          # 003
                          MPN: 362500465
                          ROOF PANEL OUTER COVERING
                          from £290.45
                          from £290.45
                          # 004
                          MPN: 364700100
                          TRUNK DOOR
                          from £410.30
                          from £410.30
                          # 005
                          MPN: 362500458
                          REAR WINDOW LOWER CROSS MEMBER
                          from £56.01
                          from £56.01
                          # 006
                          MPN: 364300100
                          HOOD ASSY
                          from £3,659.27
                          from £3,659.27
                          # 007
                          MPN: 361100200
                          MOVABLE FRONTAL ASSY
                          from £858.98
                          from £858.98
                          # 009
                          MPN: 361300562
                          HEADLIGHTS SUPPORT
                          from £1.55
                          from £1.55
                          # 010
                          MPN: 14496601
                          FLAT WASHER
                          Supersession
                          Supersession
                          # 012
                          MPN: 391350577
                          SCREW
                          from £4.87
                          from £4.87
                          # 013
                          MPN: 391350576
                          BUSH
                          from £17.69
                          from £17.69
