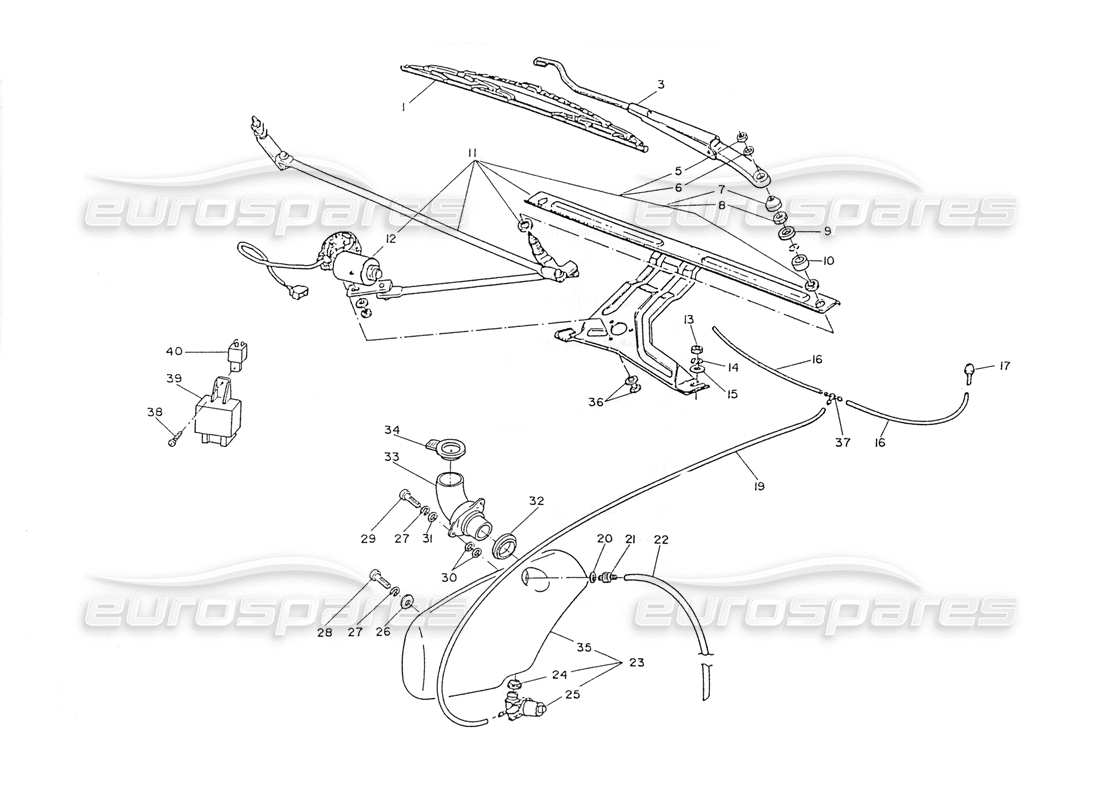

036 - Windshield Washer and Wiper
Maserati Ghibli 2.8 (Non ABS) Windshield Washer and Wiper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 313352158
BLADE WITH SPOILER
from £54.52
from £54.52
This part replaces part number 323356128 - and 2 more. Click to view details
# 003
MPN: 393350117
ARM
from £78.49
from £78.49
# 005
MPN: 125300080
NUT
# 006
MPN: 138410080
SPRING WASHER
# 007
MPN: 313320405
CUP
from £1.05
from £1.05
# 008
MPN: 313320402
NUT
from £1.64
from £1.64
# 009
MPN: 393350329
EXTERNAL SPACER
from £1.64
from £1.64
# 010
MPN: 313352327
INTERNAL SPACER
# 011
MPN: 363300100
WINDSHIELD WIPER ASSY
from £183.85
from £183.85
# 012
MPN: 313320201
GEARHOTOR
from £97.42
from £97.42
# 013
MPN: 125100080
NUT
from £0.86
from £0.86
# 014
MPN: 135300084
SPRING WASHER
# 015
MPN: 169020508
WASHER
# 016
MPN: 398150312
PIPING
Supersession
Supersession
# 017
MPN: 53811109
NOZZLE
# 019
MPN: 398150313
PIPING
Supersession
Supersession
# 020
MPN: 330874000
GROMMET
from £1.09
from £1.09
# 021
MPN: 312230461
UNION
from £0.99
from £0.99
# 022
MPN: 54812330
PIPE
# 023
MPN: 398150132
TANK WITH PUMP
from £45.05
from £45.05
This part replaces part number 398150024
# 024
MPN: 30331302
GASKET
from £0.70
from £0.70
# 025
MPN: 373300183
WINDSHIELD WASHER PUMP
from £15.21
from £15.21
This part replaces part number 330907620
# 026
MPN: 135900064
FLAT WASHER
from £0.47
from £0.47
# 027
MPN: 135300064
SPRING WASHER
# 028
MPN: 112806016
SCREW
# 029
MPN: 112806020
SCREW
# 030
MPN: 398150324
SHIM
from £1.56
from £1.56
# 031
MPN: 13500053
WASHER
# 032
MPN: 398150328
GASKET
from £23.14
from £23.14
# 033
MPN: 398150192
PIPE UNION
from £4.17
from £4.17
This part replaces part number 398150329
# 034
MPN: 398150327
PLUG
from £1.09
from £1.09
# 035
MPN: 398150132
Tank
from £45.05
from £45.05
This part replaces part number 398150024
# 036
MPN: 313320401
SCREW AND WASHER
# 037
MPN: 30811310
T-UNION
from £0.79
from £0.79
# 038
MPN: 119148130
SCREW
from £0.86
from £0.86
# 039
MPN: 313320116
TGE TIMER
from £26.25
from £26.25
# 040
MPN: 313320115
INTERMITTENCE
Supersession
Supersession
