maserati ghibli 2.8 (non abs) headlamps parts diagram

037 - Headlamps

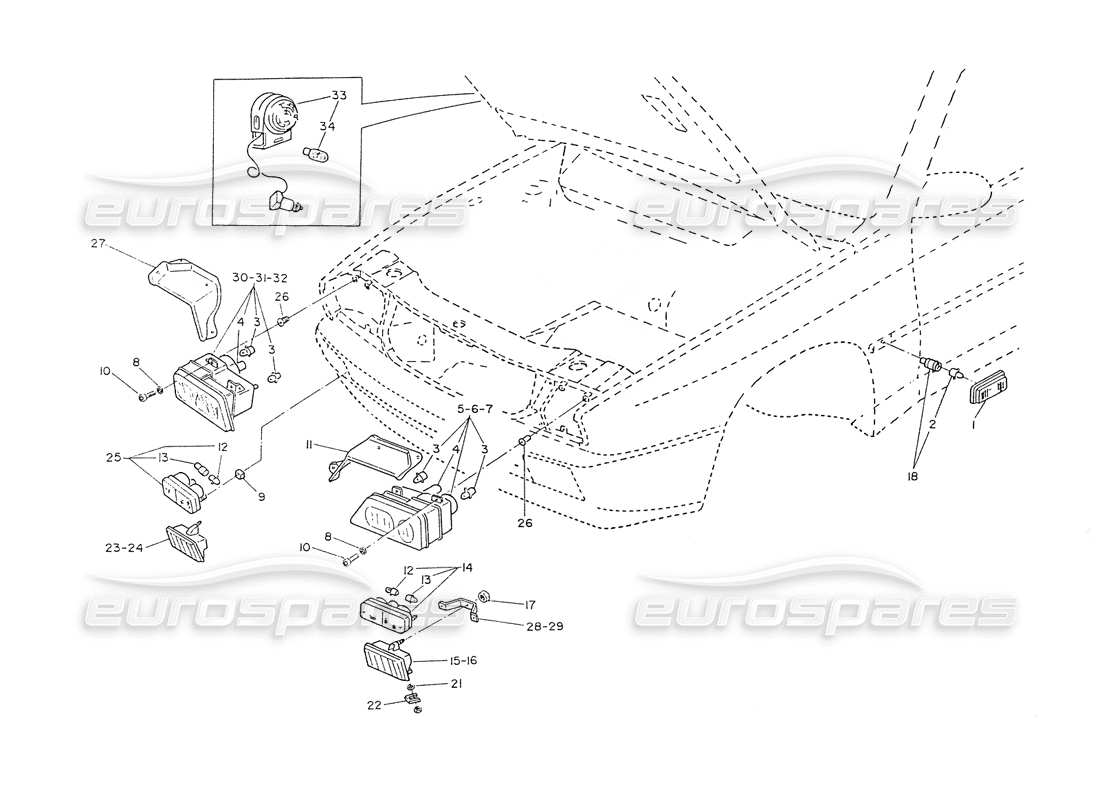

Maserati Ghibli 2.8 (Non ABS) Headlamps Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 373180127
                                                      SIDE TURN INDICATOR
                                                      from £48.29
                                                      from £48.29
                                                      This part replaces part number 363100127
                                                      # 002
                                                      MPN: 87760005
                                                      12V 5W BULB
                                                      from £0.64
                                                      from £0.64
                                                      # 003
                                                      MPN: 87770055
                                                      12V 55W IODINE BULB
                                                      from £3.99
                                                      from £3.99
                                                      # 004
                                                      MPN: 393150109
                                                      ACTUATOR
                                                      from £12.89
                                                      from £12.89
                                                      # 005
                                                      MPN: 363100101
                                                      LH FRONT LAMP, ASSY
                                                      from £1,438.18
                                                      from £1,438.18
                                                      # 006
                                                      MPN: 363100103
                                                      LH FRONT LAMP, ASSY
                                                      ONLY FRANCE
                                                      # 007
                                                      MPN: 363100105
                                                      LH FRONT LAMP, ASSY
                                                      ONLY JAPAN AND RH STEERING
                                                      from £305.29
                                                      from £305.29
                                                      # 009
                                                      MPN: 316353355
                                                      NUT
                                                      from £1.08
                                                      from £1.08
                                                      # 011
                                                      MPN: 980000311
                                                      LH UPPER COVER LAMP
                                                      from £24.80
                                                      from £24.80
                                                      This part replaces part number 368300301
                                                      # 012
                                                      MPN: 87540500
                                                      12V 5W BULB
                                                      from £0.52
                                                      from £0.52
                                                      # 013
                                                      MPN: 87720021
                                                      12V 21W BULB
                                                      from £1.00
                                                      from £1.00
                                                      # 014
                                                      MPN: 393150133
                                                      LH FRONT POSITION LIGHT
                                                      from £113.64
                                                      from £113.64
                                                      This part replaces part number 313120131 which we have in stock - and 1 more. Click to view details
                                                      # 015
                                                      MPN: 363100115
                                                      LH FOG LIGHT
                                                      from £275.16
                                                      from £275.16
                                                      This part replaces part number 363100121
                                                      # 016
                                                      MPN: 363100121
                                                      LH FOG LIGHT
                                                      ONLY FRANCE
                                                      Supersession
                                                      Supersession
                                                      # 018
                                                      MPN: 313152128
                                                      BULB HOLDER
                                                      from £1.08
                                                      from £1.08
                                                      # 021
                                                      MPN: 136110055
                                                      FLAT WASHER
                                                      from £0.78
                                                      from £0.78
                                                      # 022
                                                      MPN: 363100330
                                                      PLATE
                                                      from £1.08
                                                      from £1.08
                                                      # 023
                                                      MPN: 363100114
                                                      RH FOG LIGHT
                                                      from £69.89
                                                      from £69.89
                                                      This part replaces part number 363100122
                                                      # 024
                                                      MPN: 363100122
                                                      RH FOG LIGHT
                                                      ONLY FRANCE
                                                      Supersession
                                                      Supersession
                                                      # 025
                                                      MPN: 393150132
                                                      RH FRONT TURN INDICATOR
                                                      from £55.94
                                                      from £55.94
                                                      This part replaces part number 313120130 which we have in stock - and 1 more. Click to view details
                                                      # 026
                                                      MPN: 398350315
                                                      BUSHING
                                                      from £26.51
                                                      from £26.51
                                                      # 027
                                                      MPN: 368300302
                                                      RH UPPER COVER LAMP
                                                      Supersession
                                                      Supersession
                                                      # 028
                                                      MPN: 366300366
                                                      RH BRAKET
                                                      from £2.31
                                                      from £2.31
                                                      # 029
                                                      MPN: 366300365
                                                      LH BRAKET
                                                      from £2.31
                                                      from £2.31
                                                      # 030
                                                      MPN: 363100100
                                                      RH HEADLAMPS, ASSY
                                                      from £1,679.20
                                                      from £1,679.20
                                                      # 031
                                                      MPN: 363100102
                                                      RH HEADLAMPS, ASSY
                                                      ONLY FRANCE
                                                      # 032
                                                      MPN: 363100104
                                                      RH HEADLAMPS, ASSY
                                                      ONLY JAPAN AND RH STEERING
                                                      from £2,094.75
                                                      from £2,094.75
                                                      # 033
                                                      MPN: 313121112
                                                      UTILITY LAMP
                                                      from £22.92
                                                      from £22.92
