039 - Central and Engine Compartment Wiring

Maserati Ghibli 2.8 (Non ABS) Central and Engine Compartment Wiring Parts Diagram

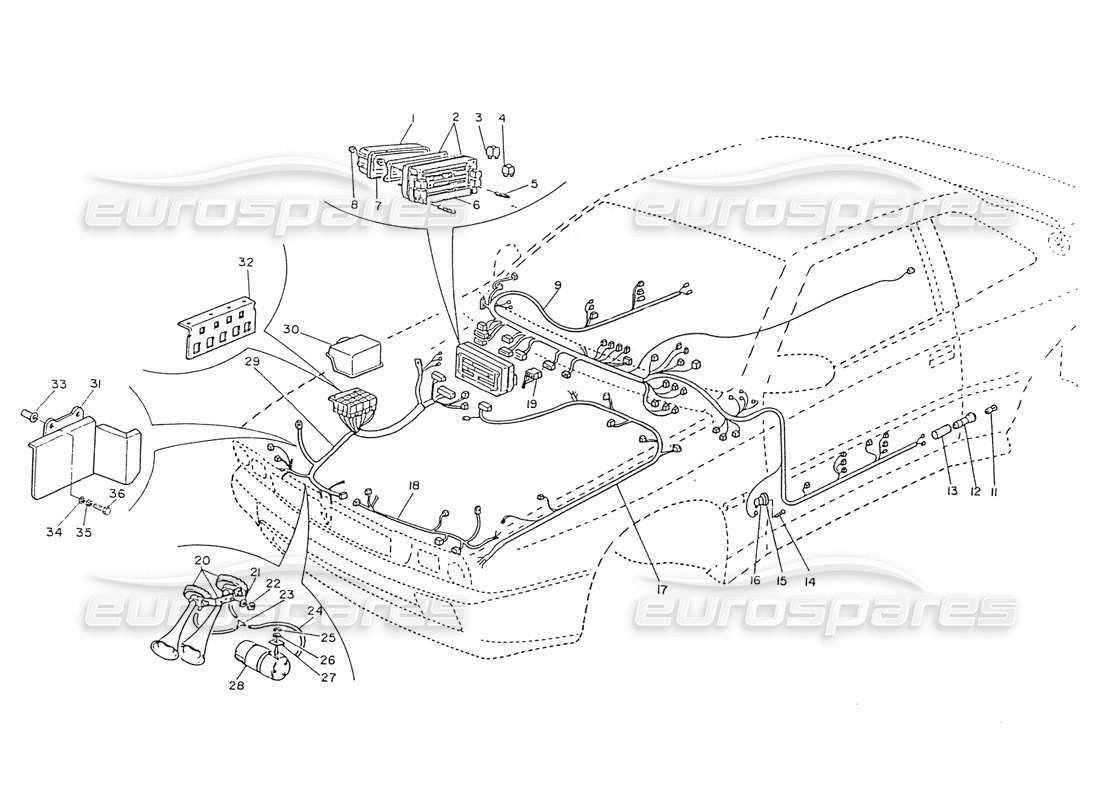

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 000
                                                              MPN: FHAN210
                                                              ELECTRIC SYSTEM EQUIPMENT CATALOGUE
                                                              from £250.00
                                                              from £250.00
                                                              ELECTRIC SYSTEM EQUIPMENT CATALOGUE Genuine Maserati Part - New In stock
                                                              # 001
                                                              MPN: 313052336
                                                              CONTROL UNIT GUARD
                                                              from £0.74
                                                              from £0.74
                                                              Maserati PART 313052336 Genuine Maserati Part - New (to order)
                                                              # 002
                                                              MPN: 313020104
                                                              CONTROL UNIT ASSY
                                                              from £269.48
                                                              from £269.48
                                                              FUSE BOX Genuine Maserati Part - New (to order)
                                                              # 003
                                                              MPN: 313351139
                                                              RELAY
                                                              from £3.18
                                                              from £3.18
                                                              This part replaces part number 30331137
                                                              RESISTOR RELE' 0151000 Genuine Maserati Part - New (to order)
                                                              # 004
                                                              MPN: 313320136
                                                              DIODE BRIDGE
                                                              from £10.34
                                                              from £10.34
                                                              DIODES BRIDGE Genuine Maserati Part - New (to order)
                                                              # 005
                                                              MPN: 87200005
                                                              5A FUSE
                                                              Not supplied
                                                              FUSE Genuine Maserati Part - New (to order)
                                                              # 005
                                                              MPN: 87200008
                                                              8A FUSE
                                                              Not supplied
                                                              FUSE Genuine Maserati Part - New (to order)
                                                              # 005
                                                              MPN: 87200016
                                                              16A FUSE
                                                              Not supplied
                                                              FUSE Genuine Maserati Part - New (to order)
                                                              # 006
                                                              MPN: 313020339
                                                              FUSE BOX COVER
                                                              from £0.72
                                                              from £0.72
                                                              FUSE BOX COVER Genuine Maserati Part - New (to order)
                                                              # 009
                                                              MPN: 363000107
                                                              MAIN CABLE HARNESS
                                                              from £202.50
                                                              from £202.50
                                                              CENTRAL WIRING Genuine Maserati Part - New (to order)
                                                              # 011
                                                              MPN: 187520300
                                                              12V 3W BULB
                                                              from £0.56
                                                              from £0.56
                                                              BULB 12V - 3W Genuine Maserati Part - New (to order)
                                                              # 012
                                                              MPN: 30311113
                                                              DOOR LIGHT
                                                              from £53.92
                                                              from £53.92
                                                              DOOR INDICATOR LIGHT Genuine Maserati Part - New (to order)
                                                              # 013
                                                              MPN: 53311300
                                                              CUP
                                                              from £0.74
                                                              from £0.74
                                                              DOOR LIGHT CAP Genuine Maserati Part - New In stock
                                                              # 014
                                                              MPN: 119535130
                                                              SCREW
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 015
                                                              MPN: 53211305
                                                              GASKET
                                                              from £0.74
                                                              from £0.74
                                                              DOOR LIGHTS GASKET Genuine Maserati Part - New (to order)
                                                              # 017
                                                              MPN: 393050142
                                                              LH ENGINE COMPARTMENT HARNESS
                                                              from £118.70
                                                              from £118.70
                                                              This part replaces part number 313052142
                                                              WIRING Genuine Maserati Part - New In stock
                                                              # 018
                                                              MPN: 393050145
                                                              FRONT ENGINE COMPARTMENT HARNESS
                                                              from £93.07
                                                              from £93.07
                                                              Maserati PART 393050145 Genuine Maserati Part - New (to order)
                                                              # 019
                                                              MPN: 393050128
                                                              DIODE CONNECTOR
                                                              from £2.33
                                                              from £2.33
                                                              CONNECTOR Genuine Maserati Part - New (to order)
                                                              # 020
                                                              MPN: 313320006
                                                              HORN ASSY
                                                              from £30.62
                                                              from £30.62
                                                              HORNS Genuine Maserati Part - New (to order)
                                                              # 023
                                                              MPN: 313320324
                                                              T -UN I ON
                                                              from £7.68
                                                              from £7.68
                                                              THREE WAY UNION Genuine Maserati Part - New (to order)
                                                              # 024
                                                              MPN: 314020316
                                                              PIPE
                                                              from £1.94
                                                              from £1.94
                                                              This part replaces part number 313320325
                                                              BREATHER PIPE Genuine Maserati Part - New (to order)
                                                              # 025
                                                              MPN: 125100080
                                                              NUT
                                                              from £0.86
                                                              from £0.86
                                                              DADO Genuine Maserati Part - New (to order)
                                                              # 028
                                                              MPN: 313320146
                                                              COMPRESSOR
                                                              from £60.50
                                                              from £60.50
                                                              HORN COMPRESSOR Genuine Maserati Part - New (to order)
                                                              # 029
                                                              MPN: 393050143
                                                              RH ENGINE COMPARTMENT HARNESS
                                                              from £185.09
                                                              from £185.09
                                                              WIRING Genuine Maserati Part - New (to order)
                                                              # 030
                                                              MPN: 313052337
                                                              ENGINE COMPARTMENT RELAY PROTECTION
                                                              from £9.54
                                                              from £9.54
                                                              RELAY COVER Genuine Maserati Part - New (to order)
                                                              # 031
                                                              MPN: 363005502
                                                              DEFLECTOR
                                                              Valid for 05
                                                              from £29.56
                                                              from £29.56
                                                              WIRING COVER Genuine Maserati Part - New (to order)
                                                              # 032
                                                              MPN: 313052303
                                                              RELAY SUPPORT BRACKET
                                                              from £5.49
                                                              from £5.49
                                                              PLATE Genuine Maserati Part - New (to order)
                                                              # 033
                                                              MPN: 315220303
                                                              BUSHING
                                                              Valid for 05
                                                              from £0.74
                                                              from £0.74
                                                              BUSHING Genuine Maserati Part - New (to order)
                                                              # 034
                                                              MPN: 312220411
                                                              WASHER
                                                              Valid for 05
                                                              from £0.71
                                                              from £0.71
                                                              ROSETTA Genuine Maserati Part - New (to order)
                                                              # 035
                                                              MPN: 138410060
                                                              SPRING WASHER
                                                              Valid for 05
                                                              Maserati PART 138410060 Genuine Maserati Part - New (to order)
                                                              # 036
                                                              MPN: 311053394
                                                              SCREW
                                                              Valid for 05
                                                              Supersession
                                                              Supersession
                                                              Genuine Maserati Part (no longer available to order)
