040 - Battery Power Supply Wiring

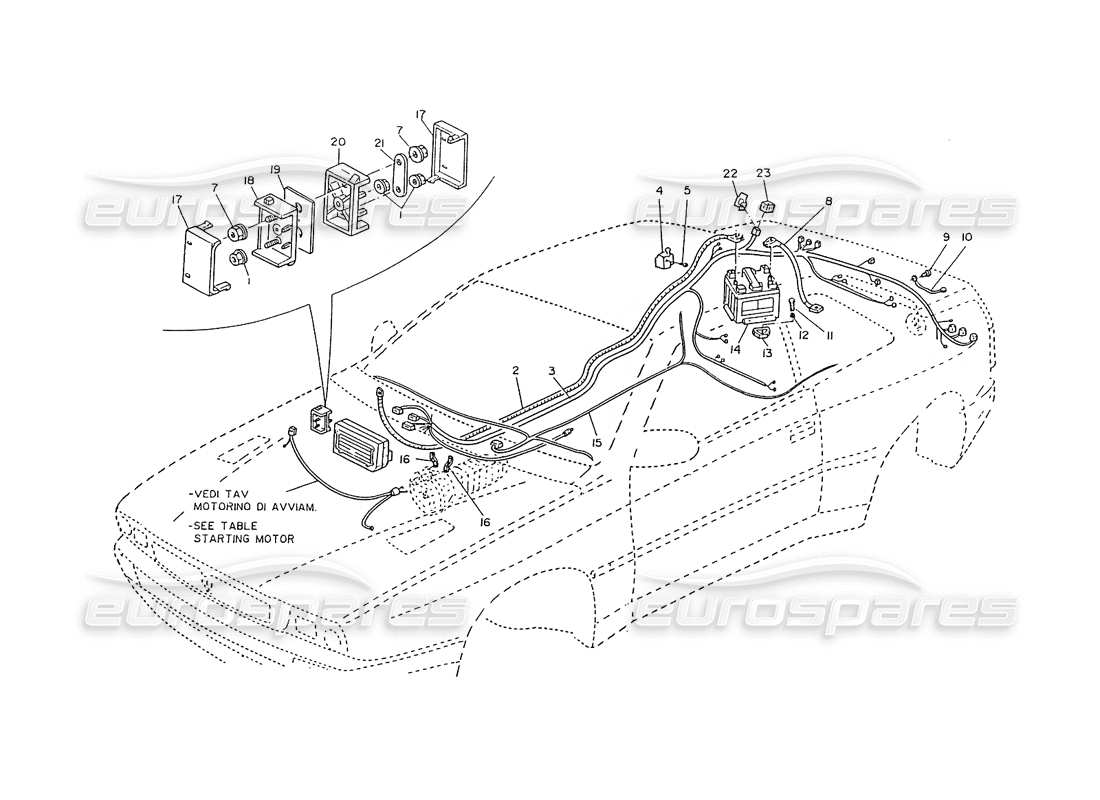

Maserati Ghibli 2.8 (Non ABS) Battery Power Supply Wiring Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 122600060
NUT
# 002
MPN: 393050149
BATTERY POSITIVE CABLE - BRANCH POINT
from £102.02
from £102.02
# 003
MPN: 363000108
REAR CABLE ASSY
from £103.70
from £103.70
# 004
MPN: 313330135
INERTIA SWITCH
from £16.09
from £16.09
# 005
MPN: 119129095
SCREU
# 007
MPN: 122600080
NUT
# 008
MPN: 393050150
BATTERY NEGATIVE CABLE
from £31.02
from £31.02
# 009
MPN: 119142130
SCREU
# 010
MPN: 53301127
REAR WINDOW GROUND CABLE
from £0.95
from £0.95
# 011
MPN: 101208020
SCREW
# 012
MPN: 169020508
WASHER
# 013
MPN: 553001314
BATTERY FIXING PLATE
from £1.66
from £1.66
# 014
MPN: 393050101
BATTERY (NOT SUPPLIED)
TECHNICAL DATA: GEMALA BATTERY TP. 020 - ULTRA START BATTERY
# 015
MPN: 313030118
LOUDSPEAKER CABLE ASSY
from £25.13
from £25.13
# 016
MPN: 393050151
ENGINE-CHASSIS GROUND CABLE
from £4.02
from £4.02
# 017
MPN: 393050340
COVER
Supersession
Supersession
# 018
MPN: 393050342
Terminal Board
from £10.70
from £10.70
# 019
MPN: 393050343
GASKET
from £1.66
from £1.66
# 020
MPN: 393050341
INSULATOR
from £2.24
from £2.24
# 021
MPN: 393050344
CONNECTING PAD
from £1.90
from £1.90
# 022
MPN: 563300305
HEATED REAR WINDOW RELAY HOLDER
# 023
MPN: 313320134
RELAY
from £19.39
from £19.39
This part replaces part number 184101
