maserati ghibli 2.8 (non abs) dashboard and console ventilation parts diagram

052 - Dashboard and Console Ventilation

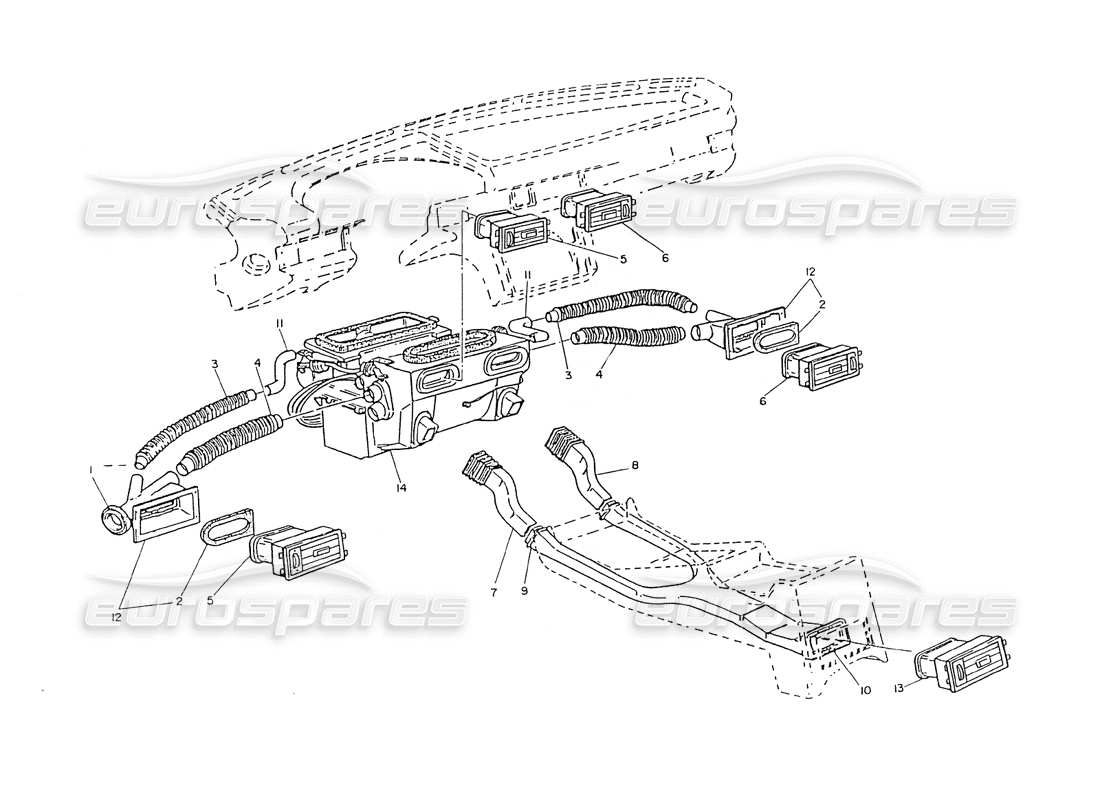

Maserati Ghibli 2.8 (Non ABS) Dashboard and Console Ventilation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 315520318
                              EXTERNAL GASKET
                              from £0.69
                              from £0.69
                              # 002
                              MPN: 365500317
                              INTERNAL GASKET
                              from £0.69
                              from £0.69
                              # 003
                              MPN: 315520314
                              DOOR VENTILATION DUCT
                              from £34.73
                              from £34.73
                              # 004
                              MPN: 315520316
                              DASHBOARD VENTILATION DUCT
                              from £41.01
                              from £41.01
                              # 005
                              MPN: 365500013
                              DASHBOARD LH DIFFUSER
                              from £25.21
                              from £25.21
                              # 006
                              MPN: 365500014
                              DASHBOARD RH DIFFUSER
                              from £25.21
                              from £25.21
                              # 007
                              MPN: 315520325
                              LH CONSOLE FRONT DUCT
                              from £2.81
                              from £2.81
                              # 008
                              MPN: 315520326
                              RH CONSOLE FRONT DUCT
                              from £2.81
                              from £2.81
                              # 009
                              MPN: 315520113
                              CONSOLE REAR COMPLETE DUCT
                              from £12.48
                              from £12.48
                              # 010
                              MPN: 315520329
                              GASKET
                              from £0.69
                              from £0.69
                              # 011
                              MPN: 315520313
                              LH SIDE DOOR VENTILATION SLEEVE
                              from £2.97
                              from £2.97
                              # 012
                              MPN: 365500110
                              AIR DUCT
                              Supersession
                              Supersession
                              This part replaces part number 315520110
                              # 013
                              MPN: 315553020
                              CONSOLE DIFFUSER (ANTRACITE COLOR)
                              from £11.22
                              from £11.22
                              This part replaces part number 315550020
                              # 014
                              MPN: 315551005
                              AIR CONDITIONER ASSY
                              from £907.97
                              from £907.97
