005 - Crankshaft, Pistons, Conrods & Flywheel

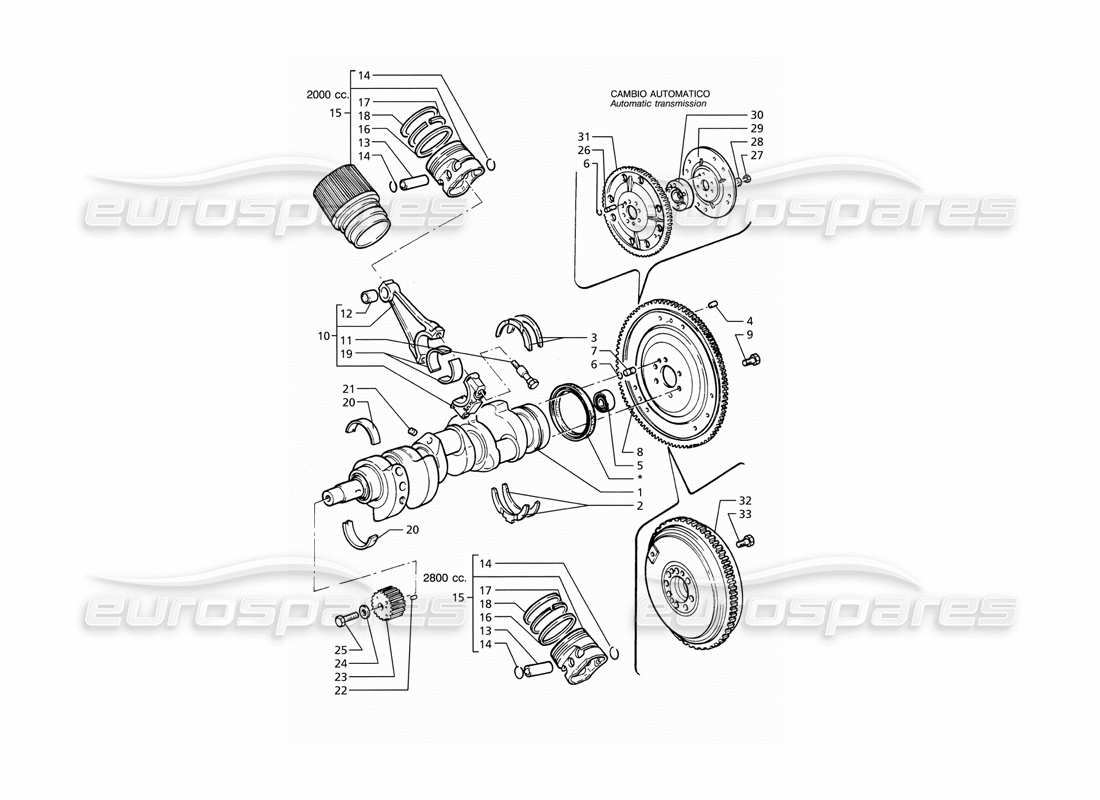

Maserati Ghibli 2.8 GT (Variante) Crankshaft, Pistons, Conrods & Flywheel Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 571028900
crankshaft
Supersession
Supersession
# 001
MPN: 580988000
crankshaft
from £3,566.70
from £3,566.70
This part replaces part number 571028900
# 001
MPN: 581020000
crankshaft
from £2,833.38
from £2,833.38
This part replaces part number 581988000 - and 1 more. Click to view details
# 001
MPN: 581020000
crankshaft
from £2,833.38
from £2,833.38
This part replaces part number 581988000 - and 1 more. Click to view details
# 001
MPN: 581988000
crankshaft
Supersession
Supersession
This part replaces part number 340802002 - and 1 more. Click to view details
# 001
MPN: 581988010
crankshaft
Supersession
Supersession
This part replaces part number 477028901 - and 1 more. Click to view details
# 002
MPN: 479021701
LOWER SHIM RING, CL. A
Supersession
Supersession
This part replaces part number 479021700
# 003
MPN: 479021301
UPPER SHIM RING, CL. A
Supersession
Supersession
This part replaces part number 479021300
# 004
MPN: 311453303
DOWEL
- Valid for 28, 13 and 04 version
from £10.02
from £10.02
# 005
MPN: 178003015
BEARING
- Valid for 28, 13 and 04 version
from £15.50
from £15.50
# 006
MPN: 310820302
RETAINING RING
from £1.08
from £1.08
# 007
MPN: 310820301
DOWEL
from £2.85
from £2.85
# 008
MPN: 477022800
FLYWHEEL ASSY
- Valid for M.T. version (8 holes)
from £200.26
from £200.26
# 008
MPN: 571022800
FLYWHEEL ASSY
- Valid for 28, 13 and 04 version - 6 SECURING HOLES
from £989.85
from £989.85
This part replaces part number 321420100 - and 3 more. Click to view details
# 009
MPN: 311420300
BOLT
- Valid for 28, 13 and 04 version - Order the quantity according to the flywheel
Supersession
Supersession
# 010
MPN: 340800004
CONNECTING ROD, ASSY
- Valid for 27, 28, 14, 13 version - In the order, specify the weight (coloured sticker) - and the class stamped on conn. rod cap
# 010
MPN: 390850004
CONNECTING ROD, ASSY
- Valid for 04 version - In the order, specify the weight (coloured sticker) - and the class stamped on conn. rod cap
# 011
-
SCREW
- Not supplied separately
# 012
-
BUSHING
- Not supplied separately
# 013
-
GUDGEON PIN
- Not supplied separately
# 014
MPN: 311220312
RETAINING RING
- Valid for 04 version
from £0.69
from £0.69
This part replaces part number 311225312
# 014
MPN: 341200312
RETAINING RING
- Valid for 27, 28, 14, 13 version
# 015
MPN: 571014900
LINER AND PISTON ASSY
- Valid for 04 version
from £920.57
from £920.57
This part replaces part number 496014900
# 015
MPN: 588025300
PISTON WITH RINGS
from £233.23
from £233.23
This part replaces part number 477025302
# 016
MPN: 477022600
OIL SCRAPER
from £30.52
from £30.52
This part replaces part number 341200327
# 016
MPN: 571022600
OIL SCRAPER
- Valid for 04 version
from £10.51
from £10.51
This part replaces part number 311220102 - and 1 more. Click to view details
# 017
MPN: 341200328
LOWER PISTON RING
- Valid for 27, 28, 14, 13 version
Supersession
Supersession
# 017
MPN: 490022501
LOWER PISTON RING
- Valid for 04 version
from £10.05
from £10.05
# 018
MPN: 477022401
UPPER PISTON RING
- Valid for 27, 28, 14, 13 version
from £5.09
from £5.09
This part replaces part number 477022400
# 018
MPN: 571022400
UPPER PISTON RING
- Valid for 04 version
from £11.82
from £11.82
This part replaces part number 490022401
# 019
MPN: 452020901
STANDARD BIG END BEARING
- Valid for 27, 28, 14, 13 version
Supersession
Supersession
# 019
MPN: 452020901/A
STANDARD CON ROD BEARING (COMPLETE SET)
from £953.40
from £953.40
This part replaces part number 452020901
# 019
MPN: 479020900
STANDARD BIG END BEARING
- Valid for 2.0 M.T. version
from £82.80
from £82.80
# 020
MPN: 390450327
STANDARD MAIN BEARING (PRE MOD.)
- Valid for 04 version - Up to engine no. 850506 (2000 cc.) - Up to engine no. 400827 (2800 cc.)
from £36.64
from £36.64
This part replaces part number 310420327
# 020
MPN: 479020201
STANDARD MAIN BEARING (POST MOD)
- Valid for 27, 28, 14, 13 and 04 version - From engine no. 850507 (2000 cc.) - From engine no. 400828 (2800 cc.)
from £76.77
from £76.77
This part replaces part number 479020301
# 021
MPN: 310820300
CRANKSHAFT OIL PLUG
# 022
MPN: 311020324
DOWEL
use : 470023100
from £1.79
from £1.79
# 023
MPN: 475024900
TOOTHED PULLEY
from £21.56
from £21.56
This part replaces part number 465024901
# 024
MPN: 311220308
WASHER
# 025
MPN: 100812045
SCREW
# 026
MPN: 314632302
DOWEL
- Valid for 27, 14 version
from £0.69
from £0.69
# 027
MPN: 314655301
SCREW
- Valid for 27, 14 version - Order the quantity according to the flywheel
Supersession
Supersession
# 028
MPN: 135200120
WASHER
- Valid for 28, 13 version
Supersession
Supersession
# 029
MPN: 314655307
DRIVING DISC 6 SECURING HOLES (PRE MOD.)
- Valid for 27, 14 version
from £103.33
from £103.33
# 029
MPN: 574100201
DRIVING DISC 8 SECURING HOLES (POST MOD.)
- Valid for 27, 14 version
from £66.47
from £66.47
# 030
MPN: 314655300
FLANGE 6 SECURING HOLES (PRE MOD.)
- Valid for 27, 14 version
# 030
MPN: 574100600
FLANGE 8 SECURING HOLES (POST MOD.)
- Valid for 27, 14 version
from £53.26
from £53.26
# 031
MPN: 314655104
CROWN GEAR 6 SECURING HOLES (PRE MOD.)
- Valid for 27, 14 version
# 031
MPN: 574100500
CROWN GEAR 8 SECURING HOLES (POST MOD.)
- Valid for 27, 14 version
from £172.37
from £172.37
# 032
MPN: 324662340
FLYWHEEL ASSY
- Valid for 28, 13 version
from £1,137.68
from £1,137.68
# 033
MPN: 324662342
SCREW
- Valid for 28, 13 version
from £3.63
from £3.63
