maserati ghibli 2.8 gt (variante) timing with hydraulic tightener parts diagram

008.2 - timing with hydraulic tightener

Maserati Ghibli 2.8 GT (Variante) Timing With Hydraulic Tightener Parts Diagram

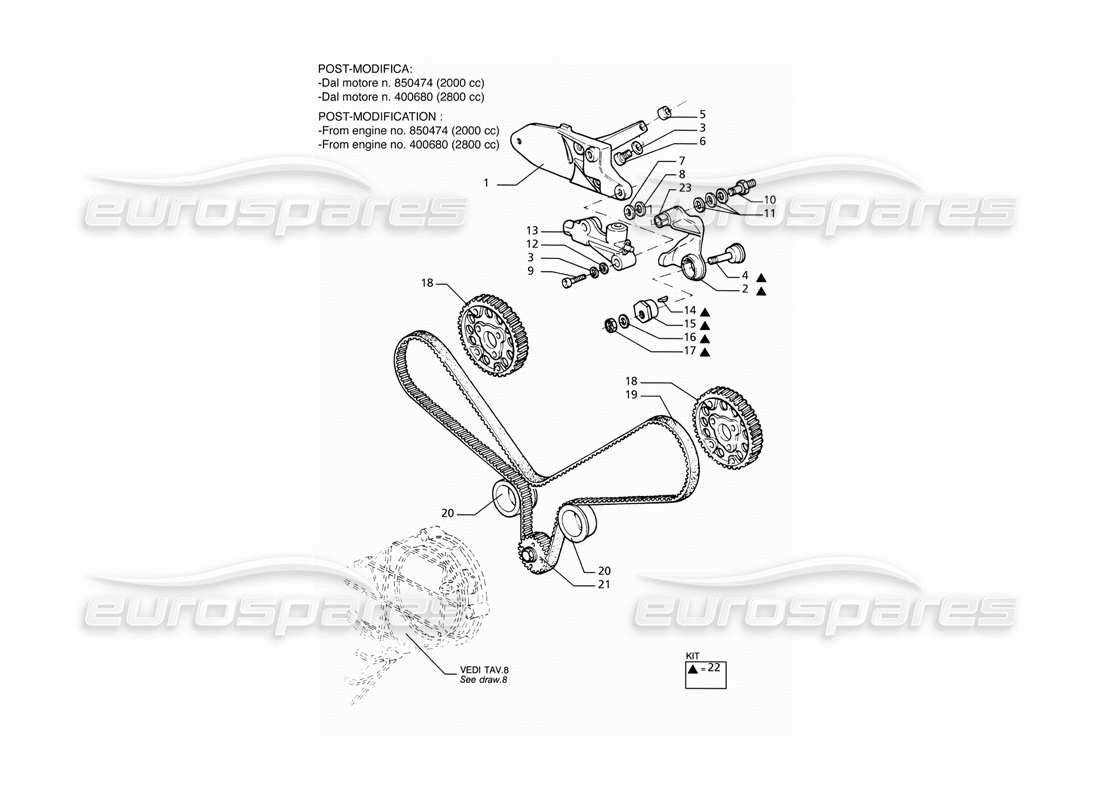

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 495483200
                                              TENSIONER SUPPORT
                                              from £256.57
                                              from £256.57
                                              # 002
                                              MPN: 495038100
                                              TIGHTENING PULLEY
                                              Supersession
                                              Supersession
                                              This part replaces part number 495949600
                                              # 003
                                              MPN: 138410080
                                              RETAINING WASHER
                                              # 004
                                              MPN: 311053353
                                              TIGHTENING PULLEY PIN
                                              # 008
                                              MPN: 96789
                                              WASHER (2 MM THICK)
                                              from £1.63
                                              from £1.63
                                              This part replaces part number 135200120
                                              # 009
                                              MPN: 14306424
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 14306421
                                              # 010
                                              MPN: 470037600
                                              TIGHTENING PULLEY PIN
                                              from £41.64
                                              from £41.64
                                              This part replaces part number 311020343
                                              # 011
                                              MPN: 311020352
                                              WASHER (0.30 MM THICK)
                                              from £1.08
                                              from £1.08
                                              # 012
                                              MPN: 87234
                                              WASHER
                                              Supersession
                                              Supersession
                                              # 013
                                              MPN: 495034800
                                              TENSIONER
                                              from £187.13
                                              from £187.13
                                              # 014
                                              MPN: 311053460
                                              TAB
                                              from £0.70
                                              from £0.70
                                              # 015
                                              MPN: 475033200
                                              ECCENTRIC
                                              from £6.81
                                              from £6.81
                                              # 016
                                              MPN: 452008901
                                              WASHER
                                              from £2.17
                                              from £2.17
                                              # 017
                                              MPN: 326656321
                                              SELF LOCKING NUT
                                              from £3.56
                                              from £3.56
                                              # 018
                                              MPN: 580035400
                                              PULLEY
                                              from £55.94
                                              from £55.94
                                              # 019
                                              MPN: 97776
                                              TIMING BELT
                                              (valid for 2.0 & 2.8 engine)
                                              from £29.95
                                              from £29.95
                                              This part replaces part number 311053349
                                              # 019
                                              MPN: MTBK002
                                              TIMING BELT KIT
                                              BELT KIT CONSISTS OF x1 97776 - X2 311020107.
                                              # 020
                                              MPN: 311020350
                                              BEARING COVER
                                              from £56.75
                                              from £56.75
                                              # 021
                                              MPN: 475024900
                                              CRANKSHAFT PULLEY
                                              from £32.34
                                              from £32.34
                                              This part replaces part number 465024901
                                              # 022
                                              MPN: 495949600
                                              TIGHTENING PULLEY ASSY
                                              Supersession
                                              Supersession
                                              # 023
                                              MPN: 470037700
                                              BUSH
                                              from £9.25
                                              from £9.25
                                              This part replaces part number 311020336
                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
