maserati ghibli 2.8 gt (variante) oil pump and water pump parts diagram

009 - oil pump and water pump

Maserati Ghibli 2.8 GT (Variante) Oil Pump and Water Pump Parts Diagram

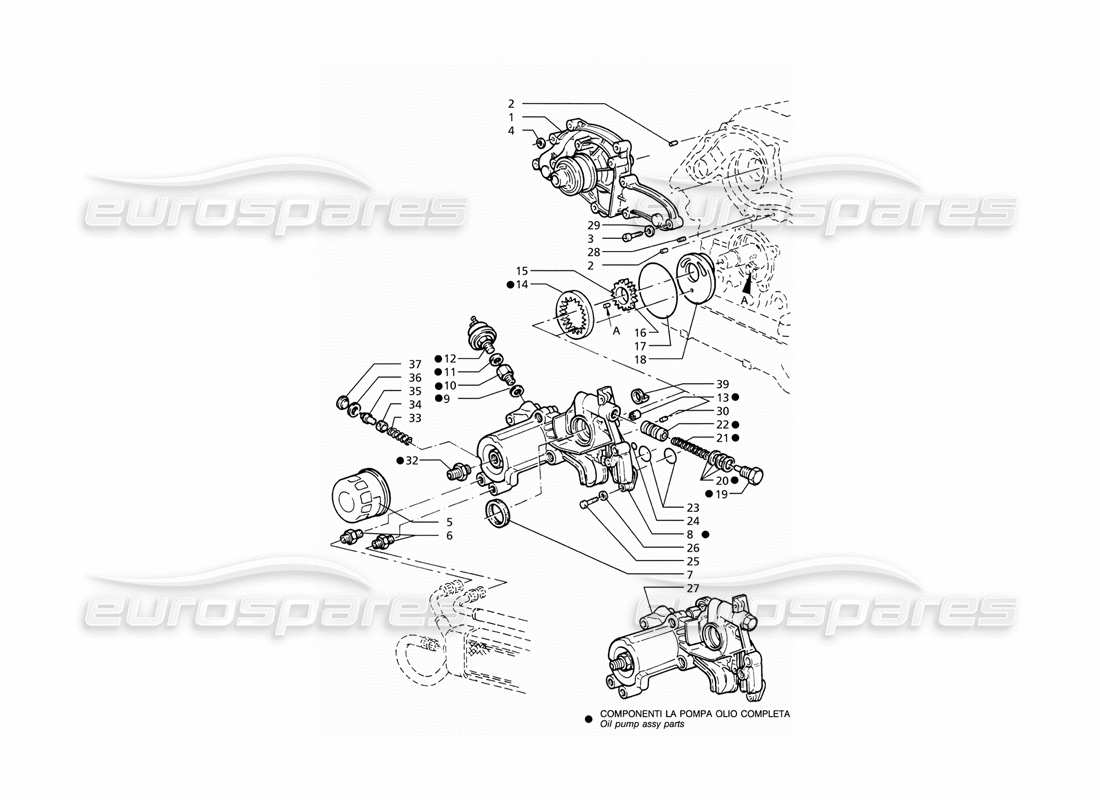

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 470045900
                                                                          WATER PUMP + GASKET
                                                                          from £309.75
                                                                          from £309.75
                                                                          This part replaces part number 314020012
                                                                          # 002
                                                                          MPN: 314020329
                                                                          CENTERING ROLLER
                                                                          from £1.93
                                                                          from £1.93
                                                                          # 004
                                                                          MPN: 138410060
                                                                          RETAINING WASHER
                                                                          # 005
                                                                          MPN: 470040900
                                                                          OIL FILTER
                                                                          from £42.50
                                                                          from £42.50
                                                                          # 006
                                                                          MPN: 362802306
                                                                          NIPPLE
                                                                          from £10.97
                                                                          from £10.97
                                                                          # 007
                                                                          MPN: 311020368
                                                                          SEAL RING
                                                                          from £8.25
                                                                          from £8.25
                                                                          This part replaces part number 190400351
                                                                          # 008
                                                                          MPN: 571040101
                                                                          OIL CONTROL UNIT
                                                                          Supersession
                                                                          Supersession
                                                                          # 009
                                                                          MPN: 311820302
                                                                          GASKET
                                                                          from £2.35
                                                                          from £2.35
                                                                          # 010
                                                                          MPN: 311820303
                                                                          ADAPTER
                                                                          from £22.49
                                                                          from £22.49
                                                                          # 011
                                                                          MPN: 311820304
                                                                          GASKET
                                                                          from £1.55
                                                                          from £1.55
                                                                          # 012
                                                                          MPN: 313650105
                                                                          OIL PRESSURE SWITCH
                                                                          USE 313620105
                                                                          # 013
                                                                          MPN: 311820309
                                                                          DOWEL (12MM DIA)
                                                                          from £16.69
                                                                          from £16.69
                                                                          # 014
                                                                          MPN: 391850324
                                                                          DRIVEN GEAR (12 MM THICK)
                                                                          # 015
                                                                          MPN: 97054
                                                                          ROLLER
                                                                          from £0.70
                                                                          from £0.70
                                                                          # 016
                                                                          MPN: 391850323
                                                                          DRIVING GEAR (12 MM THICK)
                                                                          # 017
                                                                          MPN: 14465881
                                                                          SEAL RING
                                                                          from £4.64
                                                                          from £4.64
                                                                          # 018
                                                                          MPN: 571982100
                                                                          OIL PUMP COVER
                                                                          from £72.63
                                                                          from £72.63
                                                                          This part replaces part number 311820321
                                                                          # 020
                                                                          MPN: 311820317
                                                                          GASKET
                                                                          from £0.70
                                                                          from £0.70
                                                                          # 022
                                                                          MPN: 311820319
                                                                          OIL PRESSURE ADJUSTING VALVE
                                                                          from £12.19
                                                                          from £12.19
                                                                          # 023
                                                                          MPN: 14454181
                                                                          SEAL RING
                                                                          from £1.16
                                                                          from £1.16
                                                                          # 024
                                                                          MPN: 14452981
                                                                          SEAL RING
                                                                          from £0.79
                                                                          from £0.79
                                                                          # 026
                                                                          MPN: 138410080
                                                                          RETAINING WASHER
                                                                          # 027
                                                                          MPN: 580040000
                                                                          OIL PUMP, ASSY
                                                                          from £460.51
                                                                          from £460.51
                                                                          # 030
                                                                          MPN: 311820315
                                                                          CENTERING ROLLER, OIL PUMP (L = 10 MM)
                                                                          from £1.16
                                                                          from £1.16
                                                                          # 033
                                                                          MPN: 571044600
                                                                          SPRING
                                                                          from £1.41
                                                                          from £1.41
                                                                          # 034
                                                                          MPN: 571044200
                                                                          BULB VALVE
                                                                          from £6.13
                                                                          from £6.13
                                                                          # 035
                                                                          MPN: 571044100
                                                                          BULB
                                                                          from £13.60
                                                                          from £13.60
                                                                          # 036
                                                                          MPN: 571044500
                                                                          WASHER (0.30 MM THICK)
                                                                          from £1.93
                                                                          from £1.93
                                                                          # 037
                                                                          MPN: 571044400
                                                                          PLUG
                                                                          from £8.65
                                                                          from £8.65
                                                                          # 039
                                                                          MPN: 97730
                                                                          RETAINING WASHER
                                                                          from £4.09
                                                                          from £4.09
