022 - Evaporation Vapours Recovery System and Fuel Pipes

Maserati Ghibli 2.8 GT (Variante) Evaporation Vapours Recovery System and Fuel Pipes Parts Diagram

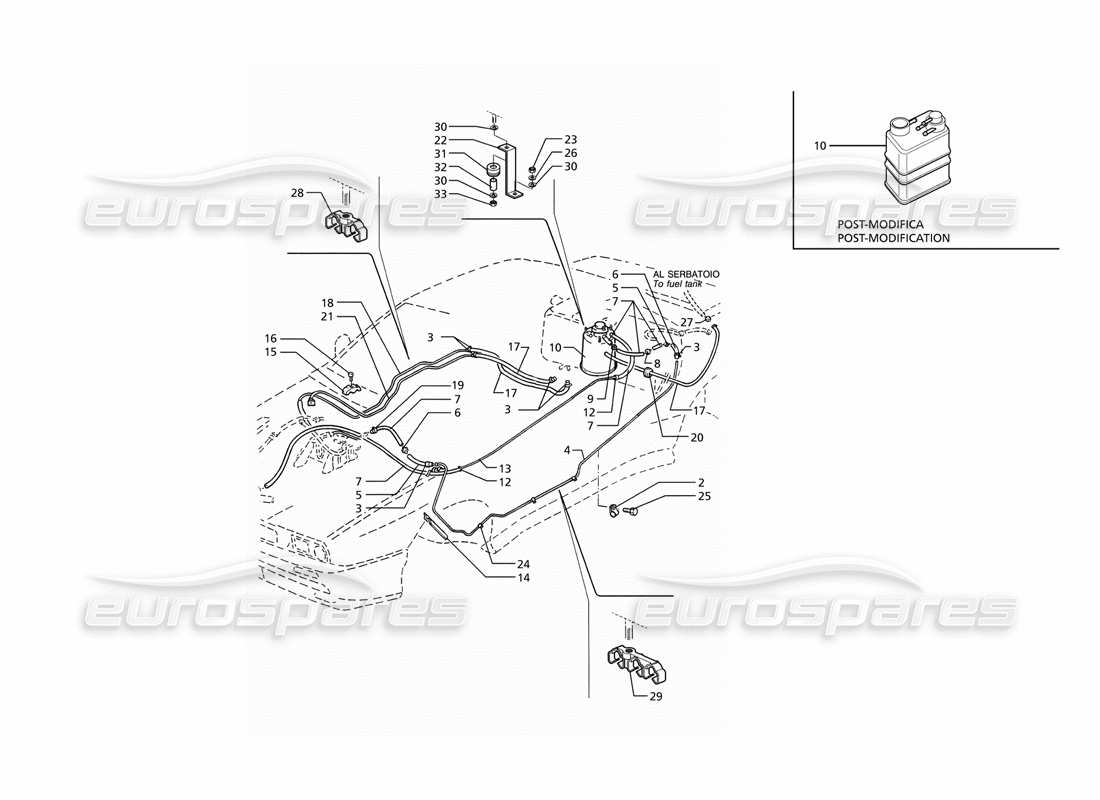

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 003
                                                      MPN: 559221343
                                                      CLAMP
                                                      Supersession
                                                      Supersession
                                                      # 004
                                                      MPN: 369203402
                                                      VACUUM PIPE
                                                      from £24.17
                                                      from £24.17
                                                      # 005
                                                      MPN: 19058089
                                                      PIPE
                                                      - Section in metres - order minimum amount of 1 m or multiples
                                                      from £9.66
                                                      from £9.66
                                                      This part replaces part number 379200379 - and 2 more. Click to view details
                                                      # 006
                                                      MPN: 95241
                                                      UNION
                                                      from £1.08
                                                      from £1.08
                                                      # 007
                                                      MPN: 300100803
                                                      SLEEVE
                                                      - Section in metres - order minimum amount of 1 m or multiples
                                                      from £54.95
                                                      from £54.95
                                                      This part replaces part number 318720329
                                                      # 009
                                                      MPN: 94338
                                                      UNION
                                                      Supersession
                                                      Supersession
                                                      # 010
                                                      MPN: 319237204
                                                      CARBON CANISTER
                                                      - Pre modification
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 319237028 - and 1 more. Click to view details
                                                      # 010
                                                      MPN: 379200204
                                                      CARBON CANISTER
                                                      - Post modification
                                                      from £49.54
                                                      from £49.54
                                                      This part replaces part number 319237204 - and 1 more. Click to view details
                                                      # 013
                                                      MPN: 399250352
                                                      BUNDY TUBE TO T.V.S. VALVE
                                                      from £6.76
                                                      from £6.76
                                                      # 014
                                                      MPN: 329250137
                                                      PROTECTION PLATE
                                                      from £4.64
                                                      from £4.64
                                                      # 015
                                                      MPN: 399250419
                                                      CLAMP
                                                      from £1.08
                                                      from £1.08
                                                      # 017
                                                      MPN: 97892
                                                      PIPE
                                                      - Section in metres - order minimum amount of 1 m or multiples of 1 m
                                                      from £65.58
                                                      from £65.58
                                                      This part replaces part number 19058189 - and 1 more. Click to view details
                                                      # 018
                                                      MPN: 369203128
                                                      FUEL DELIVERY PIPE
                                                      - Valid for 14, 13 and 04 version
                                                      from £33.32
                                                      from £33.32
                                                      # 018
                                                      MPN: 369226128
                                                      FUEL DELIVERY PIPE
                                                      - Valid for 27, 28 version
                                                      # 019
                                                      MPN: 312050310
                                                      CLAMP
                                                      from £1.08
                                                      from £1.08
                                                      # 020
                                                      MPN: 319220396
                                                      FAIRLEAD
                                                      from £1.55
                                                      from £1.55
                                                      # 021
                                                      MPN: 369203401
                                                      RH FUEL RETURN PIPE
                                                      from £24.58
                                                      from £24.58
                                                      # 022
                                                      MPN: 399250368
                                                      BRACKET
                                                      from £1.93
                                                      from £1.93
                                                      # 024
                                                      MPN: 312053382
                                                      CLAMP
                                                      from £0.70
                                                      from £0.70
                                                      # 025
                                                      MPN: 314320345
                                                      SCREW
                                                      from £41.64
                                                      from £41.64
                                                      # 027
                                                      MPN: 95942
                                                      SLEEVE
                                                      Supersession
                                                      Supersession
                                                      # 028
                                                      MPN: 379200408
                                                      PETROL PIPES SECUR. BLOCK, RH SIDE
                                                      from £1.08
                                                      from £1.08
                                                      # 029
                                                      MPN: 377400332
                                                      PETROL/BRAKES PIPES SECUR. BLOCK. RH SIDE
                                                      from £0.70
                                                      from £0.70
                                                      # 031
                                                      MPN: 315520375
                                                      VIBRATION DAMPER
                                                      Supersession
                                                      Supersession
                                                      # 032
                                                      MPN: 397850624
                                                      BUSHING
                                                      from £2.39
                                                      from £2.39
                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
