023 - FUEL TANK

Maserati Ghibli 2.8 GT (Variante) Fuel Tank Parts Diagram

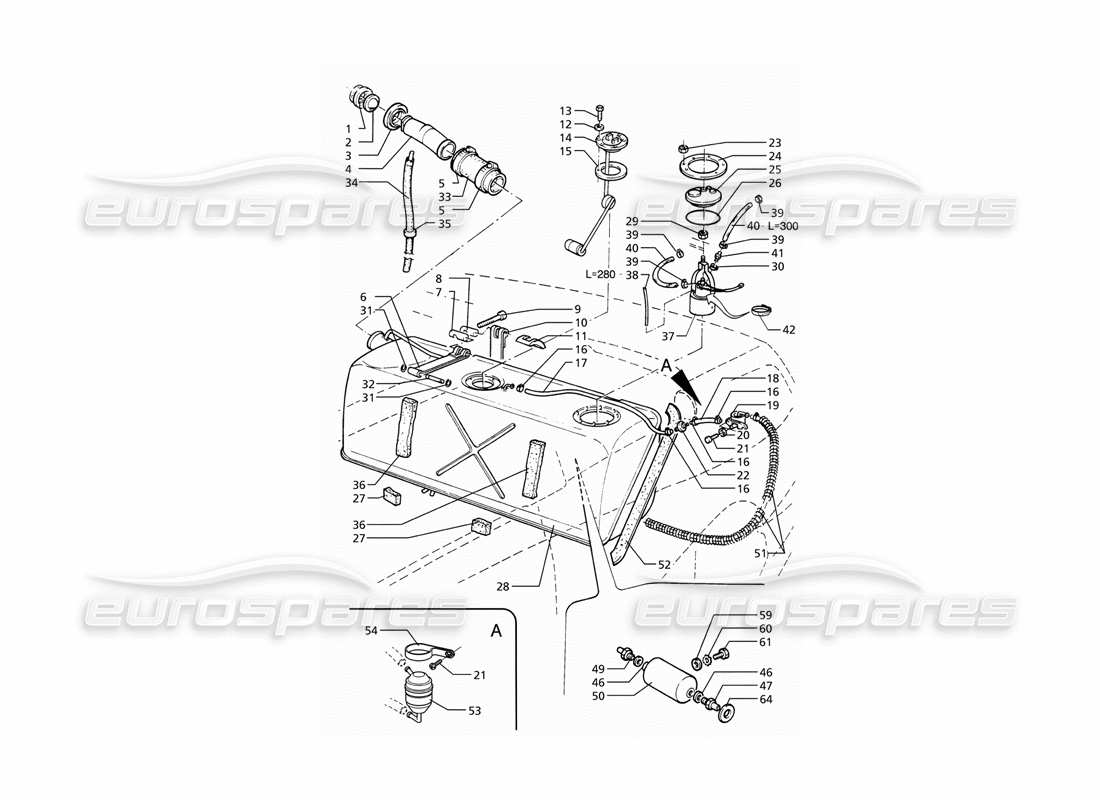

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 319220354
                                                                                          FUEL TANK CAP
                                                                                          from £9.57
                                                                                          from £9.57
                                                                                          This part replaces part number 319220007
                                                                                          # 002
                                                                                          MPN: 329232355
                                                                                          GASKET
                                                                                          from £10.16
                                                                                          from £10.16
                                                                                          # 003
                                                                                          MPN: 319250411
                                                                                          SEAL RING
                                                                                          from £3.93
                                                                                          from £3.93
                                                                                          This part replaces part number 329232410 - and 1 more. Click to view details
                                                                                          # 004
                                                                                          MPN: 369200117
                                                                                          FILLER NECK
                                                                                          from £69.78
                                                                                          from £69.78
                                                                                          # 005
                                                                                          MPN: 186404087
                                                                                          CLAMP
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 006
                                                                                          MPN: 319220385
                                                                                          TANK UPPER FASTENING STRIP
                                                                                          from £6.77
                                                                                          from £6.77
                                                                                          # 007
                                                                                          MPN: 53921332
                                                                                          STRIP PIN
                                                                                          from £2.31
                                                                                          from £2.31
                                                                                          # 008
                                                                                          MPN: 53921331
                                                                                          STRIP PIN
                                                                                          from £1.54
                                                                                          from £1.54
                                                                                          # 009
                                                                                          MPN: 53921333
                                                                                          SCREW
                                                                                          from £1.85
                                                                                          from £1.85
                                                                                          # 010
                                                                                          MPN: 319220106
                                                                                          TANK LOWER FASTENING STRIP
                                                                                          from £7.70
                                                                                          from £7.70
                                                                                          # 011
                                                                                          MPN: 319220337
                                                                                          STRIP RETAINING BLOCK
                                                                                          from £1.93
                                                                                          from £1.93
                                                                                          # 012
                                                                                          MPN: 136200043
                                                                                          WASHER
                                                                                          # 013
                                                                                          MPN: 53361308
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 014
                                                                                          MPN: 313620111
                                                                                          FUEL GAUGE
                                                                                          from £52.98
                                                                                          from £52.98
                                                                                          # 015
                                                                                          MPN: 33331300
                                                                                          GASKET
                                                                                          from £1.93
                                                                                          from £1.93
                                                                                          # 016
                                                                                          MPN: 30921110
                                                                                          CLAMP
                                                                                          # 017
                                                                                          MPN: 318720336
                                                                                          SLEEVE
                                                                                          - Pre modification
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 319220391
                                                                                          # 019
                                                                                          MPN: 319220102
                                                                                          CHECK VALVE FOR VEHICLE TURNOVER
                                                                                          - Pre modification
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 021
                                                                                          MPN: 119142160
                                                                                          SCREW
                                                                                          from £0.84
                                                                                          from £0.84
                                                                                          # 022
                                                                                          MPN: 319220134
                                                                                          LIMITING VALVE
                                                                                          - Pre modification
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 024
                                                                                          MPN: 399250446
                                                                                          FLANGE
                                                                                          from £13.79
                                                                                          from £13.79
                                                                                          # 025
                                                                                          MPN: 393750130
                                                                                          PETROL PUMP COVER
                                                                                          from £5.47
                                                                                          from £5.47
                                                                                          # 026
                                                                                          MPN: 393750309
                                                                                          GASKET
                                                                                          from £2.31
                                                                                          from £2.31
                                                                                          # 027
                                                                                          MPN: 379200399
                                                                                          FELT PAD
                                                                                          from £1.54
                                                                                          from £1.54
                                                                                          This part replaces part number 319220399
                                                                                          # 028

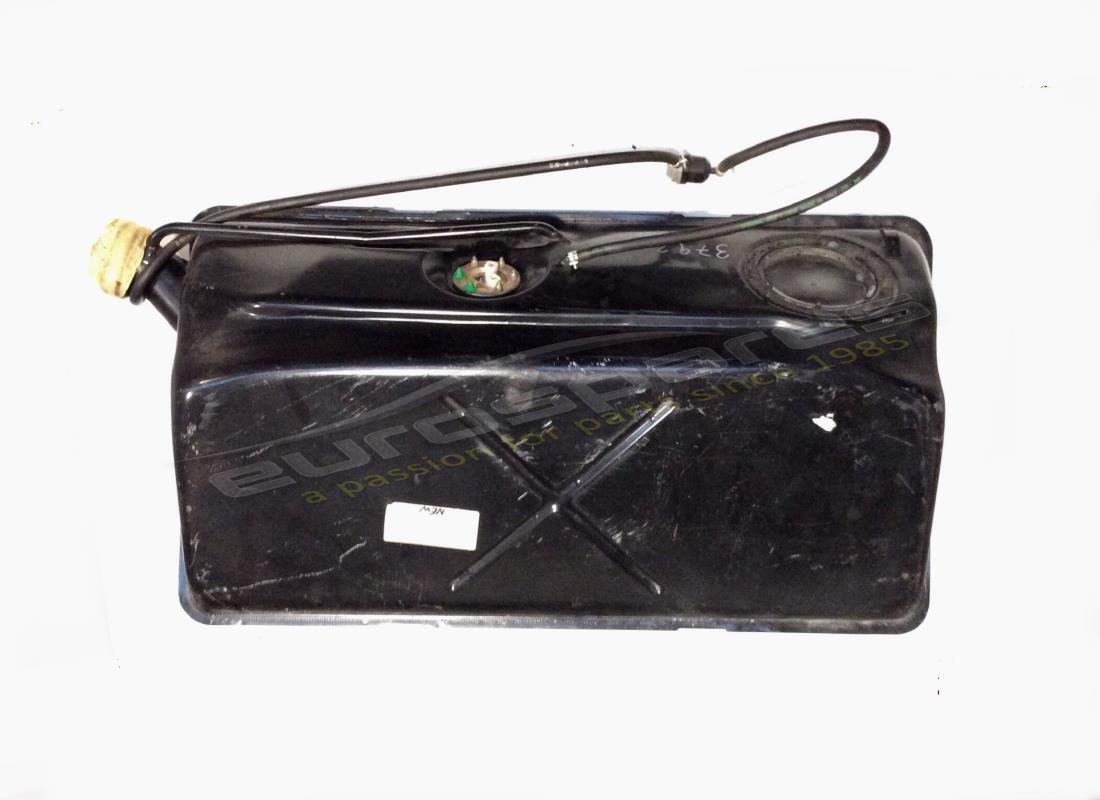

                                                                                          MPN: 379200006
                                                                                          FUEL TANK (LOW. OUTLETS ON FILLER SIDE)
                                                                                          from £2,115.68
                                                                                          from £2,115.68
                                                                                          # 030
                                                                                          MPN: 559221337
                                                                                          CLAMP
                                                                                          from £0.68
                                                                                          from £0.68
                                                                                          # 031
                                                                                          MPN: 150800050
                                                                                          SEEGER RING
                                                                                          # 032
                                                                                          MPN: 30921336
                                                                                          PIN
                                                                                          from £3.61
                                                                                          from £3.61
                                                                                          # 033
                                                                                          MPN: 339232382
                                                                                          SLEEVE
                                                                                          from £98.48
                                                                                          from £98.48
                                                                                          # 034
                                                                                          MPN: 30871325
                                                                                          DRAINAGE TUBE
                                                                                          from £1.27
                                                                                          from £1.27
                                                                                          # 035
                                                                                          MPN: 319220361
                                                                                          FAIRLEAD
                                                                                          from £2.31
                                                                                          from £2.31
                                                                                          # 036
                                                                                          MPN: 379200398
                                                                                          FELT PAD
                                                                                          from £2.31
                                                                                          from £2.31
                                                                                          This part replaces part number 319220398
                                                                                          # 037
                                                                                          MPN: 393750135
                                                                                          IN TANK FUEL PUMP
                                                                                          from £195.00
                                                                                          from £195.00
                                                                                          This part replaces part number 393750134
                                                                                          # 038
                                                                                          MPN: 97470
                                                                                          RUBBER GASKET
                                                                                          from £43.68
                                                                                          from £43.68
                                                                                          This part replaces part number 311053321 - and 1 more. Click to view details
                                                                                          # 039
                                                                                          MPN: 559221338
                                                                                          CLAMP
                                                                                          from £0.68
                                                                                          from £0.68
                                                                                          # 040
                                                                                          MPN: 398750368
                                                                                          SLEEVE
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 041
                                                                                          MPN: 399250432
                                                                                          UNION
                                                                                          from £1.27
                                                                                          from £1.27
                                                                                          # 042
                                                                                          MPN: 186403060
                                                                                          CLAMP
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          # 046
                                                                                          MPN: 319220424
                                                                                          GASKET
                                                                                          from £1.70
                                                                                          from £1.70
                                                                                          # 047
                                                                                          MPN: 470072900
                                                                                          UNION
                                                                                          from £2.87
                                                                                          from £2.87
                                                                                          # 049
                                                                                          MPN: 470072800
                                                                                          UNION
                                                                                          from £0.63
                                                                                          from £0.63
                                                                                          # 050
                                                                                          MPN: 379200141
                                                                                          IN TANK FUEL FILTER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 319220141
                                                                                          # 051
                                                                                          MPN: 379200450
                                                                                          FUEL LINE SHIELD SPRING
                                                                                          from £2.60
                                                                                          from £2.60
                                                                                          # 052
                                                                                          MPN: 379200451
                                                                                          SHAKEPROOF SEAL
                                                                                          from £4.15
                                                                                          from £4.15
                                                                                          # 053
                                                                                          MPN: 379200102
                                                                                          CHECK VALVE FOR VEHICLE TURNOVER
                                                                                          - Post modification
                                                                                          from £16.84
                                                                                          from £16.84
                                                                                          This part replaces part number 319220102 - and 1 more. Click to view details
                                                                                          # 054
                                                                                          MPN: 379200410
                                                                                          CLAMP
                                                                                          - Post modification
                                                                                          from £1.54
                                                                                          from £1.54
