maserati ghibli 2.8 gt (variante) getrag manual transmission 6 speed parts diagram

026 - Getrag Manual Transmission 6 Speed

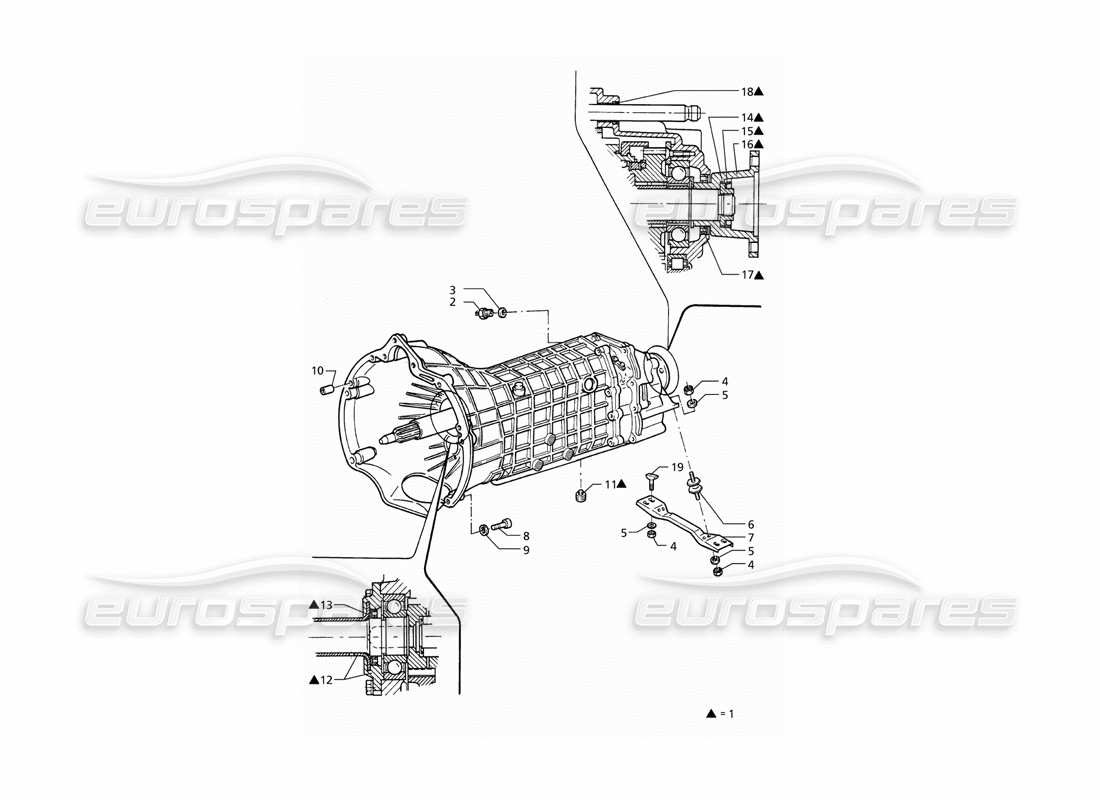

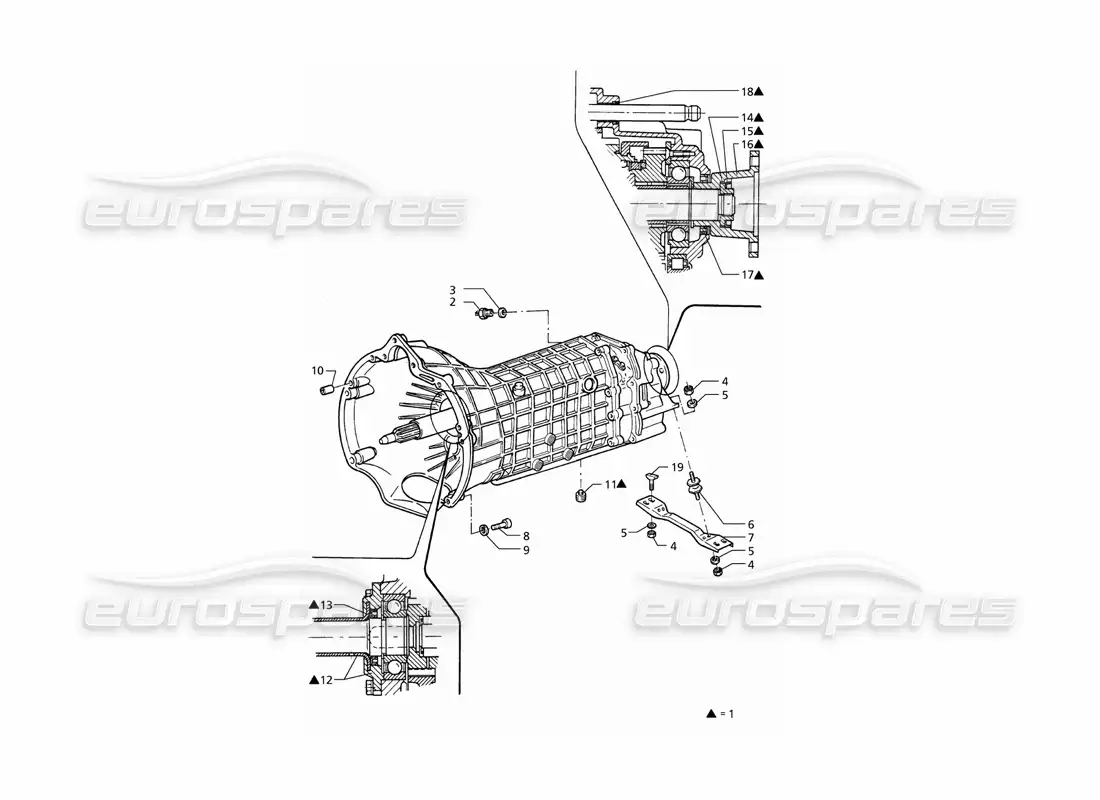

Maserati Ghibli 2.8 GT (Variante) Getrag Manual Transmission 6 Speed Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 364802007
    6 SPEED GEARBOX
    Supersession
    Supersession
    This part replaces part number 394850006
    # 001
    MPN: 374805006
    6 SPEED GEARBOX MACHINED FOR FLYWHEEL AND VOITH CLUTCH
    - Valid for 28, 13 and 04 version
    Supersession
    Supersession
    # 002
    MPN: 323353131
    REVERSE GEAR SWITCH
    - Valid for 28, 13 and 04 version
    from £18.08
    from £18.08
    # 003
    MPN: 317851388
    GASKET
    - Valid for 28, 13 and 04 version
    from £1.08
    from £1.08
    # 004
    MPN: 314632309
    SELF LOCKING NUT
    - Valid for 28, 13 and 04 version
    Supersession
    Supersession
    This part replaces part number 128350080
    # 005
    MPN: 314855306
    WASHER
    - Valid for 28, 13 and 04 version
    from £2.17
    from £2.17
    # 006
    MPN: 324853120
    SPRING MOUNT
    - Valid for 28, 13 and 04 version
    from £16.91
    from £16.91
    This part replaces part number 314855119 - and 1 more. Click to view details
    # 007
    MPN: 394850305
    MOUNT
    - Valid for 28, 13 and 04 version
    from £158.57
    from £158.57
    # 008
    MPN: 108010040
    SCREW
    - Valid for 28, 13 and 04 version
    # 009
    MPN: 138410100
    WASHER
    - Valid for 28, 13 and 04 version
    # 010
    MPN: 310420311
    DOWEL
    - Valid for 28, 13 and 04 version
    from £9.66
    from £9.66
    # 011
    MPN: 394850408
    MAGNETIC DRAIN PLUG
    - Valid for 28, 13 and 04 version
    from £4.64
    from £4.64
    # 012
    MPN: 394850410
    COVER
    - Valid for 28, 13 and 04 version
    Supersession
    Supersession
    # 013
    MPN: 394850412
    OIL SEAL
    - Valid for 28, 13 and 04 version
    from £5.56
    from £5.56
    # 014
    MPN: 394850415
    FLANGE
    - Valid for 28, 13 and 04 version
    from £4.17
    from £4.17
    # 015
    MPN: 394850417
    SECURING WASHER
    - Valid for 28, 13 and 04 version
    from £24.87
    from £24.87
    # 016
    MPN: 324853425
    OUTPUT FLANGE
    - Valid for 28, 13 and 04 version
    from £113.97
    from £113.97
    # 017
    MPN: 324853420
    OIL SEAL
    - Valid for 28, 13 and 04 version
    from £13.98
    from £13.98
    # 018
    MPN: 324853419
    OIL SEAL
    - Valid for 28, 13 and 04 version
    from £21.95
    from £21.95
    # 019
    MPN: 314820303
    SCREW
    from £12.44
    from £12.44
