030.1 - Differential Internal Parts

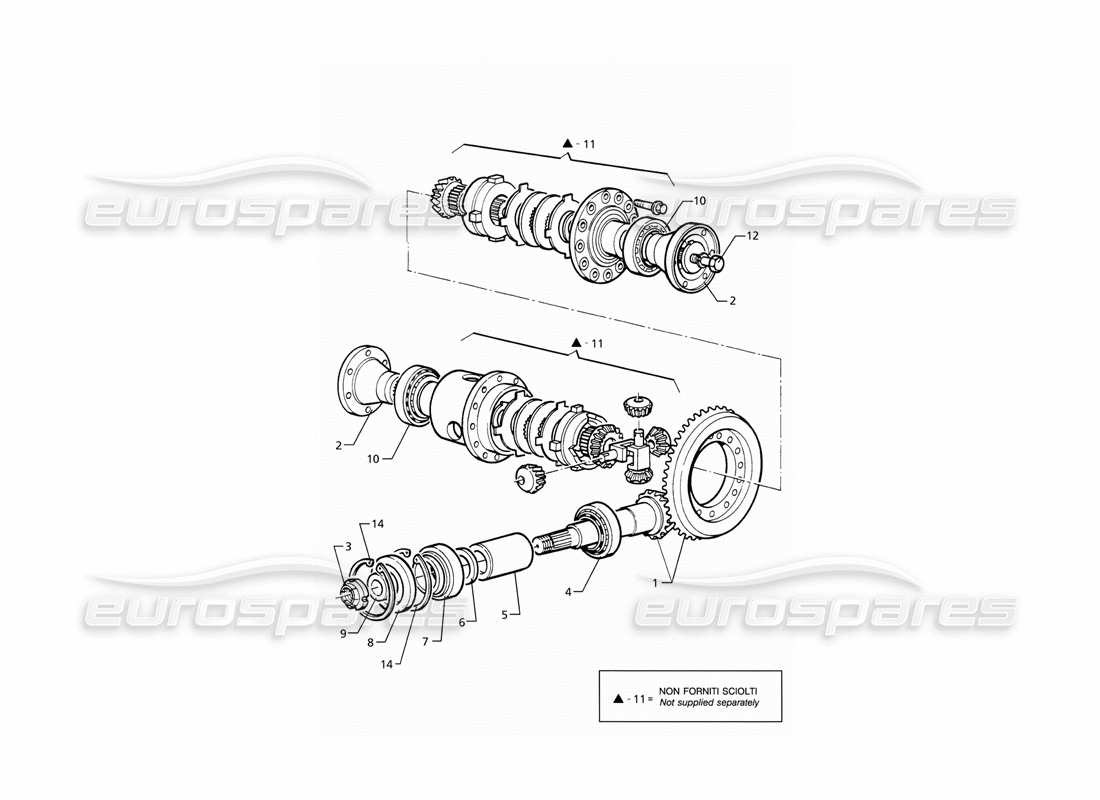

Maserati Ghibli 2.8 GT (Variante) Differential Internal Parts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 376200025
                            BEVEL GEARS 3:45
                            - Valid for 04 version
                            from £445.59
                            from £445.59
                            # 001
                            MPN: 376205025
                            BEVEL GEARS 3:25
                            - Valid for 28, 13 version
                            Supersession
                            Supersession
                            # 001
                            MPN: 376206026
                            BEVEL GEARS 3:91
                            - Valid for 27, 14 version
                            from £571.11
                            from £571.11
                            This part replaces part number 376206025
                            # 002
                            MPN: 376200333
                            DRIVE SHAFT ATTACHMENT FLANGE
                            from £53.68
                            from £53.68
                            # 003
                            MPN: 376200340
                            RING NUT
                            from £41.86
                            from £41.86
                            # 004
                            MPN: 376200123
                            BEARING
                            from £50.82
                            from £50.82
                            # 005
                            MPN: 376200345
                            SPACER WITH PHONIC WHEEL
                            from £74.30
                            from £74.30
                            # 006
                            MPN: 376200344
                            PINION SPACER
                            from £12.77
                            from £12.77
                            # 007
                            MPN: 376200122
                            PINION SPACER
                            from £240.90
                            from £240.90
                            # 008
                            MPN: 376200121
                            Pinion oil seal
                            from £15.15
                            from £15.15
                            # 009
                            MPN: 376200343
                            SPACER
                            from £533.53
                            from £533.53
                            # 010
                            MPN: 376200124
                            BEARING
                            Supersession
                            Supersession
                            # 011
                            MPN: 376200010
                            INTERNAL ASSY
                            from £1,008.97
                            from £1,008.97
                            # 012
                            MPN: 376200334
                            SCREW
                            from £4.36
                            from £4.36
                            # 013
                            MPN: 135300130
                            SPRING WASHER
