037 - REAR SHOCK ABSORBER

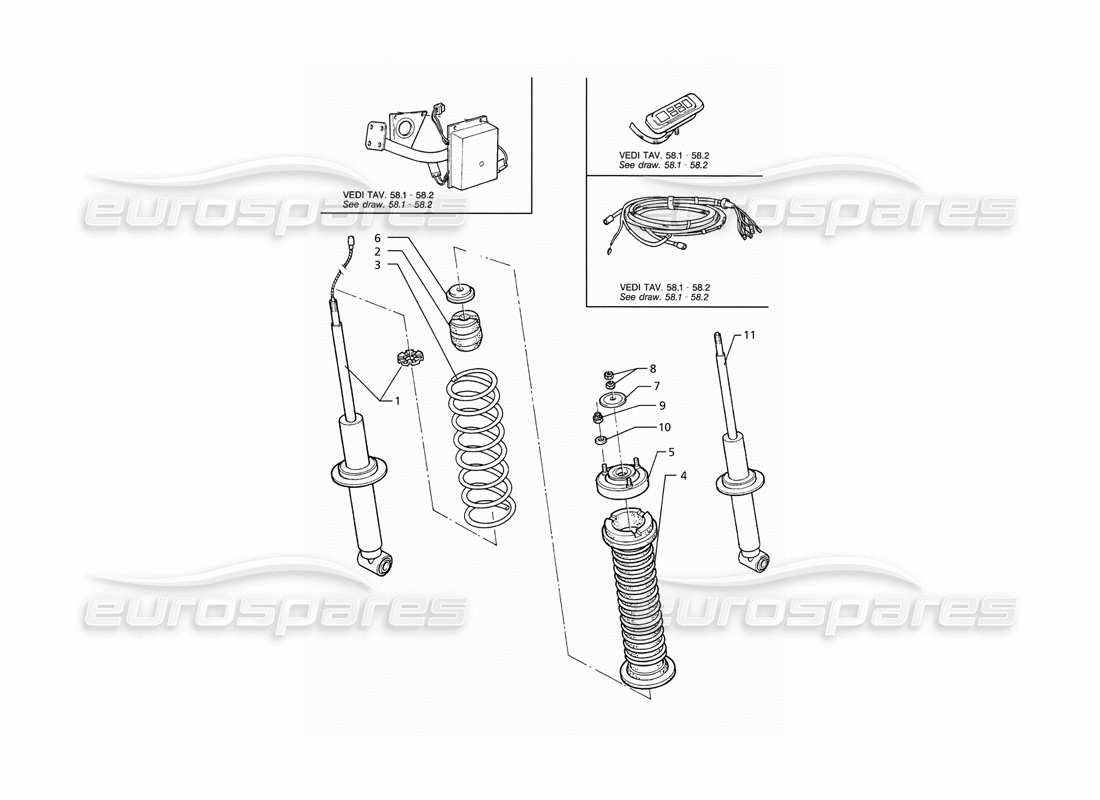

Maserati Ghibli 2.8 GT (Variante) Rear Shock Absorber Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 367004110
                  REAR SHOCK ABSORBER
                  - Active suspension
                  from £568.14
                  from £568.14
                  # 002
                  MPN: 397050332
                  BUFFER
                  from £1.10
                  from £1.10
                  # 003
                  MPN: 367004338
                  SPRING
                  - Supplied in pairs
                  from £22.24
                  from £22.24
                  # 004
                  MPN: 317020331
                  BELLOWS
                  from £6.42
                  from £6.42
                  # 005
                  MPN: 317053116
                  SHOCK ABSORBER MOUNT
                  from £29.02
                  from £29.02
                  # 006
                  MPN: 317053340
                  WASHER
                  from £11.74
                  from £11.74
                  # 007
                  MPN: 317053346
                  CUP
                  from £1.98
                  from £1.98
                  # 009
                  MPN: 128300080
                  SELF LOCKING NUT
                  # 011
                  MPN: 367004109
                  REAR SHOCK ABSORBER
                  - Non Active suspension
                  from £92.63
                  from £92.63
