maserati ghibli 2.8 gt (variante) abs hydraulic brake lines parts diagram

042 - ABS Hydraulic Brake Lines

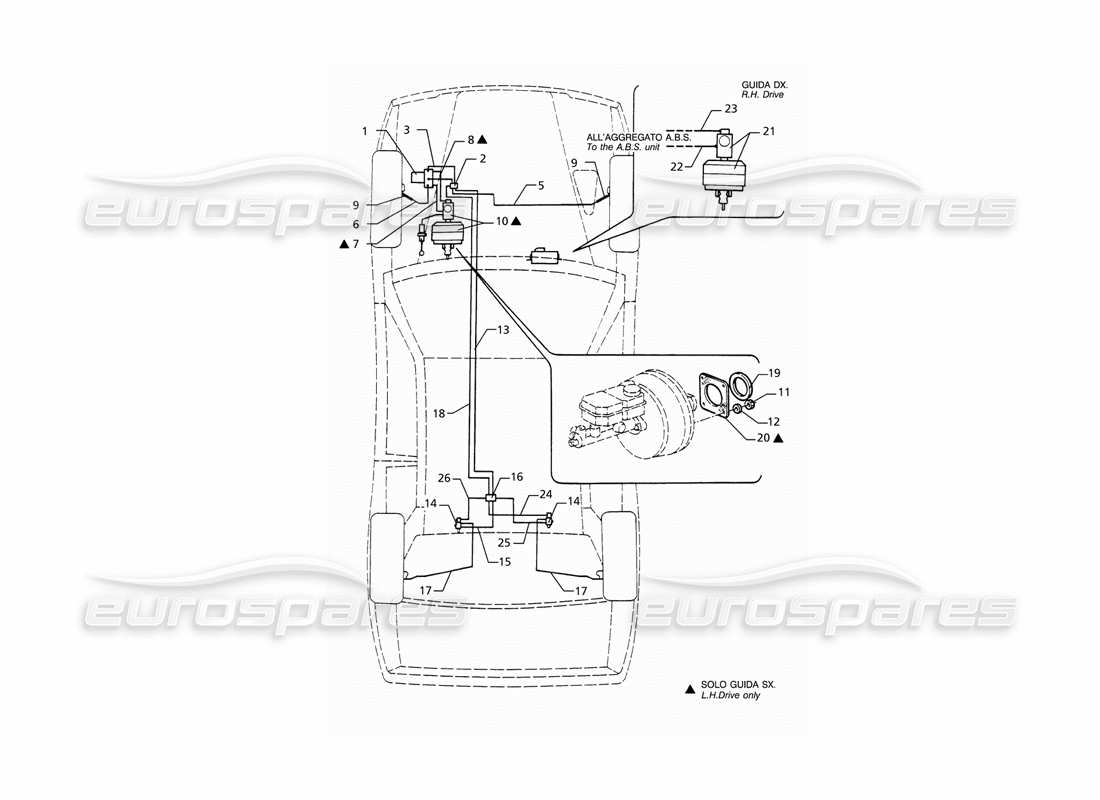

Maserati Ghibli 2.8 GT (Variante) ABS Hydraulic Brake Lines Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 363802315
                                        A.B.S. UNIT
                                        from £895.00
                                        from £895.00
                                        # 002
                                        MPN: 367402325
                                        TUBE BRANCHING BLOCK
                                        from £17.10
                                        from £17.10
                                        # 003
                                        MPN: 367402149
                                        RETURN TUBE FROM BLOCK
                                        from £12.31
                                        from £12.31
                                        # 004
                                        MPN: 367402144
                                        DELIVERY TUBE TO BLOCK
                                        from £11.88
                                        from £11.88
                                        # 005
                                        MPN: 367402146
                                        FRONT RH BRAKE CONNECTING TUBE
                                        from £17.97
                                        from £17.97
                                        # 006
                                        MPN: 367402143
                                        FRONT LH BRAKE CONNECTING TUBE
                                        from £1.76
                                        from £1.76
                                        # 007
                                        MPN: 367402140
                                        FRONT BRAKE UNIT PUMP CONNECTING TUBE
                                        - Valid for 14, 13 and 04 version
                                        from £6.37
                                        from £6.37
                                        # 008
                                        MPN: 367402142
                                        REAR BRAKE UNIT PUMP CONNECTING TUBE
                                        - Valid for 14, 13 and 04 version
                                        from £6.50
                                        from £6.50
                                        # 009
                                        MPN: 367402129
                                        FRONT BRAKE HOSE
                                        from £9.93
                                        from £9.93
                                        # 010
                                        MPN: 377400112
                                        BRAKE BOOSTER ASSY
                                        - Valid for 14, 13 and 04 version
                                        Supersession
                                        Supersession
                                        # 011
                                        MPN: 125100080
                                        NUT
                                        from £0.86
                                        from £0.86
                                        # 012
                                        MPN: 138410080
                                        WASHER
                                        from £2.28
                                        from £2.28
                                        # 013
                                        MPN: 367403148
                                        DELIVERY TUBE TO REAR BRAKES
                                        from £28.26
                                        from £28.26
                                        # 014
                                        MPN: 367402336
                                        BRAKE PROPORTIONING VALVE
                                        from £106.54
                                        from £106.54
                                        # 015
                                        MPN: 377400157
                                        TUBE CONNECTING BLOCK TO LH MANIFOLD
                                        from £10.70
                                        from £10.70
                                        # 016
                                        MPN: 377400325
                                        TUBE BRANCHING BLOCK
                                        from £38.73
                                        from £38.73
                                        # 017
                                        MPN: 377400155
                                        REAR BRAKE HOSE
                                        from £27.98
                                        from £27.98
                                        # 018
                                        MPN: 367403151
                                        RETURN TUBE TO BLOCK
                                        from £23.99
                                        from £23.99
                                        # 019
                                        MPN: 367402309
                                        RING
                                        from £1.55
                                        from £1.55
                                        # 020
                                        MPN: 367402303
                                        PLATE
                                        - Valid for 14, 13 and 04 version
                                        from £10.48
                                        from £10.48
                                        # 021
                                        MPN: 377419112
                                        BRAKE BOOSTER ASSY
                                        - Valid for 27, 28 version
                                        from £309.75
                                        from £309.75
                                        # 022
                                        MPN: 367418140
                                        FRONT BRAKE UNIT PUMP CONNECTING TUBE
                                        - Valid for 27, 28 version
                                        from £43.78
                                        from £43.78
                                        # 023
                                        MPN: 367418142
                                        REAR BRAKE UNIT PUMP CONNECTING TUBE
                                        - Valid for 27, 28 version
                                        from £35.24
                                        from £35.24
                                        # 024
                                        MPN: 377400154
                                        TUBE CONNECTING BLOCK TO RH MANIFOLD
                                        from £14.34
                                        from £14.34
                                        # 025
                                        MPN: 377400158
                                        TUBE CONNECTING BLOCK TO RH MANIFOLD
                                        from £12.66
                                        from £12.66
                                        # 026
                                        MPN: 377400153
                                        TUBE CONNECTING BLOCK TO LH MANIFOLD
                                        from £11.05
                                        from £11.05
