maserati ghibli 2.8 gt (variante) borletti instrumentation parts diagram

060 - Borletti Instrumentation

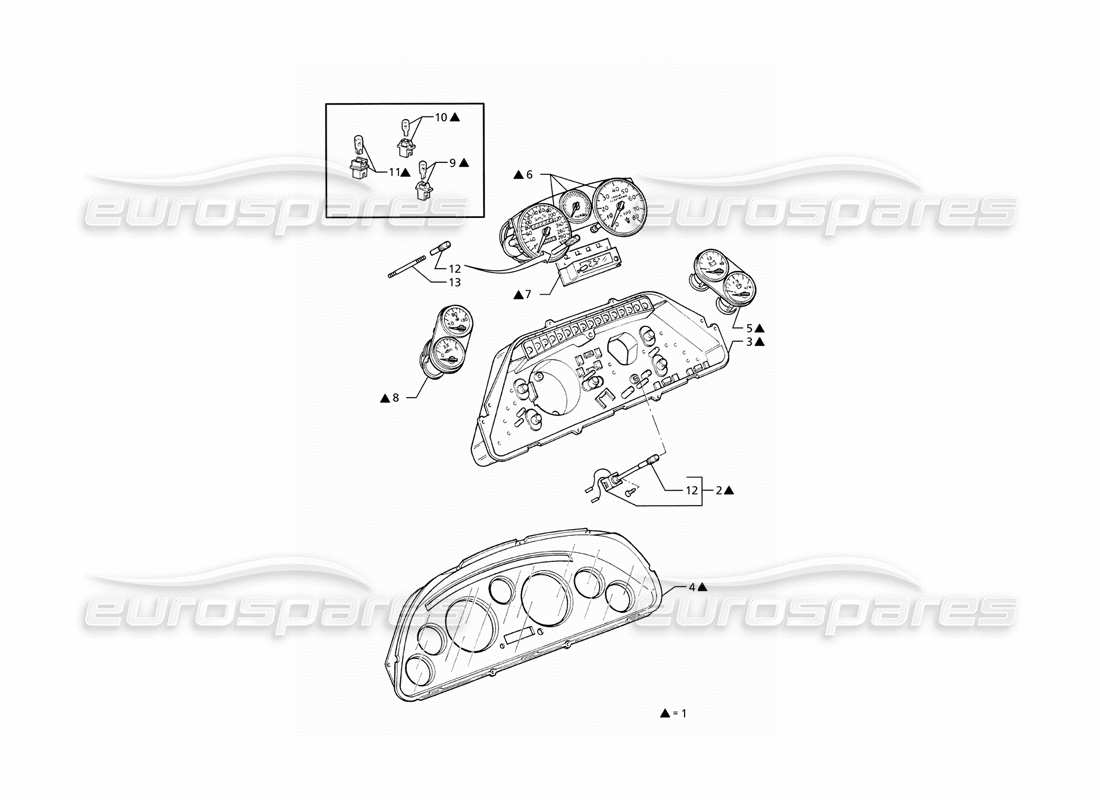

Maserati Ghibli 2.8 GT (Variante) Borletti Instrumentation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 000
                          MPN: FHAN210
                          ELECTRIC SYSTEM EQUIPMENT CATALOGUE
                          from £250.00
                          from £250.00
                          # 001
                          MPN: 373600100
                          INSTRUMENT BOARD COMPLETE ASSY
                          - Valid for 04 version
                          from £533.17
                          from £533.17
                          # 001
                          MPN: 373605100
                          INSTRUMENTATION, ASSY (KM/H)
                          - Valid for 28, 13 version
                          from £533.17
                          from £533.17
                          # 001
                          MPN: 373606100
                          INSTRUMENTATION, ASSY (KM/H)
                          - Valid for 27, 14 version
                          from £506.85
                          from £506.85
                          # 001
                          MPN: 373619100
                          INSTRUMENTATION, ASSY (MPH)
                          - Valid for 28
                          from £521.65
                          from £521.65
                          This part replaces part number 363621104
                          # 001
                          MPN: 373620100
                          INSTRUMENTATION, ASSY (MPH)
                          - Valid for 27 version
                          from £367.50
                          from £367.50
                          # 002
                          MPN: 393650210
                          RHEOSTAT
                          from £89.82
                          from £89.82
                          # 003
                          MPN: 373600202
                          CIRCUIT BOX
                          from £101.71
                          from £101.71
                          # 004
                          MPN: 373600208
                          bezel
                          from £26.04
                          from £26.04
                          # 005
                          MPN: 373600206
                          FUEL LEVEL GAUGE AND VOLTMETER
                          from £57.89
                          from £57.89
                          # 006
                          MPN: 373600204
                          COMBINED INSTRUMENT
                          - Valid for 04 version
                          from £280.13
                          from £280.13
                          # 006
                          MPN: 373605204
                          COMBINED INSTRUMENT (KM/H)
                          - Valid for 28, 13 version
                          from £210.38
                          from £210.38
                          # 006
                          MPN: 373606204
                          COMBINED INSTRUMENT (KM/H)
                          - Valid for 27, 14 version
                          from £214.43
                          from £214.43
                          # 006
                          MPN: 373619204
                          COMBINED INSTRUMENT (MPH)
                          - Valid for 28
                          from £265.41
                          from £265.41
                          This part replaces part number 363621204
                          # 006
                          MPN: 373620204
                          COMBINED INSTRUMENT (MPH)
                          - Valid for 27 version
                          from £248.08
                          from £248.08
                          This part replaces part number 363622204
                          # 007
                          MPN: 393650207
                          EXTERNAL TEMPERATURE INDICATOR
                          from £146.82
                          from £146.82
                          # 008
                          MPN: 373600203
                          WATER TEMPERATURE AND OIL PRESSURE INDICATOR
                          from £15.89
                          from £15.89
                          # 009
                          MPN: 393650215
                          LAMP HOLDER WITH LAMP 1.2 W
                          from £2.14
                          from £2.14
                          This part replaces part number 393650217
                          # 010
                          MPN: 393650216
                          LAMP HOLDER WITH LAMP 2 W
                          from £11.82
                          from £11.82
                          # 011
                          MPN: 393650217
                          LAMP HOLDER WITH LAMP 3 W
                          Supersession
                          Supersession
                          # 012
                          MPN: 373600305
                          KM RESET BUTTON/RHEOSTAT
                          from £1.39
                          from £1.39
                          # 013
                          MPN: 373600306
                          KM RESET SPINDLE
                          from £1.17
                          from £1.17
