062.1 - Instrument Panel (RH Drive)

Maserati Ghibli 2.8 GT (Variante) Instrument Panel (R.H. Drive) Parts Diagram

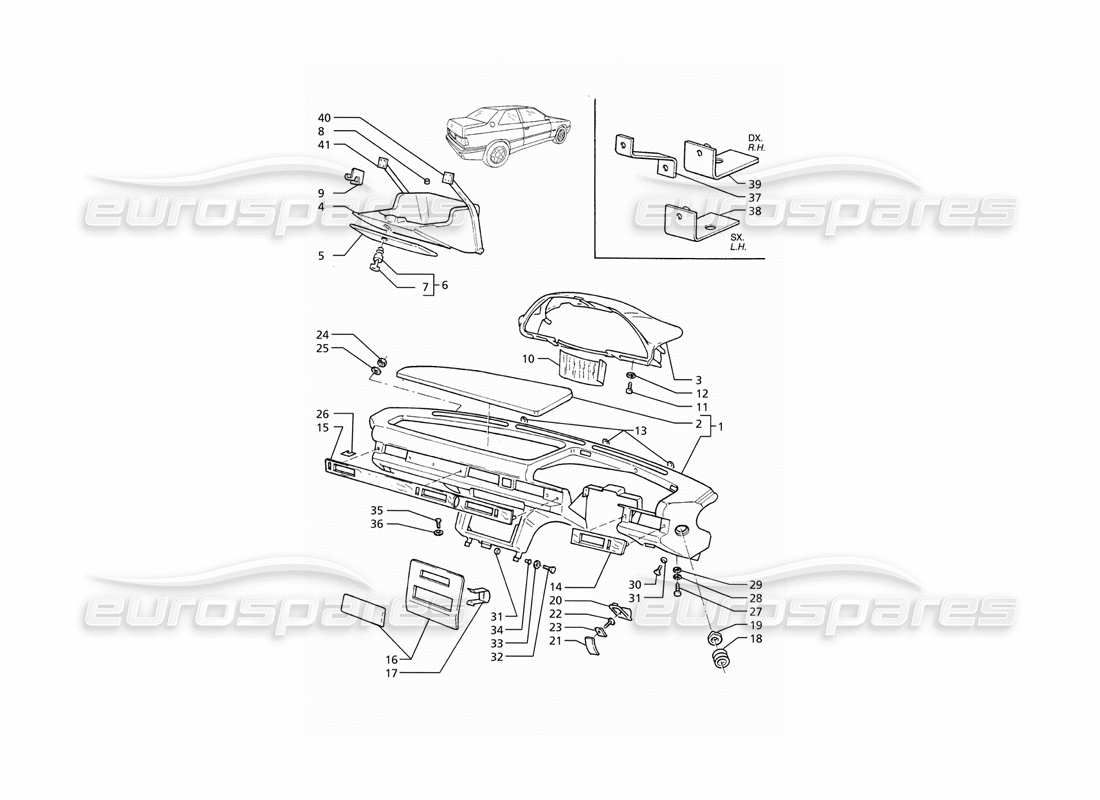

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 368966401
DASHBOARD (IVORY LEATHER)
- Valid for 27, 28 version
from £788.09
from £788.09
# 001
MPN: 369166401
DASHBOARD (BEIGE LEATHER)
- Valid for 27, 28 version
from £831.94
from £831.94
# 001
MPN: 369366401
DASHBOARD (BLUE LEATHER)
- Valid for 27, 28 version
from £831.08
from £831.08
# 001
MPN: 369466401
DASHBOARD (GREEN LEATHER)
- Valid for 27, 28 version
from £831.08
from £831.08
# 001
MPN: 369566401
DASHBOARD (GREY LEATHER)
- Valid for 27, 28 version
from £783.86
from £783.86
# 001
MPN: 369966401
DASHBOARD (BLACK LEATHER)
- Valid for 27, 28 version
from £831.94
from £831.94
# 002
MPN: 368966415
DASHBOARD UPP. TRIMMING (IVORY ALC.)
- Valid for 27, 28 version
# 002
MPN: 369166415
DASHBOARD UPP. TRIMMING (BEIGE ALC.)
- Valid for 27, 28 version
# 002
MPN: 369366415
DASHBOARD UPP. TRIMMING (BLUE ALC.)
- Valid for 27, 28 version
# 002
MPN: 369466415
DASHBOARD UPP. TRIMMING (GREEN ALC.)
- Valid for 27, 28 version
# 002
MPN: 369551415
DASHBOARD UPP. TRIMMING (GREY ALC.)
- Valid for 27, 28 version
# 003
MPN: 322370186
INSTRUMENT HOUSING (GREY ALC.)
- Valid for 27, 28 version
from £172.48
from £172.48
# 003
MPN: 362317186
INSTRUMENT HOUSING (IVORY ALC.)
- Valid for 27, 28 version
from £167.01
from £167.01
# 003
MPN: 369166407
INSTRUMENT HOUSING (BEIGE LEATHER)
- Valid for 27, 28 version
from £172.89
from £172.89
# 003
MPN: 369351407
INSTRUMENT HOUSING (BLUE LEATHER)
- Valid for 27, 28 version
from £166.07
from £166.07
# 003
MPN: 369451407
INSTRUMENT HOUSING (GREEN LEATHER)
- Valid for 27, 28 version
from £166.07
from £166.07
# 003
MPN: 369966407
INSTRUMENT HOUSING (BLACK LEATHER)
- Valid for 27, 28 version
from £536.89
from £536.89
# 004
MPN: 312353113
DASHBOARD BOX
- Valid for 27, 28 version
from £20.11
from £20.11
# 005
MPN: 378951402
DASHBOARD BOX TRIMMING (IVORY LEATHER)
- Valid for 27, 28 version
from £6.03
from £6.03
# 005
MPN: 379151402
DASHBOARD BOX TRIMMING (BEIGE LEATHER)
- Valid for 27, 28 version
from £3.38
from £3.38
# 005
MPN: 379351402
DASHBOARD BOX TRIMMING (BLUE LEATHER)
- Valid for 27, 28 version
from £5.25
from £5.25
# 005
MPN: 379451402
DASHBOARD BOX TRIMMING (GREEN LEATHER)
- Valid for 27, 28 version
from £35.55
from £35.55
# 005
MPN: 379551402
DASHBOARD BOX TRIMMING (GREY LEATHER)
- Valid for 27, 28 version
from £6.58
from £6.58
# 005
MPN: 379951402
DASHBOARD BOX TRIMMING (BLACK LEATHER)
- Valid for 27, 28 version
from £35.55
from £35.55
# 006
MPN: 372380012
DASHBOARD BOX LOCK
- Valid for 27, 28 version
from £94.92
from £94.92
This part replaces part number 372330012
# 007
MPN: 312320376
Key
- Valid for 27, 28 version
from £0.55
from £0.55
# 008
MPN: 312320324
GROMMET
- Valid for 27, 28 version
from £0.71
from £0.71
# 009
MPN: 312320339
GLOVE BOX LOCK STRIKER
- Valid for 27, 28 version
from £1.59
from £1.59
# 010
MPN: 369151406
TRIM (BEIGE LEATHER)
- Valid for 27, 28 version
from £20.78
from £20.78
# 010
MPN: 369351406
TRIM (BLUE LEATHER)
- Valid for 27, 28 version
from £20.78
from £20.78
# 010
MPN: 369451406
TRIM (GREEN LEATHER)
- Valid for 27, 28 version
from £20.78
from £20.78
# 010
MPN: 369551406
TRIM (GREY LEATHER)
- Valid for 27, 28 version
from £20.78
from £20.78
# 010
MPN: 369951406
TRIM (BLACK LEATHER)
- Valid for 27, 28 version
from £20.78
from £20.78
# 011
MPN: 119935190
SCREW
- Valid for 27, 28 version
from £1.11
from £1.11
# 012
MPN: 30831442
FLAT WASHER
- Valid for 27, 28 version
# 013
MPN: 312320384
GASKET
- Valid for 27, 28 version
from £0.71
from £0.71
# 014
MPN: 362315138
BRIERWOOD FINISH
- Valid for 27, 28 version
from £113.54
from £113.54
# 015
MPN: 362317137
BRIERWOOD FINISH WITH GHIBLI NAME
- Valid for 27, 28 version
from £66.09
from £66.09
# 016
MPN: 368300278
RADIO COMPARTMENT/ CLIM. CONTROL UNIT FINISHER
- Valid for 27, 28 version
from £261.80
from £261.80
This part replaces part number 328312243
# 017
MPN: 318320027
BRACKET
- Valid for 27, 28 version
from £1.59
from £1.59
# 018
MPN: 315520320
BOOT
- Valid for 27, 28 version
from £16.73
from £16.73
# 019
MPN: 315520319
RING NUT
- Valid for 27, 28 version
from £1.59
from £1.59
# 020
MPN: 312353336
SUPPORT
- Valid for 27, 28 version
from £1.11
from £1.11
This part replaces part number 312320336
# 021
MPN: 312353333
COMPARTMENT FINISHER
- Valid for 27, 28 version
from £1.72
from £1.72
# 022
MPN: 119142160
SCREW
- Valid for 27, 28 version
from £0.87
from £0.87
# 023
MPN: 552315334
WASHER
- Valid for 27, 28 version
from £1.11
from £1.11
# 024
MPN: 128350060
NUT
- Valid for 27, 28 version
# 025
MPN: 163030060
FLAT WASHER
- Valid for 27, 28 version
from £1.11
from £1.11
# 026
MPN: 312320381
SHIM
- Valid for 27, 28 version - As necessary
from £0.71
from £0.71
# 027
MPN: 101209030
SCREW
- Valid for 27, 28 version
# 028
MPN: 135300084
WASHER
- Valid for 27, 28 version
# 029
MPN: 169020508
WASHER
- Valid for 27, 28 version
# 030
MPN: 119942160
SCREW
- Valid for 27, 28 version
from £0.47
from £0.47
# 031
MPN: 318320341
NUT SCREW
- Valid for 27, 28 version - As necessary
from £0.71
from £0.71
This part replaces part number 14229280
# 032
MPN: 119142160
SCREW
- Valid for 27, 28 version - As necessary
from £0.87
from £0.87
# 033
MPN: 135900043
WASHER
- Valid for 27, 28 version
from £1.11
from £1.11
This part replaces part number 14496207
# 034
MPN: 312520499
NUT SCREW
- Valid for 27, 28 version
from £0.71
from £0.71
# 035
MPN: 119148160
SCREW
- Valid for 27, 28 version
# 036
MPN: 169020005
WASHER
- Valid for 27, 28 version
from £1.11
from £1.11
# 037
MPN: 362300346
BRACKET
- Valid for 27, 28 version
from £3.33
from £3.33
# 038
MPN: 362300107
LH PLATE
- Valid for 27, 28 version
from £11.26
from £11.26
# 039
MPN: 362300108
RH PLATE
- Valid for 27, 28 version
from £8.41
from £8.41
# 040
MPN: 312353121
LH ARM
- Valid for 27, 28 version
from £17.21
from £17.21
# 041
MPN: 312320112
RH ARM
- Valid for 27, 28 version
from £19.04
from £19.04
