08.49.1 - a/c unit: electronic control

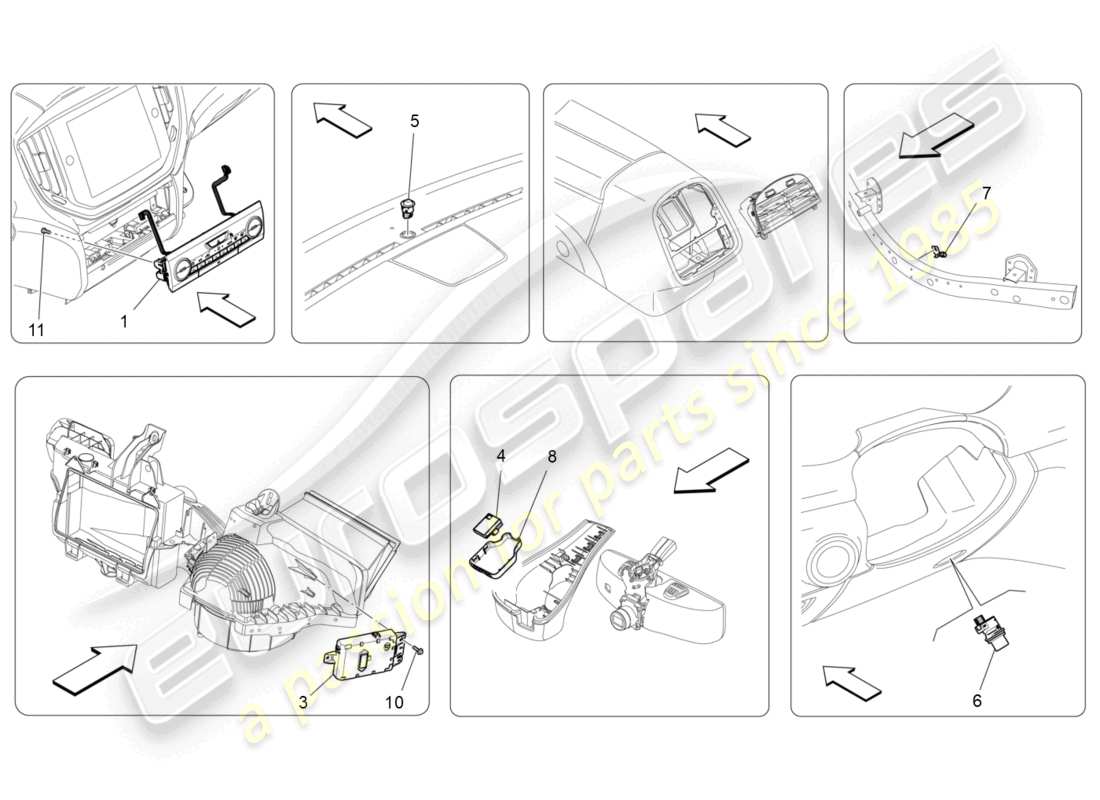

Maserati Ghibli (2016) A/C UNIT: ELECTRONIC CONTROL Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 670012554
SWITCH CENTRAL TRIM PLATE
Valid from assembly: 0 - 5058885. Colour: BLACK.
from £229.43
from £229.43
# 003
MPN: 670036011
A.C. CONTROL UNIT
Valid from assembly: 5043184 - 5050316.
Supersession
Supersession
This part replaces part number 670032872
# 003
MPN: 670037262
A.C. CONTROL UNIT
Valid from assembly: 5034248 - 5058885.
from £152.82
from £152.82
This part replaces part number 670036011
# 004
MPN: 675000532
ANTI-MIST SENSOR
from £49.60
from £49.60
This part replaces part number 675000211
# 005
MPN: 675000555
SUN LIGHT SENSOR
Valid from assembly: 5027992.
from £13.30
from £13.30
# 006
MPN: 675000232
PASSENGER COMPARTMENT TEMPERATURE SENSOR
from £43.38
from £43.38
# 007
MPN: 675000358
EXTERNAL TEMPERATURE SENSOR
from £74.40
from £74.40
# 008
MPN: 675000348
COVER
Colour: BLACK.
from £5.25
from £5.25
# 010
MPN: 675000071
SCREW
from £1.17
from £1.17
# 011
MPN: 670008129
SCREW
