Not for cars with:EURO 5. (valid for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | EUROPE, ITALY, UK)
Granted by MASERATI
Copyright MASERATI

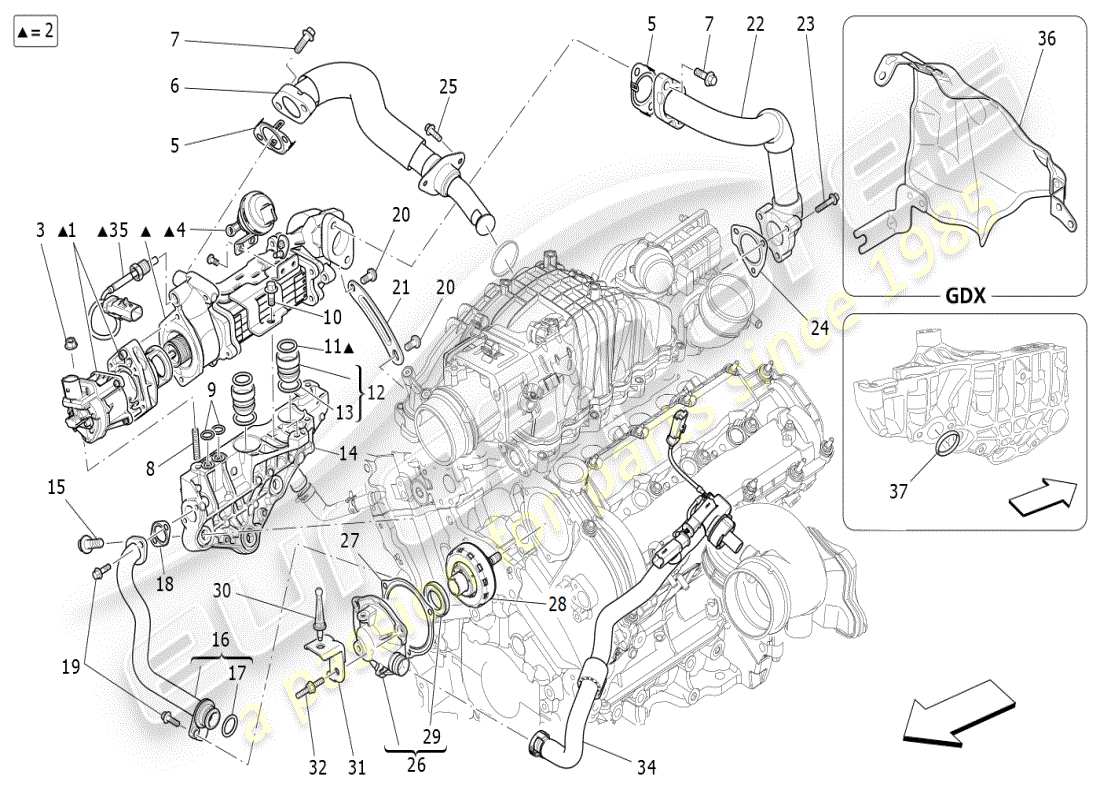

maserati ghibli (2019) oil vapour recirculation system parts diagram

01.63.4 - oil vapour recirculation system

Maserati Ghibli (2019) OIL VAPOUR RECIRCULATION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 46334935
EGR VALVE KIT #ORDER ONLY BY APPLICATION ON NEW EGR MODULE PN 46344794#
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
EGR VALVE KIT #ORDER ONLY BY APPLICATION ON NEW EGR MODULE PN 46344794# Genuine Maserati Part - New (to order)
# 001
MPN: 673001269
EGR VALVE KIT #IF NLA, ORDER THE NEW EGR PN MODULE 46344794#
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £541.52
from £541.52
EGR VALVE Genuine Maserati Part - New In stock
# 002
MPN: 46328448
EGR UNIT ASSEMBLY
Valid from assembly:5039254.Valid from engine:0 - 7331.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 002
MPN: 46339131
EGR UNIT ASSEMBLY
Valid from assembly:5039254.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 46340225
Genuine Maserati Part (no longer available to order)
# 002
MPN: 46340225
EGR UNIT ASSEMBLY
Valid from assembly:5039254.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 46328448
Genuine Maserati Part (no longer available to order)
# 002
MPN: 46344794
EGR UNIT ASSEMBLY
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £1,858.57
from £1,858.57
This part replaces part number 46339131
COMPLETE EGR MODULE Genuine Maserati Part - New (to order)
# 003
MPN: 46328657
NUT
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £2.55
from £2.55
This part replaces part number 673001274
FLANGE NUT Genuine Maserati Part - New (to order)
# 004
MPN: 46338466
ACTUATOR KIT ASSEMBLY #IF NLA, ORDER THE NEW EGR PN MODULE 46344794#
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £185.59
from £185.59
This part replaces part number 673003977
ACTUATOR Genuine Maserati Part - New (to order)
# 004
MPN: 46344796
ACTUATOR KIT ASSEMBLY #ORDER ONLY BY APPLICATION ON NEW EGR MODULE PN 46344794#
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
ACTUATOR KIT ASSEMBLY #ORDER ONLY BY APPLICATION ON NEW EGR MODULE PN 46344794# Genuine Maserati Part - New (to order)
# 004
MPN: 673001268
ACTUATOR KIT ASSEMBLY
Valid from engine:0 - 135702.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 004
MPN: 673003977
ACTUATOR KIT ASSEMBLY
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 46334936 - and 1 more. Click to view details
Genuine Maserati Part (no longer available to order)
# 005
MPN: 46328293
GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £5.82
from £5.82
This part replaces part number 673001261
GASKET Genuine Maserati Part - New (to order)
# 006
MPN: 46328290
PIPE BETWEEN EGR AND INTAKE MANIFOLD
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 673001216
Genuine Maserati Part (no longer available to order)
# 006
MPN: 46338351
PIPE BETWEEN EGR AND INTAKE MANIFOLD
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £241.81
from £241.81
This part replaces part number 46328290
PIPE Genuine Maserati Part - New (to order)
# 007
MPN: 46333724
SCREW
Valid from assembly:5089132.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £9.02
from £9.02
SCREW M8X25 Genuine Maserati Part - New (to order)
# 008
MPN: 673001273
STUD
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £1.64
from £1.64
STUD Genuine Maserati Part - New (to order)
# 009
MPN: 46328360

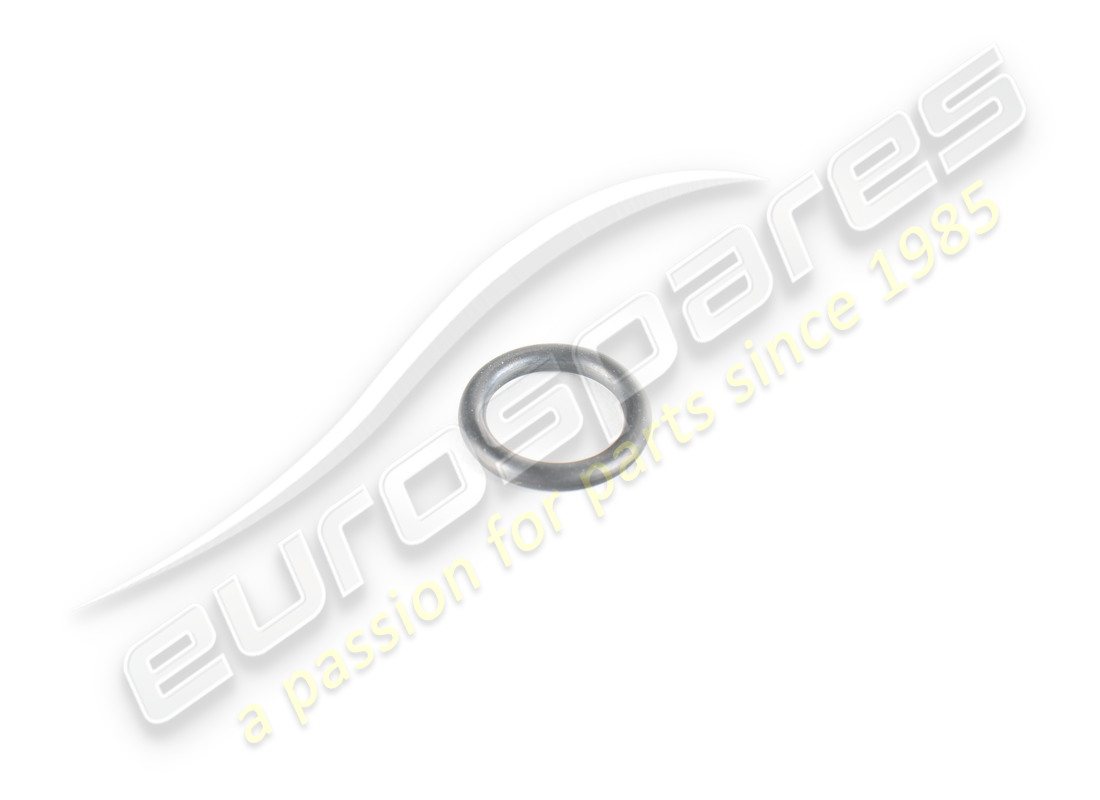

O.R. GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 673001290
Genuine Maserati Part (no longer available to order)
# 009
MPN: 46335256
O.R. GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £2.46
from £2.46
This part replaces part number 46328360
O.R. GASKET Genuine Maserati Part - New In stock
# 010
MPN: 46328697
SCREW
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £1.47
from £1.47
This part replaces part number 673001279
FLANGE BOLT Genuine Maserati Part - New (to order)
# 011
MPN: 46328362

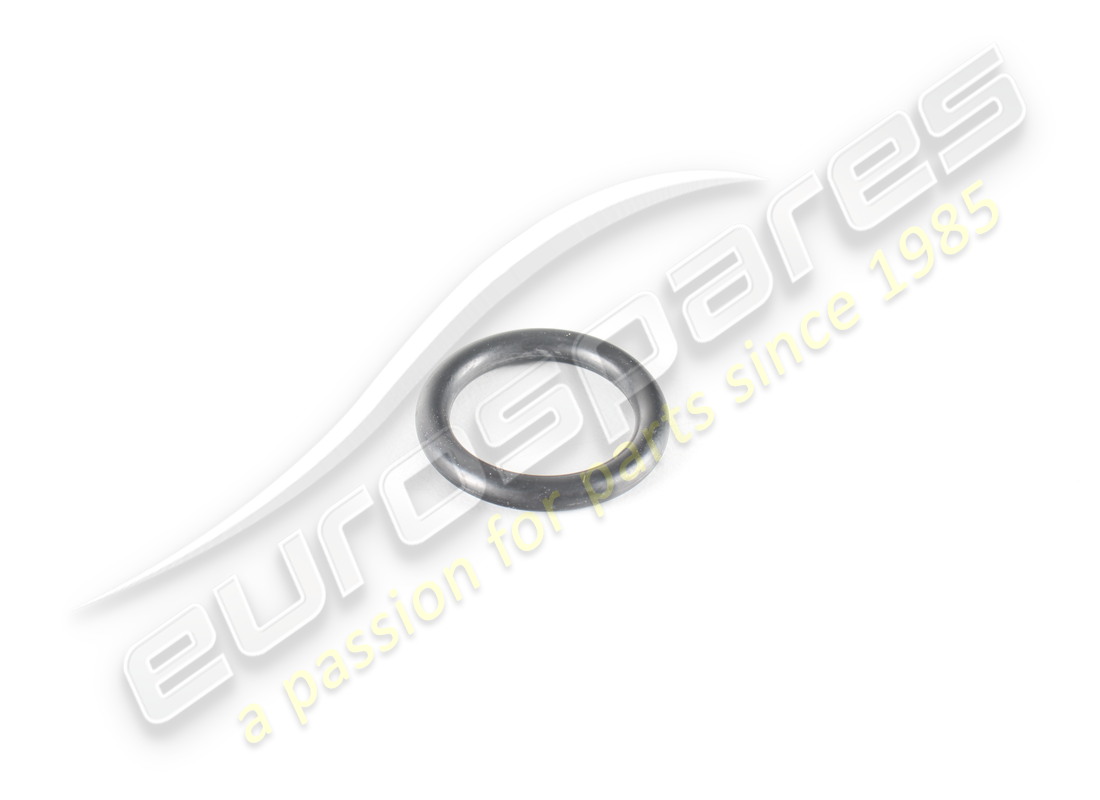

O.R. GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 673001291
Genuine Maserati Part (no longer available to order)
# 011
MPN: 46334926
O.R. GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £2.46
from £2.46
This part replaces part number 46328362
O-RING EGR 18.64X3.53 EPDM Genuine Maserati Part - New In stock
# 012
MPN: 46328284
BUSHING
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £16.30
from £16.30
This part replaces part number 673001217
COMPLETE OR DOOR BUSH FOR STA Genuine Maserati Part - New (to order)
# 013
MPN: 46328361
O.R. GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 673001292
Genuine Maserati Part (no longer available to order)
# 013
MPN: 46335091
O.R. GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £2.46
from £2.46
This part replaces part number 46328361
EGR O-RING Genuine Maserati Part - New In stock
# 014
MPN: 46328280
EGR SUPPORT
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £290.26
from £290.26
COMPLETE EGR SYSTEM BRACKET Genuine Maserati Part - New (to order)
# 014
MPN: 673001160
EGR SUPPORT
Valid from engine:0 - 102191.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £290.26
from £290.26
BRACKET Genuine Maserati Part - New (to order)
# 015
MPN: 46328714
SCREW
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £1.73
from £1.73
This part replaces part number 673001282
FLANGE BOLT Genuine Maserati Part - New (to order)
# 016
MPN: 46328296
WATER DELIVERY PIPE TO EGR SYSTEM
Valid from assembly:0 - 5100587.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £70.04
from £70.04
This part replaces part number 673001215 - and 3 more. Click to view details
TUBE Genuine Maserati Part - New (to order)
TUBE Genuine Maserati Part - Used In stock
# 017
MPN: 46328363
O.R. GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £2.46
from £2.46
This part replaces part number 673001293
O.R. GASKET Genuine Maserati Part - New (to order)
# 018
MPN: 46328298
GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £14.01
from £14.01
This part replaces part number 673002574
GASKET Genuine Maserati Part - New (to order)
# 018
MPN: 673001258
GASKET
Valid from engine:0 - 101290.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 019
MPN: 46328686
SCREW
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £1.39
from £1.39
This part replaces part number 673001030
FLANGE BOLT Genuine Maserati Part - New (to order)
# 020
MPN: 46328289
SCREW
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £1.64
from £1.64
This part replaces part number 673001257
TORX SCREW Genuine Maserati Part - New (to order)
# 021
MPN: 46328288
BRACKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £4.34
from £4.34
This part replaces part number 673001242
BRACKET Genuine Maserati Part - New (to order)
# 022
MPN: 46328294
PIPE BETWEEN EGR AND TURBOCHARGER
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £147.55
from £147.55
This part replaces part number 673001252 - and 3 more. Click to view details
TUBE Genuine Maserati Part - New (to order)
TUBE Genuine Maserati Part - Used In stock
# 023
MPN: 46333723
SCREW
Valid from assembly:5089132.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £6.47
from £6.47
This part replaces part number 46328728
SCREW M6X30 Genuine Maserati Part - New (to order)
# 024
MPN: 46328295
GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £17.13
from £17.13
This part replaces part number 673001259
GASKET Genuine Maserati Part - New (to order)
# 025
MPN: 46328683
SCREW
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £0.74
from £0.74
This part replaces part number 673001161
FLANGE BOLT Genuine Maserati Part - New (to order)
# 026
MPN: 46328197
OIL SEPARATOR LID ASSEMBLY
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £131.08
from £131.08
This part replaces part number 673000950
COMPLETE OIL SEPARATOR COVER Genuine Maserati Part - New (to order)
# 027
MPN: 46328196
GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £14.01
from £14.01
This part replaces part number 673001007
GASKET Genuine Maserati Part - New (to order)
# 028
MPN: 46328139
OIL DISAREATOR
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £119.12
from £119.12
This part replaces part number 673001022
oil separator Genuine Maserati Part - New (to order)
# 029
MPN: 46328345
SEAL RING
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £4.51
from £4.51
This part replaces part number 673001055
O-RING Genuine Maserati Part - New (to order)
# 030
MPN: 46328350
BALL PIN
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £6.40
from £6.40
This part replaces part number 673001270
BALL PIN Genuine Maserati Part - New (to order)
# 031
MPN: 46328340
456 BRACKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £16.11
from £16.11
This part replaces part number 673001249
BRACKET Genuine Maserati Part - New (to order)
# 032
MPN: 46328201
STUD
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £2.05
from £2.05
This part replaces part number 673000998
STUD Genuine Maserati Part - New (to order)
# 034
MPN: 670009615
BLOW-BY BREATHER PIPE ASSEMBLY
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £153.41
from £153.41
This part replaces part number 670005585 - and 1 more. Click to view details
COMPLETE OUTLET PIPE BLOW-BY Genuine Maserati Part - New (to order)
COMPLETE OUTLET PIPE BLOW-BY Genuine Maserati Part - Used In stock
# 035
MPN: 46330272
EXHAUST GAS TEMPERATURE SENSOR
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £77.06
from £77.06
Egt Sensor Genuine Maserati Part - New (to order)
# 036
MPN: 670030290
HEAT SHIELD
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 275 HP|UK
from £15.59
from £15.59
HEAT SHIELD Genuine Maserati Part - New (to order)
HEAT SHIELD Genuine Maserati Part - Used In stock
# 037
MPN: 46328357
O.R. GASKET
Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £3.52
from £3.52
This part replaces part number 673003766
SLEEVE GASKET Genuine Maserati Part - New In stock
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
