maserati ghibli (2019) braking control systems parts diagram

04.90.2 - braking control systems

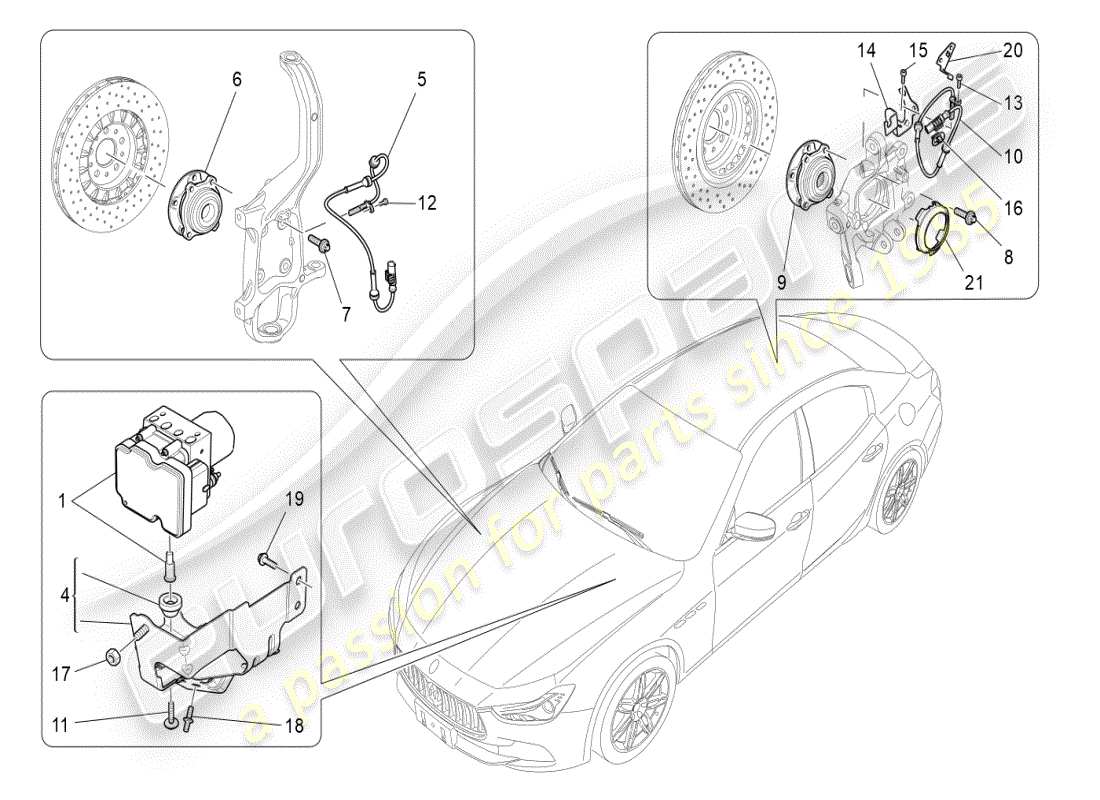

Maserati Ghibli (2019) BRAKING CONTROL SYSTEMS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 673008319
ABS/ASR HYDRAULIC UNIT
Valid from assembly:5058886 - 5103644.Suitable for cars with:STANDARD BRAKE SYSTEM - UP TO MY16 (FRONT 345 [mm], REAR 320 [mm]), FROM MY17 (FRONT 345 [mm], REAR 330 [mm]).Not for cars with:MEDIUM DUAL CAST BRAKE SYSTEM - UP TO MY16 (FRONT 360 [mm], REAR 350 [mm]), FROM MY17 (FRONT 360 [mm], REAR 345 [mm]).Suitable for:AUTOMATIC|3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, UK, UNITED ARAB EMIRATES, USA
from £1,182.14
from £1,182.14
This part replaces part number 673009004
ABS/ASR HYDRAULIC UNIT Genuine Maserati Part - New (to order)
# 001
MPN: 673008320
ABS/ASR HYDRAULIC UNIT
Valid from assembly:5089132 - 5099370.Suitable for cars with:MEDIUM DUAL CAST BRAKE SYSTEM - UP TO MY16 (FRONT 360 [mm], REAR 350 [mm]), FROM MY17 (FRONT 360 [mm], REAR 345 [mm]).Not for cars with:STANDARD BRAKE SYSTEM - UP TO MY16 (FRONT 345 [mm], REAR 320 [mm]), FROM MY17 (FRONT 345 [mm], REAR 330 [mm]).Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
Supersession
Supersession
This part replaces part number 670106219
Genuine Maserati Part (no longer available to order)
# 001
MPN: 673009875
ABS/ASR HYDRAULIC UNIT
Valid from assembly:5089132 - 5103644.Suitable for cars with:MEDIUM DUAL CAST BRAKE SYSTEM - UP TO MY16 (FRONT 360 [mm], REAR 350 [mm]), FROM MY17 (FRONT 360 [mm], REAR 345 [mm]).Not for cars with:STANDARD BRAKE SYSTEM - UP TO MY16 (FRONT 345 [mm], REAR 320 [mm]), FROM MY17 (FRONT 345 [mm], REAR 330 [mm]).Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1,437.51
from £1,437.51
This part replaces part number 673008320
ABS/ASR HYDRAULIC UNIT Genuine Maserati Part - New (to order)
# 004
MPN: 670032075
ABS/ASR HYDRAULIC GROUP FIXING BRACKET
Valid from assembly:0 - 5103644.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £24.74
from £24.74
HYDRAULIC SYSTEM FIXING BRAC Genuine Maserati Part - New (to order)
# 005
MPN: 670037273
FRONT ABS SENSOR
Valid from assembly:5058886.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £19.26
from £19.26
FRONT ABS SENSOR Genuine Maserati Part - New (to order)
FRONT ABS SENSOR Genuine Maserati Part - Used In stock
# 006
MPN: 670003580
WHEEL BEARING ASSEMBLY
Suitable for:AUTOMATIC 4WD|3.0 BT V6 4WD 430 HP|EUROPE, UNITED ARAB EMIRATES, USA
from £442.94
from £442.94
COMPLETE BEARING WHEEL Genuine Maserati Part - New (to order)
# 006
MPN: 675000062
WHEEL BEARING ASSEMBLY
Suitable for:AUTOMATIC|3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £143.29
from £143.29
COMPLETE FRONT WHEEL BEARING Genuine Maserati Part - New (to order)
COMPLETE FRONT WHEEL BEARING Genuine Maserati Part - Used In stock
# 007
MPN: 670006981
SCREW
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £3.85
from £3.85
SCREW Genuine Maserati Part - New (to order)
# 008
MPN: 670035429
SCREW
Valid from assembly:5058886.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £3.35
from £3.35
SCREW Genuine Maserati Part - New (to order)
# 009
MPN: 670103668
WHEEL BEARING ASSEMBLY
Valid from assembly:5058886.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £166.32
from £166.32
This part replaces part number 670032030 which we have in stock
WHEEL BEARING Genuine Maserati Part - New In stock
# 010
MPN: 670035289
REAR ABS SENSOR
Valid from assembly:5058886.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £13.68
from £13.68
REAR ABS SENSOR Genuine Maserati Part - New (to order)
REAR ABS SENSOR Genuine Maserati Part - Used In stock
# 011
MPN: 675000156
SCREW [M6]
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £2.33
from £2.33
SCREW Genuine Maserati Part - New (to order)
# 012
MPN: 675000173
SCREW [M6X16]
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.30
from £1.30
SCREW Genuine Maserati Part - New (to order)
# 013
MPN: 675000173
SCREW [M6X16]
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.30
from £1.30
SCREW Genuine Maserati Part - New (to order)
# 014
MPN: 670036877
RH BRACKET
Valid from assembly:5058886.Not for cars with:STANDARD BRAKE SYSTEM - UP TO MY16 (FRONT 345 [mm], REAR 320 [mm]), FROM MY17 (FRONT 345 [mm], REAR 330 [mm]).Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £18.68
from £18.68
RH ABS SENSOR BRACKET Genuine Maserati Part - New (to order)
# 014
MPN: 670036891
LH BRACKET
Valid from assembly:5058886.Not for cars with:STANDARD BRAKE SYSTEM - UP TO MY16 (FRONT 345 [mm], REAR 320 [mm]), FROM MY17 (FRONT 345 [mm], REAR 330 [mm]).Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £19.18
from £19.18
LH ABS SENSOR BRACKET Genuine Maserati Part - New (to order)
# 014
MPN: 670100063
LH BRACKET
Valid from assembly:5058886.Suitable for cars with:STANDARD BRAKE SYSTEM - UP TO MY16 (FRONT 345 [mm], REAR 320 [mm]), FROM MY17 (FRONT 345 [mm], REAR 330 [mm]).Not for cars with:UP TO MY14 STANDARD BRAKE SYSTEM - ANT 345 [mm], POST 320 [mm] - FROM MY21 PERFORMANCE BRAKE SYSTEM - ANT 380 [mm], POST 345 [mm] , MEDIUM DUAL CAST BRAKE SYSTEM - UP TO MY16 (FRONT 360 [mm], REAR 350 [mm]), FROM MY17 (FRONT 360 [mm], REAR 345 [mm]).Suitable for:AUTOMATIC|3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, UK, UNITED ARAB EMIRATES, USA
from £3.85
from £3.85
LH WIRES SUPPORT BRACKET Genuine Maserati Part - New (to order)
# 014
MPN: 670100064
RH BRACKET
Valid from assembly:5058886.Suitable for cars with:STANDARD BRAKE SYSTEM - UP TO MY16 (FRONT 345 [mm], REAR 320 [mm]), FROM MY17 (FRONT 345 [mm], REAR 330 [mm]).Not for cars with:UP TO MY14 STANDARD BRAKE SYSTEM - ANT 345 [mm], POST 320 [mm] - FROM MY21 PERFORMANCE BRAKE SYSTEM - ANT 380 [mm], POST 345 [mm] , MEDIUM DUAL CAST BRAKE SYSTEM - UP TO MY16 (FRONT 360 [mm], REAR 350 [mm]), FROM MY17 (FRONT 360 [mm], REAR 345 [mm]).Suitable for:AUTOMATIC|3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, UK, UNITED ARAB EMIRATES, USA
from £3.85
from £3.85
RH WIRES SUPPORT BRACKET Genuine Maserati Part - New (to order)
# 015
MPN: 675000173
SCREW [M6X16]
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.30
from £1.30
SCREW Genuine Maserati Part - New (to order)
# 016
MPN: 675000355
CLIP
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £0.74
from £0.74
CLIP Genuine Maserati Part - New (to order)
# 017
MPN: 014059314
NUT [M8]
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
NUT M8 Genuine Maserati Part - New (to order)
# 018
MPN: 675000430
SCREW
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.53
from £1.53
SCREW Genuine Maserati Part - New (to order)
# 019
MPN: 675000387
SCREW
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.42
from £1.42
SCREW Genuine Maserati Part - New (to order)
# 020
MPN: 670036875
RH ABS CABLE BRACKET
Valid from assembly:5058886.Suitable for cars with:STANDARD BRAKE SYSTEM - UP TO MY16 (FRONT 345 [mm], REAR 320 [mm]), FROM MY17 (FRONT 345 [mm], REAR 330 [mm]).Suitable for:AUTOMATIC|3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £19.18
from £19.18
RH CABLE BRACKET Genuine Maserati Part - New (to order)
# 020
MPN: 670036889
LH ABS CABLE BRACKET
Valid from assembly:5058886.Suitable for cars with:STANDARD BRAKE SYSTEM - UP TO MY16 (FRONT 345 [mm], REAR 320 [mm]), FROM MY17 (FRONT 345 [mm], REAR 330 [mm]).Suitable for:AUTOMATIC|3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £19.18
from £19.18
LH CABLE BRACKET Genuine Maserati Part - New (to order)
# 021
MPN: 670037587
SHIELD
Valid from assembly:5058886.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £2.68
from £2.68
BEARING SHELTER Genuine Maserati Part - New (to order)
