maserati ghibli (2021) fuel tank parts diagram

01.42.1 - FUEL TANK

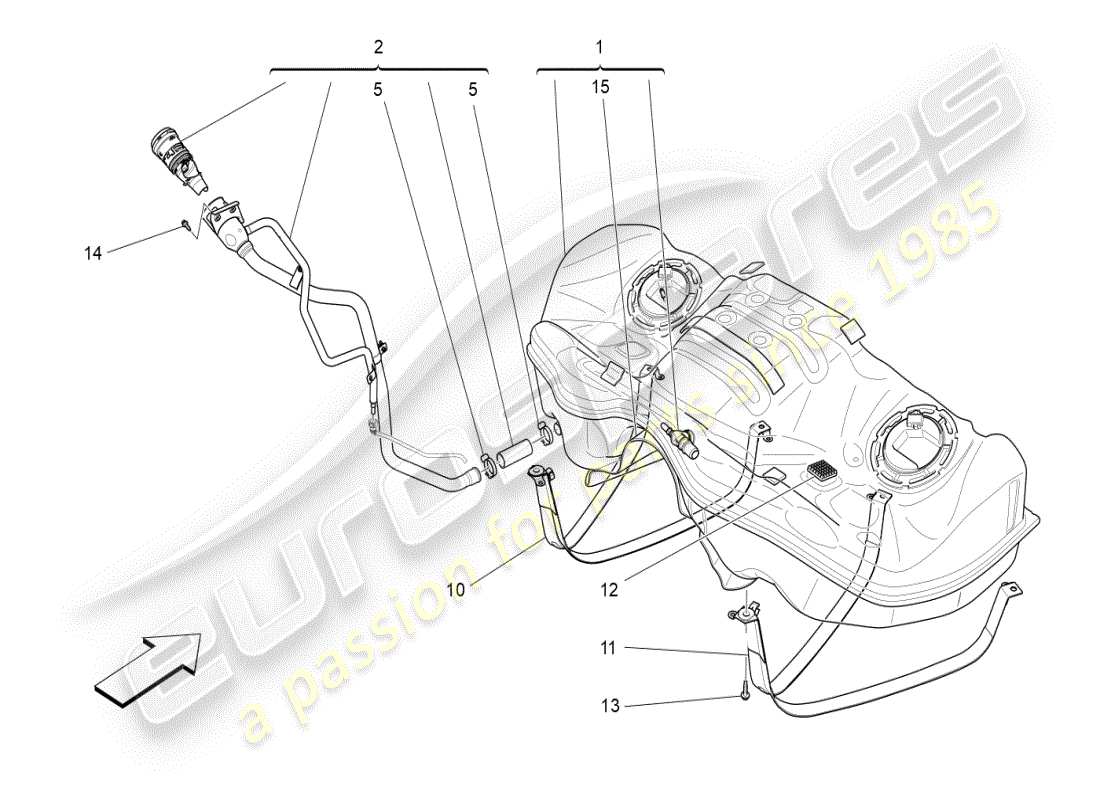

Maserati Ghibli (2021) FUEL TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 670036131
          FUEL TANK ASSEMBLY
          Valid from assembly:5058886.Not for cars with:REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
          from £1,883.84
          from £1,883.84
          This part replaces part number 670003257
          COMPLETE FUEL TANK Genuine Maserati Part - New (to order)
          # 001
          MPN: 670036995
          FUEL TANK ASSEMBLY
          Valid from assembly:5058886 - 5103653.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|ITALY
          Supersession
          Supersession
          This part replaces part number 670031635
          Genuine Maserati Part (no longer available to order)
          # 001
          MPN: 670038248
          FUEL TANK ASSEMBLY
          Valid from assembly:5058886.Suitable for cars with:REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
          from £824.76
          from £824.76
          FUEL TANK Genuine Maserati Part - New (to order)
          # 001
          MPN: 670159335
          FUEL TANK ASSEMBLY
          Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|ITALY
          from £700.80
          from £700.80
          This part replaces part number 670036995 - and 1 more. Click to view details
          COMPLETE DIESEL FUEL TANK Genuine Maserati Part - New (to order)
          COMPLETE DIESEL FUEL TANK Genuine Maserati Part - Used In stock
          # 002
          MPN: 670105560
          FUEL FILLER NECK ASSEMBLY
          Valid from assembly:5089132 - 5110866.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
          Supersession
          Supersession
          Genuine Maserati Part (no longer available to order)
          # 002
          MPN: 670105585
          FUEL FILLER NECK ASSEMBLY
          Valid from assembly:5089132.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|ITALY
          from £165.63
          from £165.63
          COMPLETE FUEL UNION Genuine Maserati Part - New (to order)
          # 002
          MPN: 673015725
          FUEL FILLER NECK ASSEMBLY
          Valid from assembly:5089132 - 5119326.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
          from £164.70
          from £164.70
          FILLER NEK Genuine Maserati Part - New (to order)
          # 005
          MPN: 11417670
          SCREW COLLAR
          Suitable for:3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP, 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP
          from £6.42
          from £6.42
          This part replaces part number 675000094 - and 2 more. Click to view details
          NEMO BES FASTENING COLLAR D30-D45 Genuine Maserati Part - New (to order)
          # 005
          MPN: 11417670
          SCREW COLLAR
          Suitable for:3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP, 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP
          from £6.42
          from £6.42
          This part replaces part number 675000094 - and 2 more. Click to view details
          NEMO BES FASTENING COLLAR D30-D45 Genuine Maserati Part - New (to order)
          # 010
          MPN: 670001400
          LH FUEL TANK FASTENING STRAP
          Valid from assembly:5103645.Not for cars with:REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP|ITALY, UK
          Supersession
          Supersession
          Genuine Maserati Part (no longer available to order)
          # 010
          MPN: 670005953
          LH FUEL TANK FASTENING STRAP
          Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|ITALY
          from £36.68
          from £36.68
          BELT FASTENING LH FUEL TANK Genuine Maserati Part - New (to order)
          BELT FASTENING LH FUEL TANK Genuine Maserati Part - Used In stock
          # 010
          MPN: 670007868
          LH FUEL TANK FASTENING STRAP
          Valid from assembly:5103645.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
          from £69.37
          from £69.37
          This part replaces part number 670001400
          LH FUEL TANK FASTENING STRAP Genuine Maserati Part - New (to order)
          # 011
          MPN: 670001399
          RH FUEL TANK FASTENING STRAP
          Valid from assembly:5103645.Not for cars with:REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES.Suitable for:3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP|ITALY, UK
          from £64.90
          from £64.90
          FUEL TANK RIGHT SUPPORT STRA Genuine Maserati Part - New (to order)
          # 011
          MPN: 670005952
          RH FUEL TANK FASTENING STRAP
          Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|ITALY
          from £36.68
          from £36.68
          RH FUEL TANK RETAINING BELT Genuine Maserati Part - New (to order)
          RH FUEL TANK RETAINING BELT Genuine Maserati Part - Used In stock
          # 011
          MPN: 670007867
          RH FUEL TANK FASTENING STRAP
          Valid from assembly:5103645.Suitable for cars with:REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES.Suitable for:3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
          from £69.37
          from £69.37
          RH FUEL TANK FASTENING STRAP Genuine Maserati Part - New (to order)
          # 011
          MPN: 670157426
          RH FUEL TANK FASTENING STRAP
          Valid from assembly:5103645.Not for cars with:REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES.Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK
          from £64.90
          from £64.90
          RH FUEL TANK FASTENING STRAP Genuine Maserati Part - New (to order)
          # 011
          MPN: 670157427
          RH FUEL TANK FASTENING STRAP
          Valid from assembly:5103645.Suitable for cars with:REQUIREMENTS FOR EXTRA HOT WEATHER COUNTRIES.Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
          from £64.90
          from £64.90
          RH FUEL TANK FASTENING STRAP Genuine Maserati Part - New (to order)
          # 012
          MPN: 670003729
          PAD
          from £3.98
          from £3.98
          ANTIVIBRATION BUSHING Genuine Maserati Part - New (to order)
          # 013
          MPN: 675000041
          SCREW
          from £1.33
          from £1.33
          SCREW Genuine Maserati Part - New (to order)
          # 014
          MPN: 675000144
          SCREW
          from £2.09
          from £2.09
          SCREW Genuine Maserati Part - New (to order)
          # 015
          -
          TANK HEAT SHIELD #FOR THESE COMPONENTS REFER TO TABLE 9.63-2#
