maserati ghibli (2021) front underchassis parts diagram

06.12.1 - front underchassis

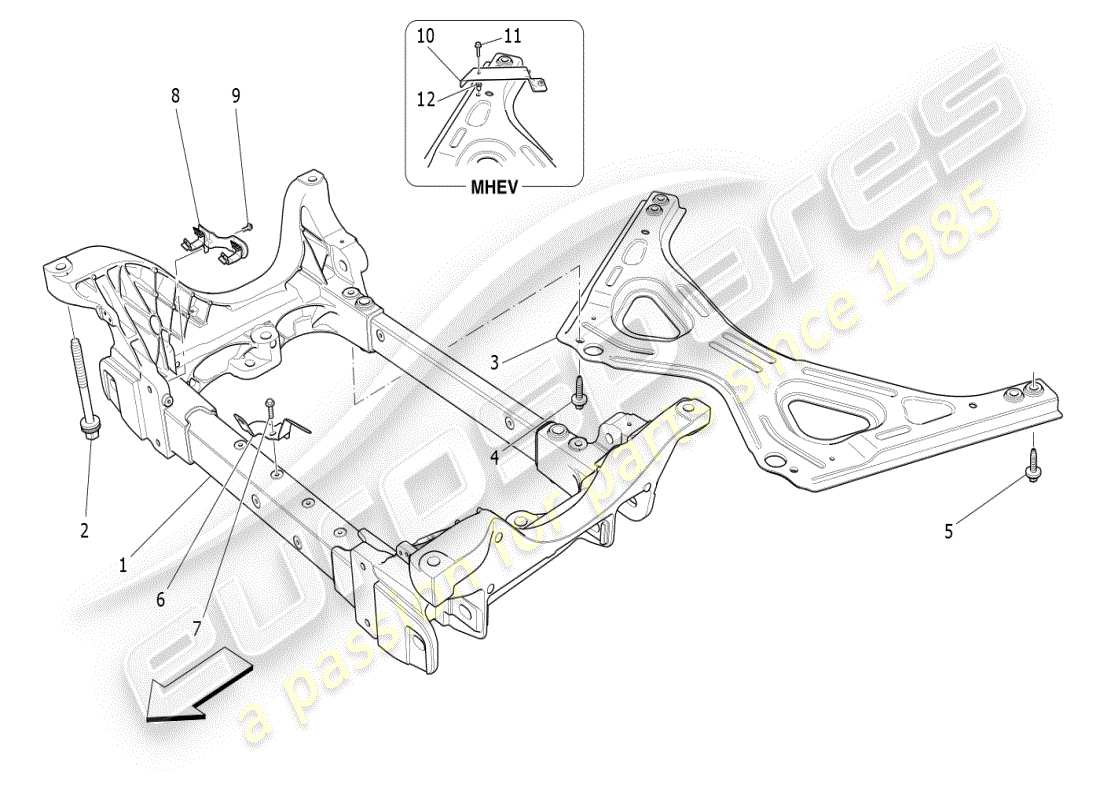

Maserati Ghibli (2021) FRONT UNDERCHASSIS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 670154977
FRONT CHASSIS ASSEMBLY
Valid from assembly:5076306.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
from £1,228.40
from £1,228.40
This part replaces part number 670039232
SUBFRAME Genuine Maserati Part - New (to order)
# 002
MPN: 670002915
SCREW [M14X145]
Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
from £9.50
from £9.50
SCREW Genuine Maserati Part - New (to order)
# 003
MPN: 670154976
FRONT FRAME CROSS BRACE
Valid from assembly:5076306.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
from £282.43
from £282.43
This part replaces part number 670038982
CROCIERA COMPLETE RINFORZO TEL Genuine Maserati Part - New (to order)
# 004
MPN: 670039625
SCREW
Valid from assembly:5076306.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
from £6.34
from £6.34
SCREW M12 X 1.75 Genuine Maserati Part - New (to order)
# 005
MPN: 670003130
SCREW
Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
from £3.33
from £3.33
SCREW Genuine Maserati Part - New In stock
# 006
MPN: 670100024
BRACKET
Valid from assembly:5076306.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
from £4.38
from £4.38
BRACKET (BZ) Genuine Maserati Part - New (to order)
# 007
MPN: 670101724
SCREW
Valid from assembly:5076306.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
from £2.60
from £2.60
SCREW & WASHER CAPTIVE Genuine Maserati Part - New (to order)
# 008
MPN: 670100023
BRACKET
Valid from assembly:5076306.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
from £3.33
from £3.33
WATER PUMP FASTENING BRACKET Genuine Maserati Part - New (to order)
# 009
MPN: 670101724
SCREW
Valid from assembly:5076306.Suitable for:2.0 T4 2WD 330 HP MHEV, 3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP
from £2.60
from £2.60
SCREW & WASHER CAPTIVE Genuine Maserati Part - New (to order)
# 010
MPN: 670157456
BRACKET
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £7.55
from £7.55
BRACKET Genuine Maserati Part - New (to order)
# 011
MPN: 675000278
SCREW [M6X25]
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.17
from £1.17
SCREW Genuine Maserati Part - New (to order)
# 012
MPN: 670173720
THREADED RIVET
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.46
from £1.46
RIVET Genuine Maserati Part - New (to order)
