08.71.2 - it system

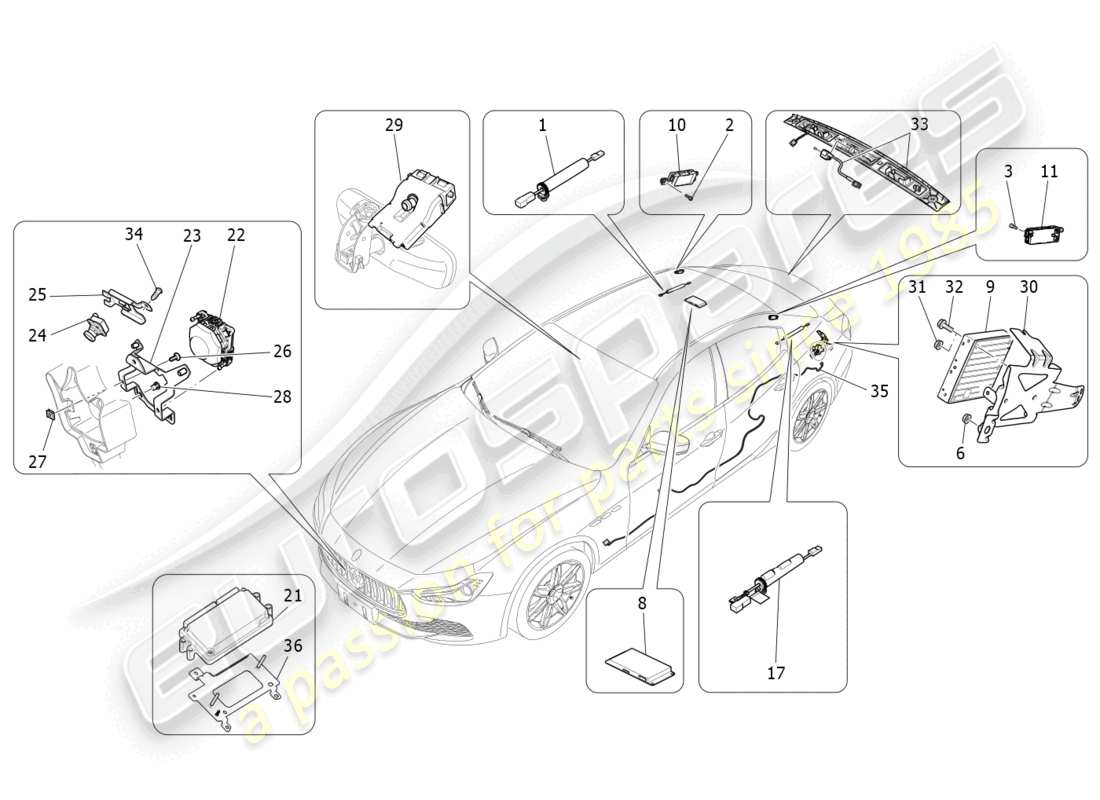

Maserati Ghibli Fragment (2022) IT SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 670109541
AM FILTER
from £36.10
from £36.10
This part replaces part number 670007177 which we have in stock
# 002
MPN: 675000084
SCREW
from £0.55
from £0.55
# 003
MPN: 675000084
SCREW
from £0.55
from £0.55
# 006
MPN: 675000095
NUT [M6]
from £0.60
from £0.60
# 009
MPN: 670173135
AUDIO AMPLIFIER
Valid from assembly: 5103645. Suitable for cars with: HIGH PREMIUM SOUND SYSTEM. Not for cars with: PREMIUM SOUND SYSTEM, SOUND SYSTEM. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA
from £1,439.52
from £1,439.52
# 009
MPN: 670214313
AUDIO AMPLIFIER
Valid from assembly: 5110284. Suitable for cars with: PREMIUM SOUND SYSTEM. Not for cars with: HIGH PREMIUM SOUND SYSTEM, SOUND SYSTEM. Suitable for: ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £486.71
from £486.71
This part replaces part number 670173136
# 011
MPN: 670106193
AM/FM1 AMPLIFIER
Valid from assembly: 5076306. Not for cars with: JAPAN MARKET NAVIGATION SYSTEM.
from £15.27
from £15.27
This part replaces part number 670002130 which we have in stock - and 1 more. Click to view details
# 017
MPN: 670109542
NOISE FILTER
Suitable for cars with: REAR LAMINATED GLAZING. Suitable for: 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP | USA
from £19.84
from £19.84
This part replaces part number 670007178 which we have in stock
# 021
MPN: 670179495
SURROUND VIEW CONTROL UNIT
Valid from assembly: 5103645. Suitable for cars with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS.
from £1,097.71
from £1,097.71
This part replaces part number 670162381
# 022
MPN: 670177907
ADAPTIVE CRUISE CONTROL
Valid from assembly: 5110290. Suitable for cars with: FORWARD COLLISION WARNING + AUTOMATED EMERGENCY BRAKING + ADVANCED BRAKE ASSIST.
from £1,179.75
from £1,179.75
This part replaces part number 670153466
# 023
MPN: 670035989
BRACKET
Valid from assembly: 5089132. Suitable for cars with: FORWARD COLLISION WARNING + AUTOMATED EMERGENCY BRAKING + ADVANCED BRAKE ASSIST.
from £15.44
from £15.44
# 024
MPN: 670104387
CAMERA
Valid from assembly: 5089132. Suitable for cars with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS. Not for cars with: EXTERIOR BLACK KIT - MC SPECIFIC.
from £220.57
from £220.57
This part replaces part number 675000606
# 025
MPN: 670036463
BRACKET
Suitable for cars with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS.
from £28.31
from £28.31
# 026
MPN: 675000604
SCREW
Suitable for cars with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS.
from £2.33
from £2.33
# 027
MPN: 675000634
Retaining Clip
Suitable for cars with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS.
Supersession
Supersession
# 028
MPN: 670036946
FASTENING RUBBER
Suitable for cars with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS.
from £2.08
from £2.08
# 028
MPN: 670036947
FASTENING RUBBER
Suitable for cars with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS.
from £2.08
from £2.08
# 029
MPN: 670153623
LANE ASSIST CAMERA MODULE
Valid from assembly: 5103645. Suitable for cars with: FULL LED HEADLAMPS, FORWARD COLLISION WARNING + AUTOMATED EMERGENCY BRAKING + ADVANCED BRAKE ASSIST.
Supersession
Supersession
# 029
MPN: 670153623
LANE ASSIST CAMERA MODULE
Valid from assembly: 5103645. Suitable for cars with: FORWARD COLLISION WARNING + AUTOMATED EMERGENCY BRAKING + ADVANCED BRAKE ASSIST. Not for cars with: FULL LED HEADLAMPS.
Supersession
Supersession
# 030
MPN: 670004839
AMPLIFIER FIXING BRACKET
Valid from assembly: 5058886. Suitable for cars with: HIGH PREMIUM SOUND SYSTEM. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA
from £41.33
from £41.33
This part replaces part number 673000435
# 030
MPN: 670035098
AMPLIFIER FIXING BRACKET
Valid from assembly: 5058886. Not for cars with: HIGH PREMIUM SOUND SYSTEM.
from £19.42
from £19.42
# 031
MPN: 014059211
NUT [M6]
Suitable for cars with: HIGH PREMIUM SOUND SYSTEM. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA
# 031
MPN: 14059211
NUT [M6]
Suitable for cars with: HIGH PREMIUM SOUND SYSTEM. (valid for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | *AUSTRALIA)
from £0.53
from £0.53
This part replaces part number 675000181
# 032
MPN: 675000645
SCREW
Suitable for cars with: PREMIUM SOUND SYSTEM. Suitable for: ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM, USA
from £1.00
from £1.00
# 033
-
LIGHT BAR WITH REAR PARKING CAMERA #FOR THESE COMPONENTS REFER TO TABLE 9.15-1#
# 034
MPN: 675000733
SCREW
from £1.61
from £1.61
# 035
MPN: 670103101
MULTIMEDIA-TV WIRING #(IMAGE NOT AVAILABLE)#
Valid from assembly: 5089132. Suitable for cars with: JAPAN MARKET NAVIGATION SYSTEM. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | JAPAN, JAPAN (RH DRIVE)
from £76.02
from £76.02
# 036
-
BRACKET
Suitable for cars with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS.
# 036
MPN: 670034766
BRACKET
Suitable for cars with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS.
from £9.30
from £9.30
