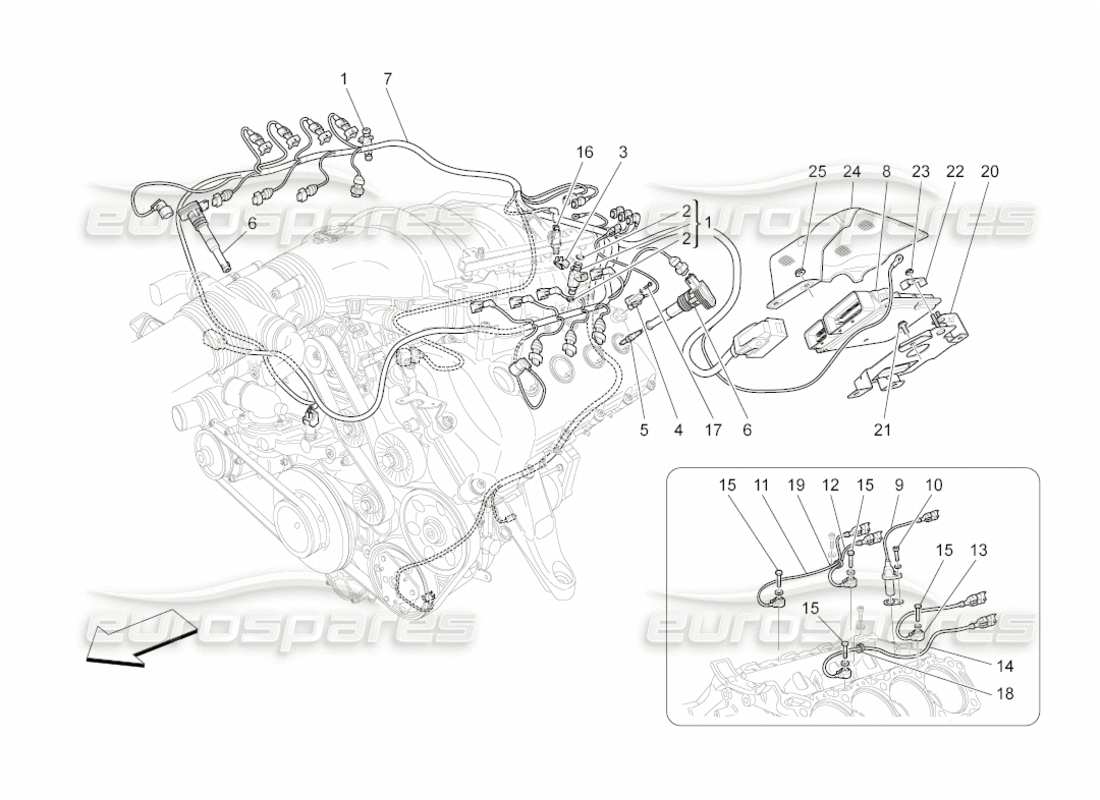

025 - electronic control: injection and engine timing control
Maserati GranCabrio (2011) 4.7 Electronic Control: Injection And Engine Timing Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 213635
ELECTRO-INJECTOR
from £127.26
from £127.26
# 002
MPN: 133902
GASKET
from £3.29
from £3.29
# 003
MPN: 144730
CLIP
from £2.24
from £2.24
# 004
MPN: 224573
PHASE SENSOR
from £11.41
from £11.41
# 005
MPN: 239242
SPARK PLUG
from £17.43
from £17.43
This part replaces part number 194503
# 006
MPN: 281449
IGNITION COIL
from £75.00
from £75.00
This part replaces part number 248404
# 007
MPN: 245268
ENGINE INJECTION CABLE
from £945.95
from £945.95
# 008
MPN: 243890
CONTROL UNIT IGNITION PROGRAMMABLE
from £880.57
from £880.57
This part replaces part number 980139667
# 009
MPN: 230760
ANGOLAR SPEED SENSOR
from £71.37
from £71.37
This part replaces part number 201987
# 010
MPN: 231616
SCREW
from £0.54
from £0.54
# 011
MPN: 246805
COMPLETE SENSOR FOR FIRING RH SIDE
from £45.51
from £45.51
# 012
MPN: 246804
COMPLETE SENSOR FOR FIRING RH SIDE
from £44.71
from £44.71
# 013
MPN: 246802
COMPLETE SENSOR FOR FIRING LH SIDE
from £85.39
from £85.39
# 014
MPN: 246803
COMPLETE SENSOR FOR FIRING LH SIDE
from £64.52
from £64.52
# 015
MPN: 231629
SCREW
from £0.53
from £0.53
# 016
MPN: 201672
OIL PRESSURE TRANSMITTER
from £7.34
from £7.34
# 017
MPN: 231616
SCREW
from £0.53
from £0.53
# 018
MPN: 10440990
BRACKET WITH SHEATH
from £0.83
from £0.83
# 019
MPN: 10441190
BRACKET WITH SHEATH
from £0.53
from £0.53
# 020
MPN: 81222700
BRACKET
from £19.35
from £19.35
# 021
MPN: 11625624
SCREW
from £0.47
from £0.47
# 022
MPN: 243937
BRACKET
from £8.88
from £8.88
# 023
MPN: 14039614
NUT
from £0.54
from £0.54
# 024
MPN: 243938
HEAT SHIELD
from £41.83
from £41.83
# 025
MPN: 14039614
NUT
from £0.53
from £0.53
