01.10.1 - crank mechanism

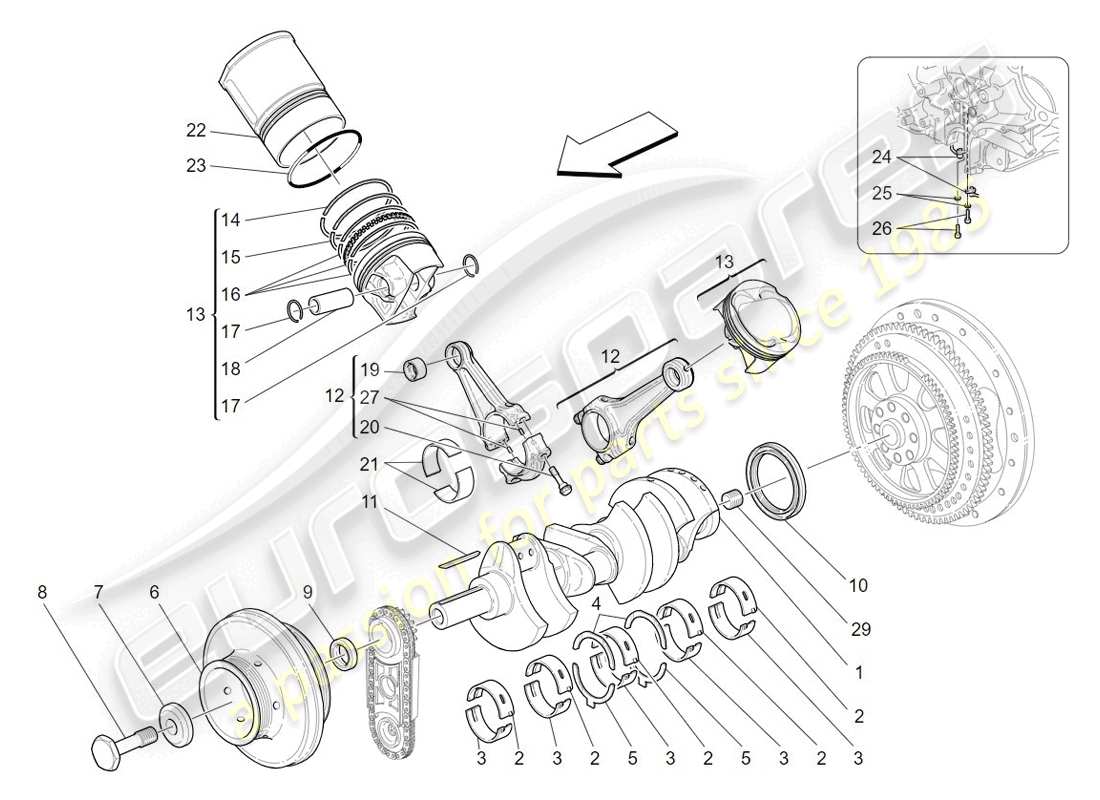

Maserati GranTurismo (2009) CRANK MECHANISM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 216406
crankshaft
Valid from engine: 0 - 171624. (valid for: AUTOMATIC | 4200 cc)
from £1,000.42
from £1,000.42
# 001
MPN: 245066
crankshaft
Valid from assembly: 0 - 55703. Valid from engine: 0 - 171624. (valid for: AUTOMATIC | 4700 cc)
Supersession
Supersession
This part replaces part number 213932
# 001
MPN: 272395
CRANKSHAFT #SPECIFY CAR SERIAL NUMBER IN THE ORDER#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC | 4700 cc)
Supersession
Supersession
# 001
MPN: 272395
CRANKSHAFT #SPECIFY CAR SERIAL NUMBER IN THE ORDER#
Valid from engine: 174193 - 372553. (valid for: AUTOMATIC | 4700 cc)
Supersession
Supersession
# 001
MPN: 274920
CRANKSHAFT #SPECIFY CAR SERIAL NUMBER IN THE ORDER#
Valid from engine: 171625. (valid for: AUTOMATIC | 4200 cc)
from £844.28
from £844.28
# 001
MPN: 275214
CRANKSHAFT #IN CASE OF REPLACEMENT OF THE CRANKSHAFT, PLEASE REPLACE ALL ROD AND CRANKCASE BUSHINGS#
Valid from assembly: 0 - 55703. Valid from engine: 0 - 171624. (valid for: AUTOMATIC | 4700 cc)
from £1,443.02
from £1,443.02
This part replaces part number 245066
# 001
MPN: 275214
CRANKSHAFT #IN CASE OF REPLACEMENT OF THE CRANKSHAFT, PLEASE REPLACE ALL ROD AND CRANKCASE BUSHINGS#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC | 4700 cc)
from £1,443.02
from £1,443.02
This part replaces part number 245066
# 001
MPN: 275214
CRANKSHAFT #IN CASE OF REPLACEMENT OF THE CRANKSHAFT, PLEASE REPLACE ALL ROD AND CRANKCASE BUSHINGS#
Valid from engine: 174193. (valid for: AUTOMATIC | 4700 cc)
from £1,443.02
from £1,443.02
This part replaces part number 245066
# 001
MPN: 760882
CRANKSHAFT #SPECIFY CAR SERIAL NUMBER IN THE ORDER#
Valid from engine: 372554. (valid for: AUTOMATIC | 4700 cc)
from £1,510.98
from £1,510.98
This part replaces part number 272395
# 002
MPN: 195307
UPPER HALF-BEARING #BLUE#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £31.51
from £31.51
# 002
MPN: 195307
UPPER HALF-BEARING #BLUE#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £31.51
from £31.51
# 002
MPN: 195308
UPPER HALF-BEARING #YELLOW#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £14.88
from £14.88
# 002
MPN: 195308
UPPER HALF-BEARING #YELLOW#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £14.88
from £14.88
# 002
MPN: 198910
UPPER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £14.88
from £14.88
# 002
MPN: 198910
UPPER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £14.88
from £14.88
# 002
MPN: 268864
UPPER HALF-BEARING #BLUE#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £12.22
from £12.22
# 002
MPN: 268864
UPPER HALF-BEARING #BLUE#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £12.22
from £12.22
# 002
MPN: 268865
UPPER HALF-BEARING #YELLOW#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £11.97
from £11.97
# 002
MPN: 268865
UPPER HALF-BEARING #YELLOW#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £11.97
from £11.97
# 002
MPN: 268866
UPPER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £11.18
from £11.18
# 002
MPN: 268866
UPPER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £11.18
from £11.18
# 002
MPN: 286832
UPPER HALF-BEARING #BLUE#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £10.27
from £10.27
This part replaces part number 195307
# 002
MPN: 286832
UPPER HALF-BEARING #BLUE#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £10.27
from £10.27
This part replaces part number 195307
# 002
MPN: 286833
UPPER HALF-BEARING #YELLOW#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £9.43
from £9.43
This part replaces part number 195308
# 002
MPN: 286833
UPPER HALF-BEARING #YELLOW#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £9.43
from £9.43
This part replaces part number 195308
# 002
MPN: 286834
UPPER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £11.46
from £11.46
This part replaces part number 198910
# 002
MPN: 286834
UPPER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £11.46
from £11.46
This part replaces part number 198910
# 003
MPN: 200194
LOWER HALF-BEARING #BLUE#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £17.25
from £17.25
# 003
MPN: 200194
LOWER HALF-BEARING #BLUE#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £17.25
from £17.25
# 003
MPN: 200195
LOWER HALF-BEARING #YELLOW#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £12.64
from £12.64
# 003
MPN: 200195
LOWER HALF-BEARING #YELLOW#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £12.64
from £12.64
# 003
MPN: 200196
LOWER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £13.84
from £13.84
# 003
MPN: 200196
LOWER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £13.84
from £13.84
# 003
MPN: 268869
LOWER HALF-BEARING #BLUE#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £11.46
from £11.46
# 003
MPN: 268869
LOWER HALF-BEARING #BLUE#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £11.46
from £11.46
# 003
MPN: 268870
LOWER HALF-BEARING #YELLOW#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £11.18
from £11.18
# 003
MPN: 268870
LOWER HALF-BEARING #YELLOW#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £11.18
from £11.18
# 003
MPN: 268871
LOWER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £11.18
from £11.18
# 003
MPN: 268871
LOWER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 17625 - 174192. (valid for: AUTOMATIC)
from £11.18
from £11.18
# 003
MPN: 286837
LOWER HALF-BEARING #YELLOW#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £10.27
from £10.27
This part replaces part number 200195 which we have in stock
# 003
MPN: 286837
LOWER HALF-BEARING #YELLOW#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £10.27
from £10.27
This part replaces part number 200195 which we have in stock
# 003
MPN: 286838
LOWER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £11.46
from £11.46
# 003
MPN: 286838
LOWER HALF-BEARING #GREEN - STANDARD#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £11.46
from £11.46
# 004
MPN: 196648
UPPER SHIM WASHER #STANDARD#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £173.22
from £173.22
# 004
MPN: 201220
UPPER SHIM WASHER #1ST OVERSIZE#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £128.71
from £128.71
# 004
MPN: 201224
UPPER SHIM WASHER #2ND OVERSIZE#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £128.71
from £128.71
# 004
MPN: 222874
SHIM WASHER #STANDARD#
(valid for: AUTOMATIC | AUSTRALIA,CHINA,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £16.79
from £16.79
# 004
MPN: 261727
SHIM WASHER
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £5.58
from £5.58
# 004
MPN: 261727
SHIM WASHER
Valid from engine: 174193. (valid for: AUTOMATIC)
from £5.58
from £5.58
# 005
MPN: 196649
LOWER SHIM WASHER #STANDARD#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £59.00
from £59.00
# 005
MPN: 201225
LOWER SHIM WASHER #1ST OVERSIZE#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £128.71
from £128.71
# 005
MPN: 201226
LOWER SHIM WASHER #2ND OVERSIZE#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £128.71
from £128.71
# 005
MPN: 222874
SHIM WASHER #STANDARD#
(valid for: AUTOMATIC | AUSTRALIA,CHINA,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £16.79
from £16.79
# 005
MPN: 261727
SHIM WASHER
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £5.58
from £5.58
# 005
MPN: 261727
SHIM WASHER
Valid from engine: 174193. (valid for: AUTOMATIC)
from £5.58
from £5.58
# 006
MPN: 257518
torsion damper
(valid for: AUTOMATIC)
from £420.50
from £420.50
This part replaces part number 225848
# 007
MPN: 192106
WASHER
(valid for: AUTOMATIC)
from £3.67
from £3.67
# 008
MPN: 196216
SCREW FOR DAMPER FIXING
(valid for: AUTOMATIC)
from £24.90
from £24.90
This part replaces part number 192005 - and 1 more. Click to view details
# 009
MPN: 188717
GASKET
(valid for: AUTOMATIC)
from £15.77
from £15.77
This part replaces part number 186883
# 010
MPN: 200323
SEAL RING
(valid for: AUTOMATIC)
from £24.95
from £24.95
# 011
MPN: 186201
TAB
(valid for: AUTOMATIC)
from £0.69
from £0.69
# 012
MPN: 268163
CONNECTING ROD SHAFT AND CAP ASSEMBLY #SPECIFY CAR SERIAL NUMBER IN THE ORDER#
Valid from engine: 0 - 174192. (valid for: AUTOMATIC)
from £104.09
from £104.09
# 012
MPN: 268163
CONNECTING ROD SHAFT AND CAP ASSEMBLY #SPECIFY CAR SERIAL NUMBER IN THE ORDER#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £104.09
from £104.09
# 012
MPN: 281167
CONNECTING ROD SHAFT AND CAP ASSEMBLY
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £94.31
from £94.31
This part replaces part number 216295 - and 3 more. Click to view details
# 012
MPN: 281167
CONNECTING ROD SHAFT AND CAP ASSEMBLY #SPECIFY CAR SERIAL NUMBER IN THE ORDER#
(valid for: AUTOMATIC)
from £94.31
from £94.31
This part replaces part number 216295 - and 3 more. Click to view details
# 013
MPN: 226718
RH SIDE ENGINE PISTON WITH RINGS
Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc)
from £1,248.21
from £1,248.21
# 013
MPN: 226720
LH SIDE ENGINE PISTON WITH RINGS
Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc)
from £1,248.21
from £1,248.21
# 013
MPN: 244739
RH SIDE ENGINE PISTON WITH RINGS
Valid from assembly: 0 - 66947. (valid for: AUTOMATIC | 4700 cc)
from £619.50
from £619.50
# 013
MPN: 244740
LH SIDE ENGINE PISTON WITH RINGS
Valid from assembly: 0 - 66947. (valid for: AUTOMATIC | 4700 cc)
from £619.50
from £619.50
# 014
MPN: 175612
SEAL RING #1ST GROOVE#
Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc)
from £63.82
from £63.82
This part replaces part number 187955
# 014
MPN: 206411
SEAL RING #1ST GROOVE#
(valid for: AUTOMATIC | 4700 cc)
from £60.75
from £60.75
# 015
MPN: 206412
SEAL RING #2ND GROOVE#
(valid for: AUTOMATIC | 4700 cc)
from £60.75
from £60.75
# 015
MPN: 226260
SEAL RING #2ND GROOVE#
Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc)
from £40.45
from £40.45
# 016
MPN: 212820
OIL SCRAPER RING #3ND GROOVE#
(valid for: AUTOMATIC | 4700 cc)
from £60.75
from £60.75
# 016
MPN: 226261
OIL SCRAPER RING #3ND GROOVE#
(valid for: AUTOMATIC | 4200 cc)
from £32.48
from £32.48
# 017
MPN: 178890
LOCK RING
(valid for: AUTOMATIC)
from £3.21
from £3.21
# 018
MPN: 198260
PIN
(valid for: AUTOMATIC)
from £20.34
from £20.34
# 019
MPN: 224504
BUSHING
Valid from engine: 0 - 174193. (valid for: AUTOMATIC)
from £10.88
from £10.88
# 020
MPN: 218371
CONNECTING ROD TIGHTENING SCREW
(valid for: AUTOMATIC)
from £19.61
from £19.61
# 021
MPN: 204290
CONNECTING ROD HALF-BEARING #RED - STANDARD#
(valid for: AUTOMATIC)
from £4.82
from £4.82
# 021
MPN: 204290
CONNECTING ROD HALF-BEARING #RED - STANDARD#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £4.82
from £4.82
# 021
MPN: 204291
CONNECTING ROD HALF-BEARING #BLUE#
(valid for: AUTOMATIC)
from £4.82
from £4.82
# 021
MPN: 204291
CONNECTING ROD HALF-BEARING #BLUE#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £4.82
from £4.82
# 021
MPN: 204292
CONNECTING ROD HALF-BEARING #BLACK#
(valid for: AUTOMATIC)
from £4.82
from £4.82
# 021
MPN: 204292
CONNECTING ROD HALF-BEARING #BLACK#
Valid from engine: 0 - 171624. (valid for: AUTOMATIC)
from £4.82
from £4.82
# 021
MPN: 261718
CONNECTING ROD HALF-BEARING #RED - STANDARD#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £9.87
from £9.87
# 021
MPN: 261718
CONNECTING ROD HALF-BEARING #RED - STANDARD#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £9.87
from £9.87
# 021
MPN: 261719
CONNECTING ROD HALF-BEARING #BLUE#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £9.87
from £9.87
# 021
MPN: 261719
CONNECTING ROD HALF-BEARING #BLUE#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £9.87
from £9.87
# 021
MPN: 261720
CONNECTING ROD HALF-BEARING #BLACK#
Valid from engine: 171625 - 174192. (valid for: AUTOMATIC)
from £9.87
from £9.87
# 021
MPN: 261720
CONNECTING ROD HALF-BEARING #BLACK#
Valid from engine: 174193. (valid for: AUTOMATIC)
from £9.87
from £9.87
# 022
MPN: 222571
CYLINDERS LINER
Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc)
from £697.71
from £697.71
# 022
MPN: 243339
CYLINDERS LINER
(valid for: AUTOMATIC | 4700 cc)
from £264.39
from £264.39
# 023
MPN: 186251
GASKET
(valid for: AUTOMATIC)
from £1.57
from £1.57
# 024
MPN: 175657
PISTONS COOLING NOZZLE
Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc)
from £5.27
from £5.27
# 024
MPN: 236813
PISTONS COOLING NOZZLE
(valid for: AUTOMATIC | 4700 cc)
from £4.31
from £4.31
# 025
MPN: 11181474
WASHER
(valid for: AUTOMATIC)
from £0.51
from £0.51
# 026
MPN: 14302921
SCREW
(valid for: AUTOMATIC)
from £0.51
from £0.51
# 027
MPN: 224608
CENTERING PIN
(valid for: AUTOMATIC)
from £1.94
from £1.94
# 029
MPN: 14325540
THREADED PLUG
(valid for: AUTOMATIC | 4700 cc)
from £4.14
from £4.14
