Maserati GranTurismo (2009) AUXILIARY DEVICE BELTS Parts Diagram

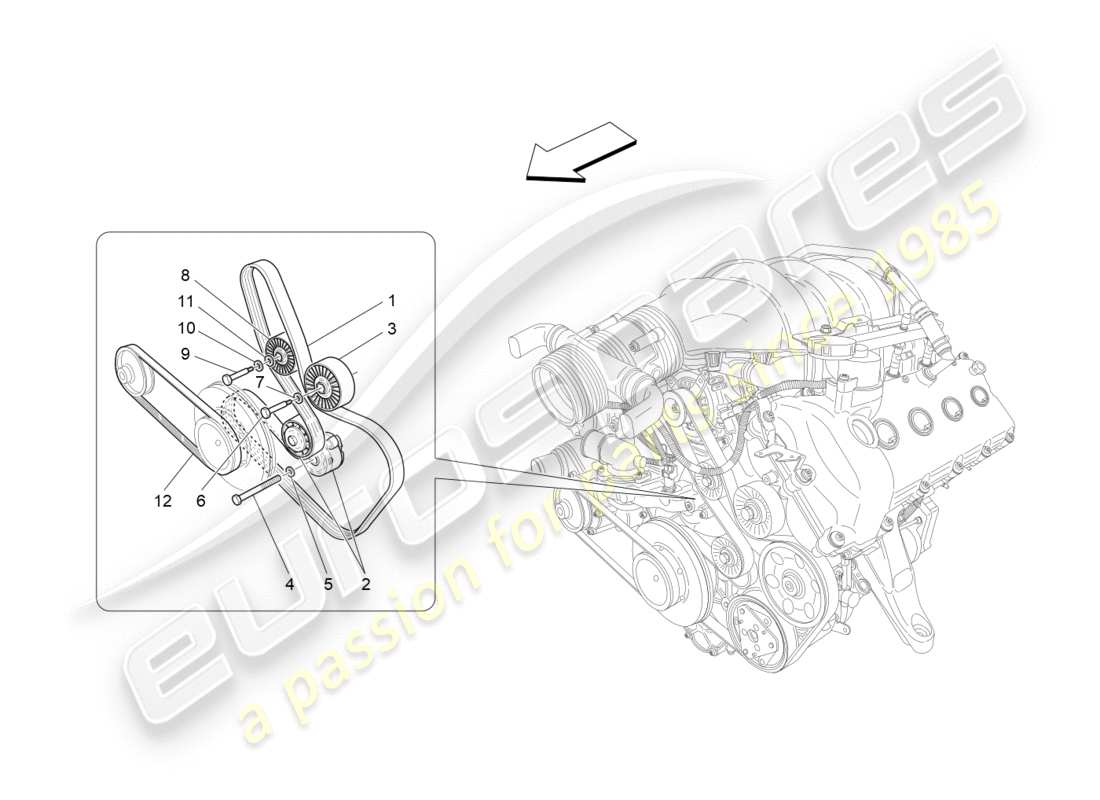

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price

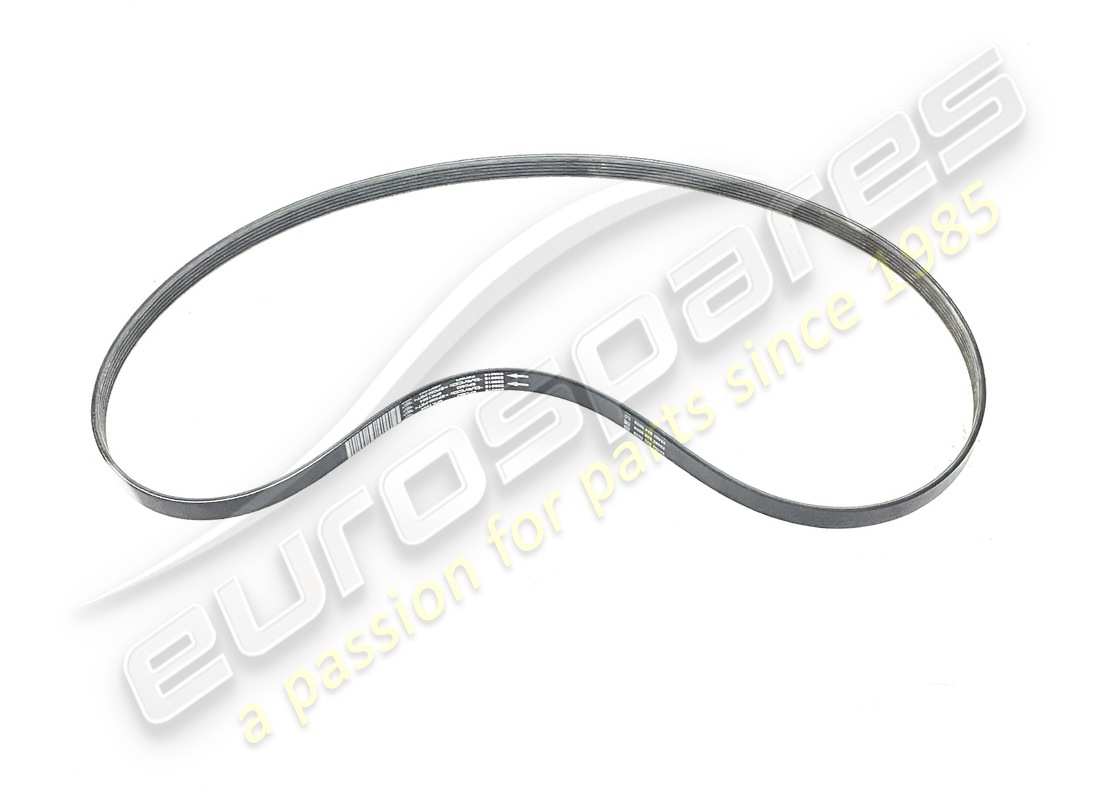

                # 001
                MPN: 239616

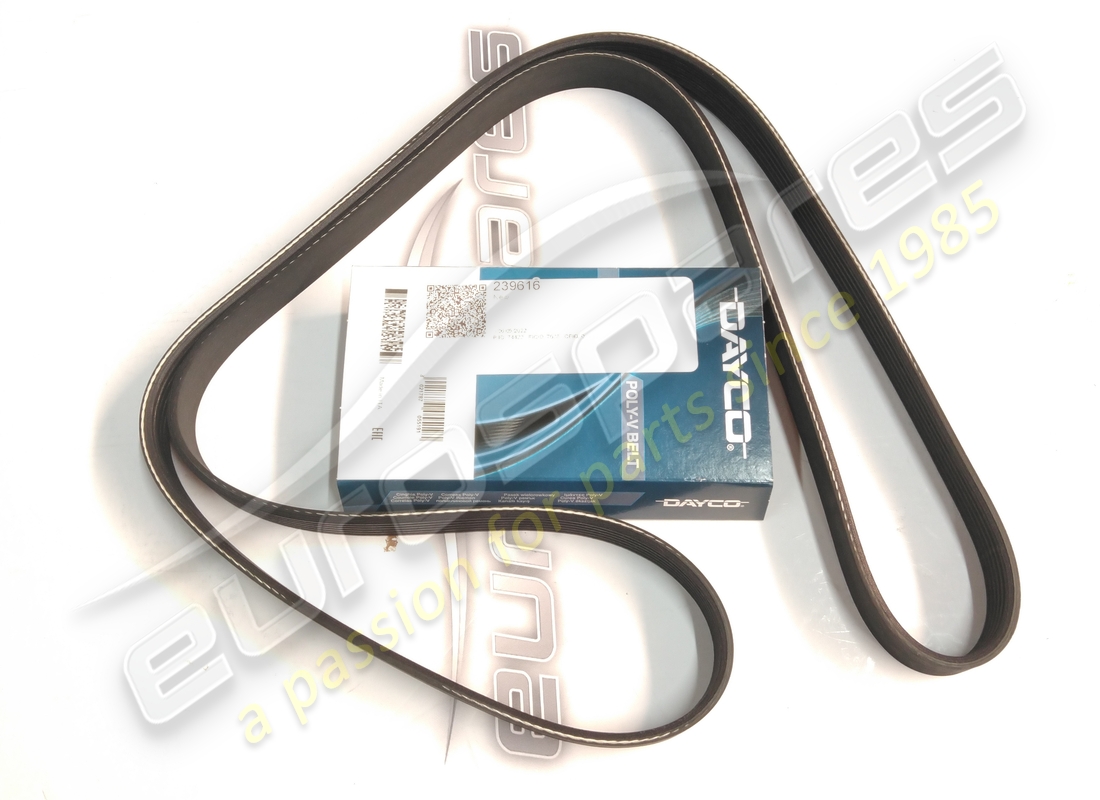

                COMPRESSOR DRIVING BELT
                (valid for: AUTOMATIC)
                from £21.45
                from £21.45
                This part replaces part number 226946

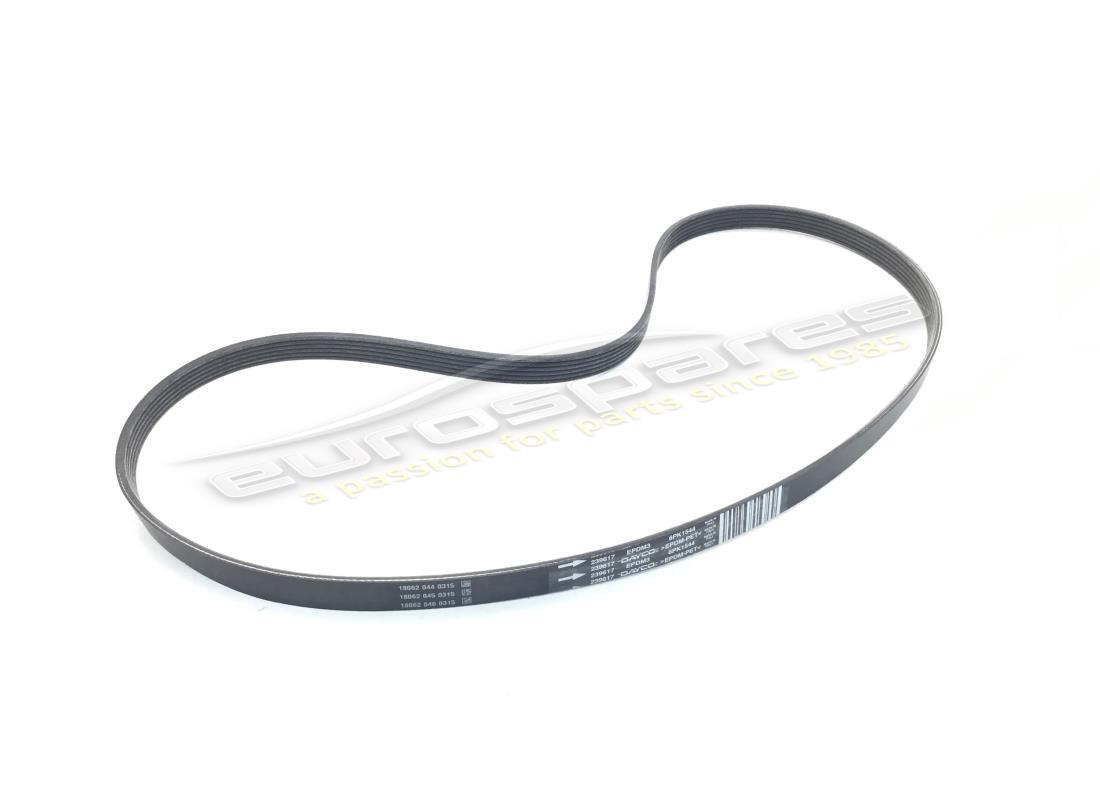

                # 001
                MPN: 239617
                COMPRESSOR DRIVING BELT
                Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc)
                from £29.50
                from £29.50
                This part replaces part number 227990

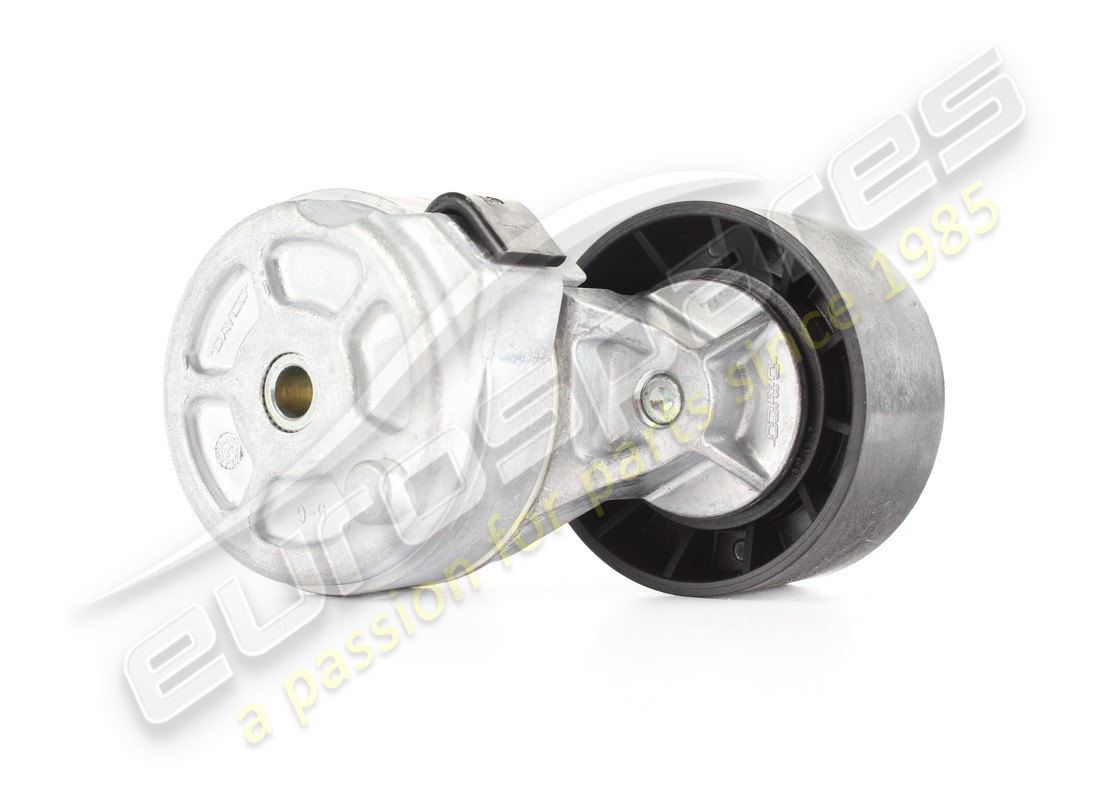

                # 002
                MPN: 224178
                BELT TENSIONER #ORDER ONLY FOR CARS WITH ENGINE # LOWER THAN 196384 OR FOR THIS ENGINE #: 196387-196388-196392-196389-196391-196239-196400-196402-196399-196394-196393#
                Valid from engine: 0 - 180017.
                from £62.76
                from £62.76

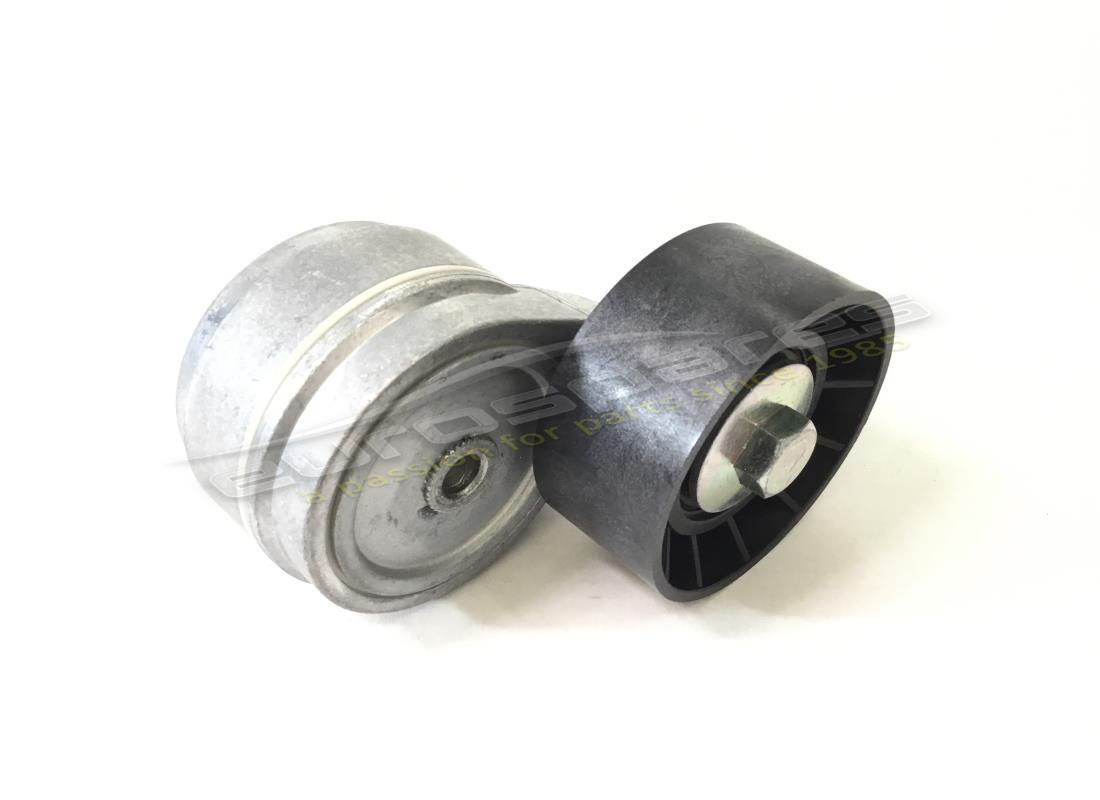

                # 002
                MPN: 224178
                BELT TENSIONER #ORDER ONLY FOR CARS WITH ENGINE # LOWER THAN 196384 OR FOR THIS ENGINE #: 196387-196388-196392-196389-196391-196239-196400-196402-196399-196394-196393#
                Valid from engine: 180018.
                from £62.76
                from £62.76
                # 002
                MPN: 271881
                BELT TENSIONER #ORDER ONLY FOR CARS WITH ENGINE # UPPER THAN 196384 , NOT FOR THIS ENGINE #: 196387-196388-196392-196389-196391-196239-196400-196402-196399-196394-196393, UNLESS IT IS SUPPLIED TOGETHER WITH 284728#
                (valid for: AUSTRALIA,CANADA,CHINA,JAPAN,MIDDLE-EAST,TAIWAN,USA)
                from £64.54
                from £64.54

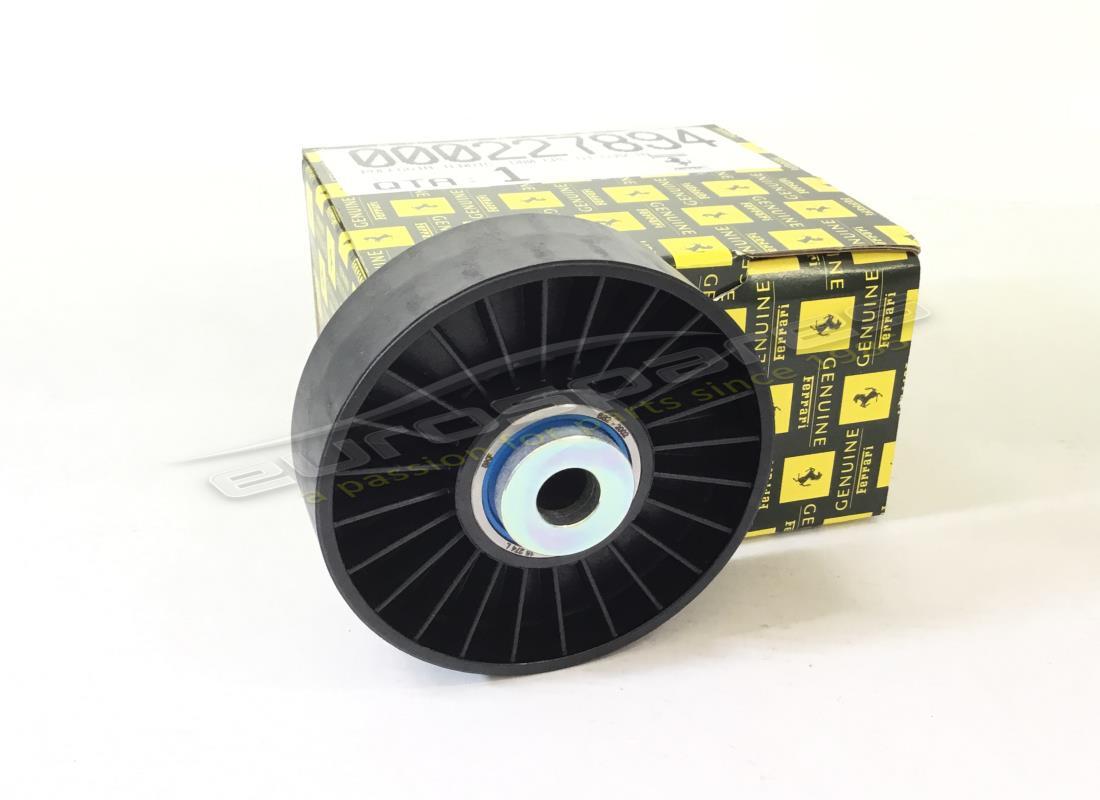

                # 003
                MPN: 172537

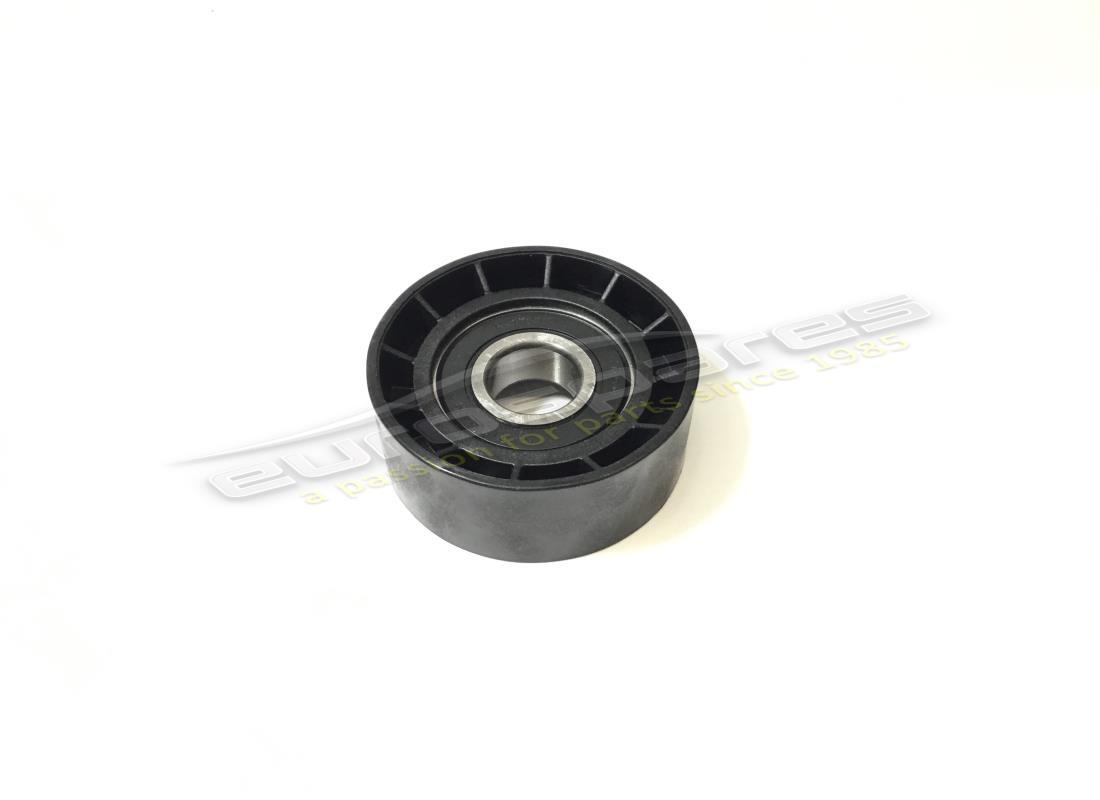

                BELT TIGHTENING PULLEY
                Valid from engine: 0 - 129637.
                from £73.06
                from £73.06

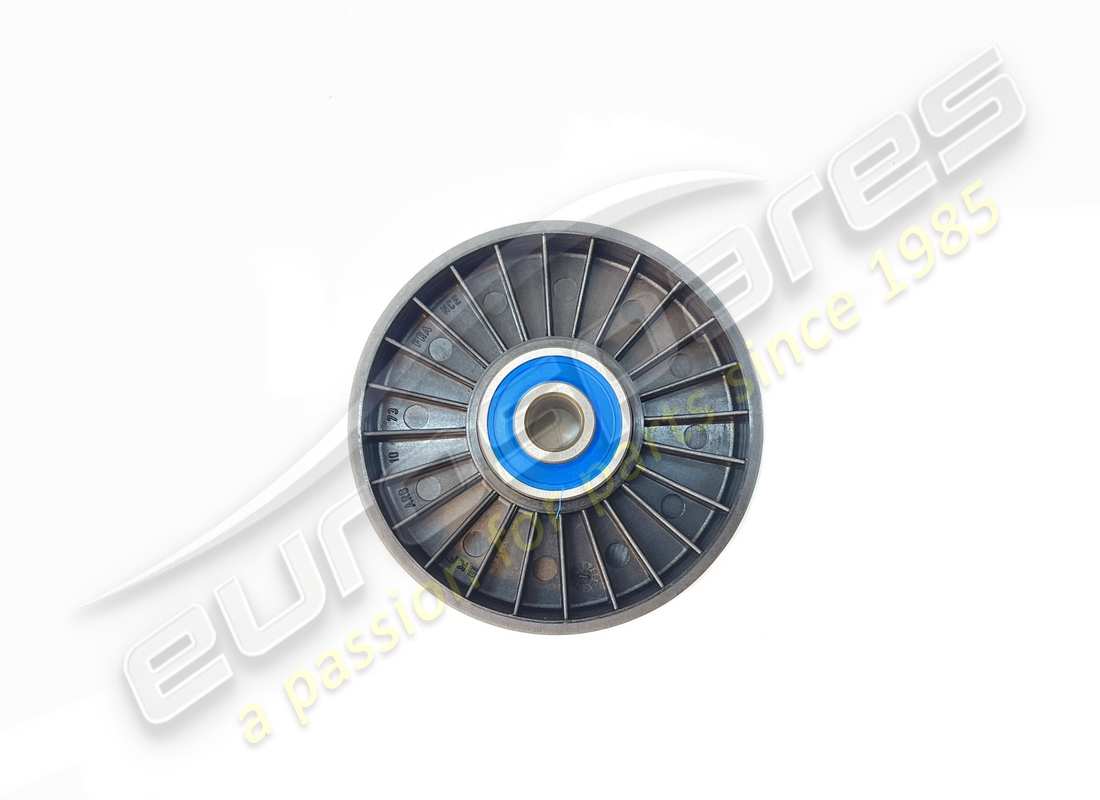

                # 003
                MPN: 227894
                BELT TIGHTENING PULLEY
                Valid from engine: 129638.
                from £41.61
                from £41.61
                # 004
                MPN: 16044431
                SCREW
                from £0.53
                from £0.53
                # 005
                MPN: 11193874
                WASHER [D.8.4-16X1.4]
                from £0.54
                from £0.54
                # 006
                MPN: 11234724
                SCREW
                Valid from engine: 0 - 129637.
                from £0.54
                from £0.54
                # 006
                MPN: 11343821
                SCREW
                Valid from engine: 129638.
                from £0.64
                from £0.64
                # 007
                MPN: 10569474
                WASHER
                Valid from engine: 129638.
                from £0.54
                from £0.54
                # 007
                MPN: 11198374
                WASHER
                Valid from engine: 0 - 129637.
                from £0.47
                from £0.47
                This part replaces part number 675000618

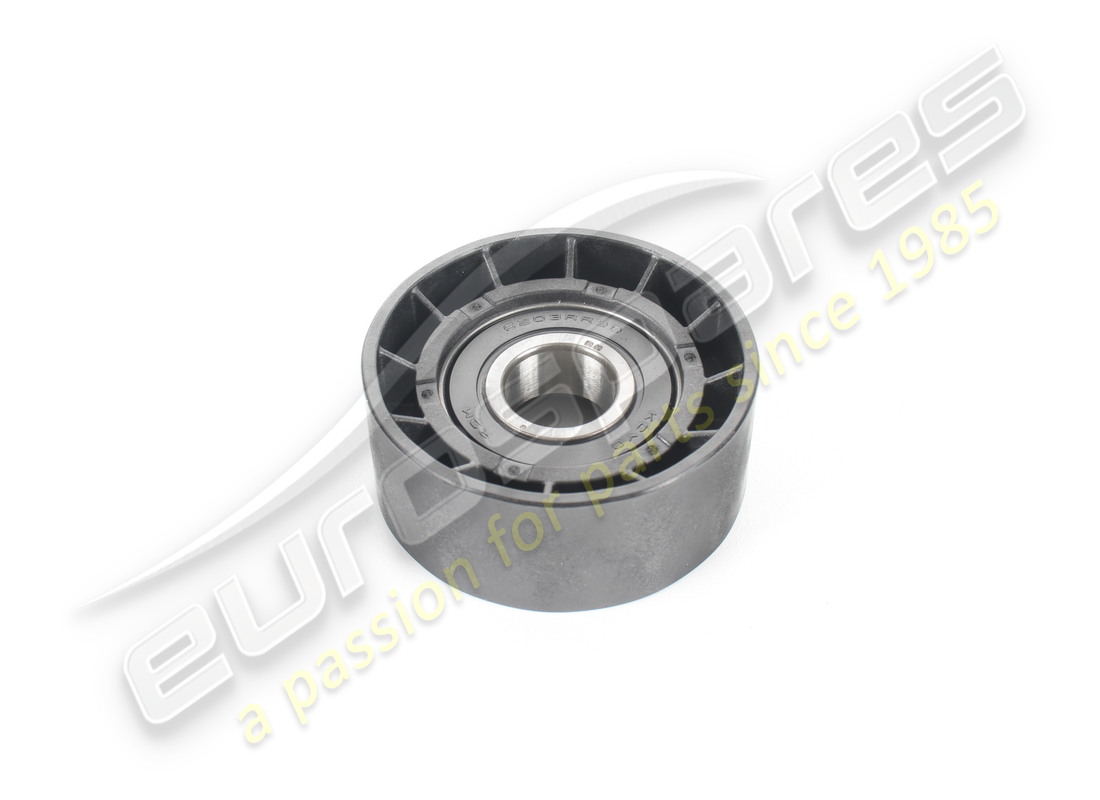

                # 008
                MPN: 226205
                BELT TIGHTENING PULLEY
                from £22.67
                from £22.67
                # 009
                MPN: 16043324
                SCREW
                from £0.53
                from £0.53
                # 011
                MPN: 12647024
                WASHER
                Supersession
                Supersession
