Valid from assembly: 0 - 47216.

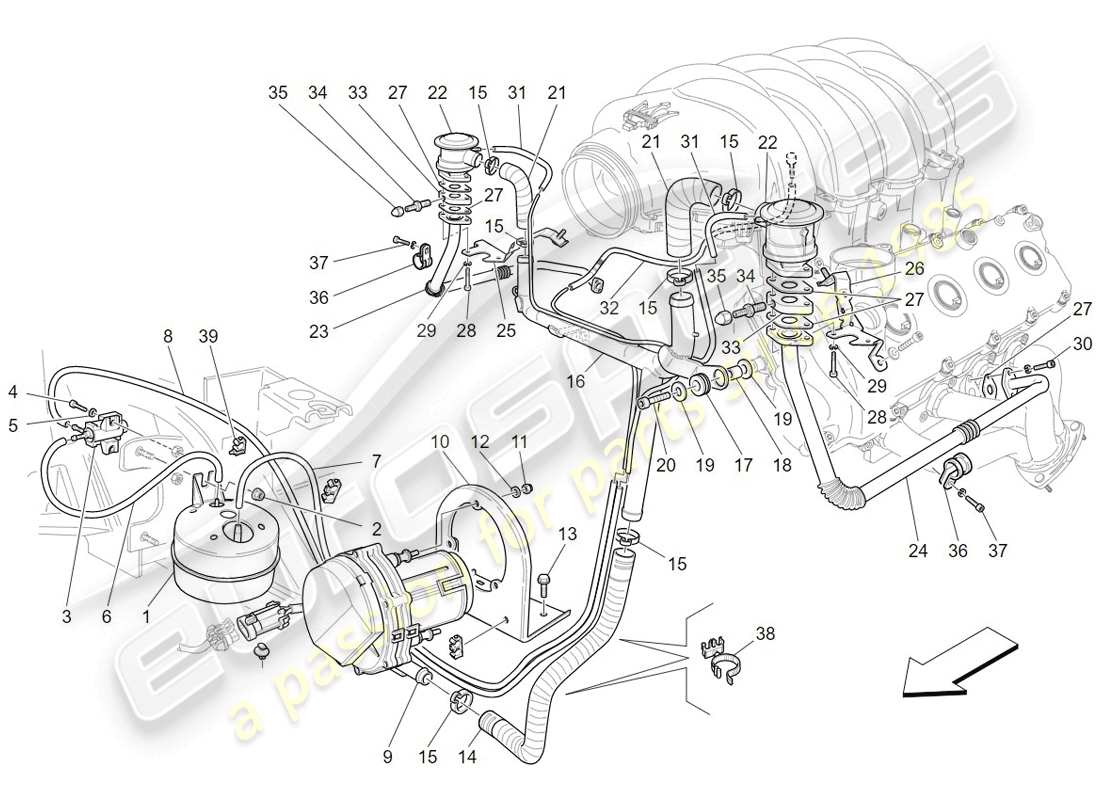

maserati granturismo (2009) additional air system parts diagram

01.50.1 - additional air system

Maserati GranTurismo (2009) ADDITIONAL AIR SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 330328400
VACUUM TANK
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £9.08
from £9.08
# 002
MPN: 14059211
NUT [M6]
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.53
from £0.53
This part replaces part number 675000181
# 003
MPN: 184363
ON/OFF SOLENOID VALVE
Valid from assembly: 0 - 47216. Valid from engine: 0 - 283379. (valid for: AUTOMATIC | 4200 cc)
Supersession
Supersession
# 003
MPN: 315769
ON/OFF SOLENOID VALVE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £28.93
from £28.93
This part replaces part number 184363
# 004
MPN: 14304624
SCREW
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.53
from £0.53
# 005
MPN: 12601174
WASHER [D.5.3-11X0.5]
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.54
from £0.54
This part replaces part number 675000100
# 006
MPN: 238513
SLEEVE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £1.25
from £1.25
This part replaces part number 200131
# 007
MPN: 210658
SLEEVE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £4.96
from £4.96
# 008
MPN: 238514
SLEEVE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £5.45
from £5.45
This part replaces part number 210659
# 009
MPN: 181197
Secondary Air Pump
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £163.21
from £163.21
# 010
MPN: 215965
AIR PUMP FIXING BRACKET
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £12.11
from £12.11
# 011
MPN: 102948
NUT
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.54
from £0.54
# 012
MPN: 12601274
WASHER [D. 6,40-12X 0,5]
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.53
from £0.53
This part replaces part number 12601270
# 013
MPN: 16285924
SCREW
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.53
from £0.53
# 014
MPN: 214540
PIPE FROM AIR PUMP TO VALVE AIR DELIVERY TUBE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £19.52
from £19.52
# 015
MPN: 178054
CLAMP
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.52
from £0.52
# 016
MPN: 224507
VALVE AIR DELIVERY TUBE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £69.96
from £69.96
# 017
MPN: 219456
VIBRATION-DAMPING MOUNT
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £1.40
from £1.40
This part replaces part number 315520375
# 018
MPN: 219457
SPACER
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £14.56
from £14.56
# 019
MPN: 12647727
WASHER
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.47
from £0.47
This part replaces part number 12647729
# 020
MPN: 231618
SCREW [M6X20]
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.53
from £0.53
# 021
MPN: 219583
SLEEVE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £10.75
from £10.75
# 022
MPN: 171175
SECONDARY AIR VALVE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £102.75
from £102.75
# 023
MPN: 226274
RH AIR VALVE PIPE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £52.13
from £52.13
# 024
MPN: 226275
LH AIR VALVE PIPE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £119.63
from £119.63
# 025
MPN: 227001
RH AIR VALVE FIXING BRACKET
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £5.27
from £5.27
# 026
MPN: 227000
LH AIR VALVE FIXING BRACKET
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £7.62
from £7.62
# 027
MPN: 186781
GASKET
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £2.89
from £2.89
# 028
MPN: 231621
SCREW [M6X30]
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.53
from £0.53
# 029
MPN: 127494
WASHER
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.53
from £0.53
# 030
MPN: 231616
SCREW [M6X14]
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.53
from £0.53
# 031
MPN: 121828
RUBBER HOSE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £2.71
from £2.71
# 032
MPN: 230835
RUBBER HOSE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £12.93
from £12.93
# 033
MPN: 210653
SPACER
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £15.09
from £15.09
# 033
MPN: 252813
SPACER
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £29.03
from £29.03
# 034
MPN: 210868
THREADED UNION
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £9.15
from £9.15
# 035
MPN: 150595
NUT
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.58
from £0.58
# 036
MPN: 10441590
BRACKET WITH SHEATH
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.51
from £0.51
# 037
MPN: 233600
SCREW [M6X12]
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.53
from £0.53
# 038
MPN: 209670
CLIP
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £1.92
from £1.92
# 039
MPN: 209928
CLIP
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4200 cc)
from £0.86
from £0.86
