Valid from assembly: 0 - 47216.
01.50.3 - additional air system

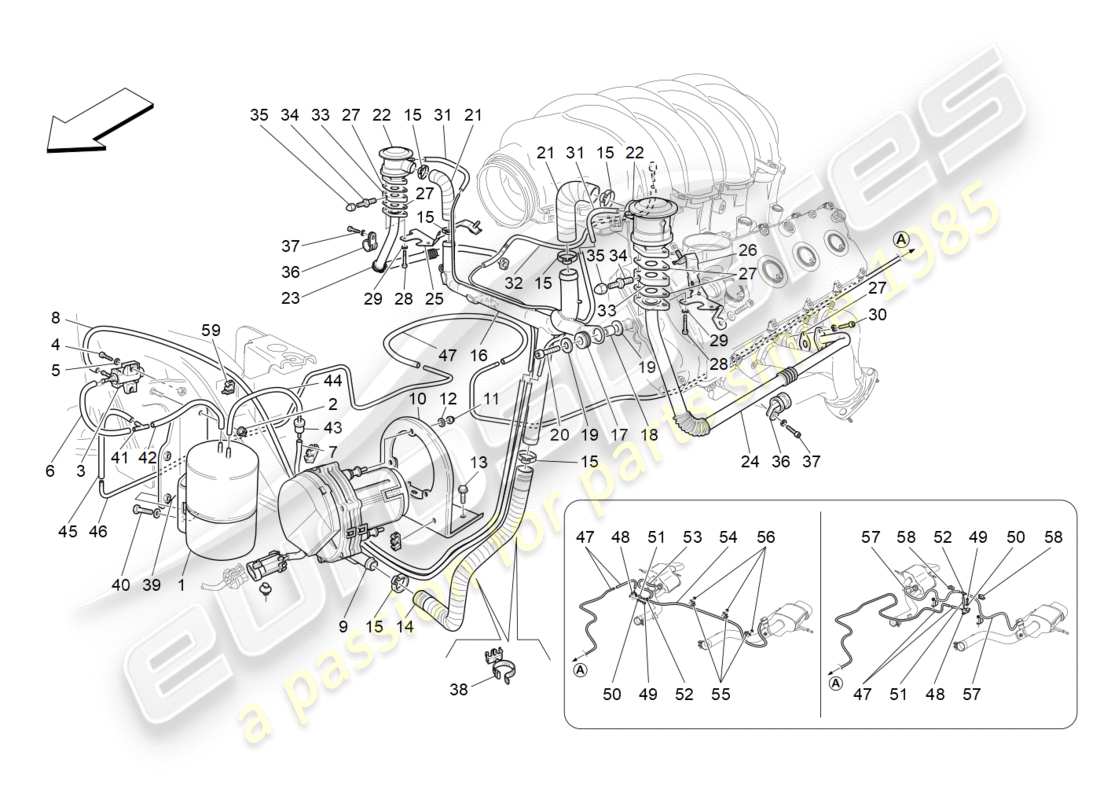

Maserati GranTurismo (2009) ADDITIONAL AIR SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 240380
VACUUM TANK
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £75.45
from £75.45
# 002
MPN: 14059211
NUT [M6]
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
This part replaces part number 675000181
# 003
MPN: 184363
ON/OFF SOLENOID VALVE
Valid from assembly: 0 - 47216. Valid from engine: 0 - 283379. (valid for: 4700 cc)
Supersession
Supersession
# 003
MPN: 315769
ON/OFF SOLENOID VALVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £28.93
from £28.93
This part replaces part number 184363
# 004
MPN: 14304624
SCREW
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
# 005
MPN: 12601174
WASHER [D.5.3-11X0.5]
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.54
from £0.54
This part replaces part number 675000100
# 006
MPN: 234410
SLEEVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £1.19
from £1.19
# 007
MPN: 235376
SLEEVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £3.91
from £3.91
# 008
MPN: 238514
SLEEVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £5.45
from £5.45
This part replaces part number 210659
# 009
MPN: 181197
Secondary Air Pump
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £163.21
from £163.21
# 010
MPN: 215965
AIR PUMP FIXING BRACKET
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £12.11
from £12.11
# 011
MPN: 102948
NUT
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.54
from £0.54
# 012
MPN: 12601274
WASHER [D. 6,40-12X 0,5]
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
This part replaces part number 12601270
# 013
MPN: 16285924
SCREW
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
# 014
MPN: 214540
PIPE FROM AIR PUMP TO VALVE AIR DELIVERY TUBE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £19.52
from £19.52
# 015
MPN: 178054
CLAMP
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.52
from £0.52
# 016
MPN: 224507
VALVE AIR DELIVERY TUBE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £69.96
from £69.96
# 017
MPN: 219456
VIBRATION-DAMPING MOUNT
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £1.40
from £1.40
This part replaces part number 315520375
# 018
MPN: 219457
SPACER
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £14.56
from £14.56
# 019
MPN: 12647727
WASHER
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.47
from £0.47
This part replaces part number 12647729
# 020
MPN: 231618
SCREW [M6X20]
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
# 021
MPN: 219583
SLEEVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £10.75
from £10.75
# 022
MPN: 171175
SECONDARY AIR VALVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £102.75
from £102.75
# 023
MPN: 226274
RH AIR VALVE PIPE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £52.13
from £52.13
# 024
MPN: 226275
LH AIR VALVE PIPE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £119.63
from £119.63
# 025
MPN: 227001
RH AIR VALVE FIXING BRACKET
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £5.27
from £5.27
# 026
MPN: 227000
LH AIR VALVE FIXING BRACKET
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £7.62
from £7.62
# 027
MPN: 186781
GASKET
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £2.89
from £2.89
# 028
MPN: 231621
SCREW [M6X30]
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
# 029
MPN: 127494
WASHER
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
# 030
MPN: 231616
SCREW [M6X14]
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
# 031
MPN: 121828
RUBBER HOSE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £2.71
from £2.71
# 032
MPN: 230835
RUBBER HOSE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £12.93
from £12.93
# 033
MPN: 210653
SPACER
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £15.09
from £15.09
# 033
MPN: 252813
SPACER
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £29.03
from £29.03
# 034
MPN: 210868
THREADED UNION
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £9.15
from £9.15
# 035
MPN: 150595
NUT
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.58
from £0.58
# 036
MPN: 10441590
BRACKET WITH SHEATH
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.51
from £0.51
# 037
MPN: 233600
SCREW [M6X12]
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
# 038
MPN: 209670
CLIP
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £1.92
from £1.92
# 039
MPN: 236872
BRACKET
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £26.28
from £26.28
# 040
MPN: 11730424
SCREW
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £1.54
from £1.54
# 041
MPN: 257691
3-WAY UNION
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.80
from £0.80
This part replaces part number 146972
# 042
MPN: 234403
SLEEVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £3.71
from £3.71
# 043
MPN: 253896
NONRETURN VALVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £23.46
from £23.46
This part replaces part number 62507200
# 044
MPN: 165608
RUBBER HOSE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £1.52
from £1.52
This part replaces part number 235375
# 045
MPN: 234410
SLEEVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £1.19
from £1.19
# 046
MPN: 235338
RIGID PIPE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £37.71
from £37.71
# 047
MPN: 235639
UNDERBODY VACUUM PIPE
Valid from assembly: 0 - 47216. (valid for: CAMBIOCORSA | 4700 cc)
from £63.28
from £63.28
# 047
MPN: 247860
UNDERBODY VACUUM PIPE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4700 cc)
from £63.28
from £63.28
# 048
MPN: 184363
ON/OFF SOLENOID VALVE
Valid from assembly: 0 - 47216. Valid from engine: 0 - 283379. (valid for: 4700 cc)
Supersession
Supersession
# 048
MPN: 315769
ON/OFF SOLENOID VALVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £28.93
from £28.93
This part replaces part number 184363
# 049
MPN: 14304124
SCREW [M5X12]
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.53
from £0.53
# 050
MPN: 12601174
WASHER [D.5.3-11X0.5]
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.54
from £0.54
This part replaces part number 675000100
# 051
MPN: 235640
SLEEVE
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.56
from £0.56
# 052
MPN: 257691
3-WAY UNION
Valid from assembly: 0 - 47216. (valid for: 4700 cc)
from £0.80
from £0.80
This part replaces part number 146972
# 053
MPN: 235642
RUBBER HOSE
Valid from assembly: 0 - 47216. (valid for: CAMBIOCORSA | 4700 cc)
from £2.23
from £2.23
# 054
MPN: 235641
RUBBER HOSE
Valid from assembly: 0 - 47216. (valid for: CAMBIOCORSA | 4700 cc)
from £4.67
from £4.67
# 055
MPN: 10441390
BRACKET WITH SHEATH
Valid from assembly: 0 - 47216. (valid for: CAMBIOCORSA | 4700 cc)
from £0.50
from £0.50
# 056
MPN: 13831811
NUT
Valid from assembly: 0 - 47216. (valid for: CAMBIOCORSA | 4700 cc)
from £0.52
from £0.52
# 057
MPN: 247306
RUBBER HOSE
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4700 cc)
from £32.97
from £32.97
# 058
MPN: 187713
Retaining Clip
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4700 cc)
from £3.14
from £3.14
This part replaces part number 98055
# 059
MPN: 209928
CLIP
Valid from assembly: 0 - 47216. (valid for: AUTOMATIC | 4700 cc)
from £0.86
from £0.86
