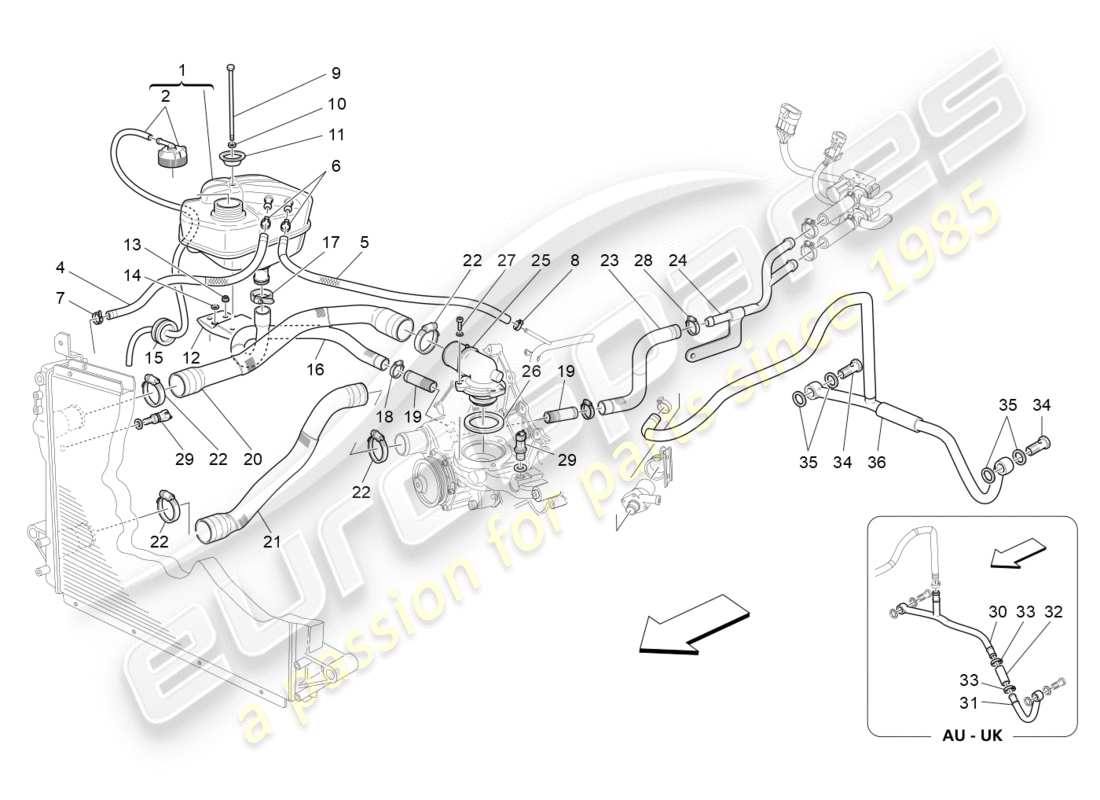

maserati granturismo (2009) cooling system: nourice and lines parts diagram

01.71.2 - cooling system: nourice and lines

Maserati GranTurismo (2009) COOLING SYSTEM: NOURICE AND LINES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 296547
EXPANSION TANK ASSEMBLY
(valid for: CAMBIOCORSA | 4700 cc)
from £41.92
from £41.92
This part replaces part number 226973
# 002
MPN: 980145477
PLUG FOR CPL TANK
(valid for: CAMBIOCORSA | 4700 cc)
from £12.11
from £12.11
This part replaces part number 46556738
# 004
MPN: 230562
VENT PIPE FROM EXPANSION TANK TO RADIATOR
(valid for: CAMBIOCORSA | 4700 cc)
from £14.81
from £14.81
# 005
MPN: 237546
VENT PIPE FROM EXPANSION TANK TO BUNDY
(valid for: CAMBIOCORSA | 4700 cc)
from £16.20
from £16.20
# 006
MPN: 13125470
COLLAR
(valid for: CAMBIOCORSA | 4700 cc)
from £0.53
from £0.53
# 007
MPN: 13000190
SCREW COLLAR
(valid for: CAMBIOCORSA | 4700 cc)
from £0.54
from £0.54
# 008
MPN: 13000390
SCREW COLLAR
(valid for: CAMBIOCORSA | 4700 cc)
from £0.53
from £0.53
This part replaces part number 13121170 - and 1 more. Click to view details
# 009
MPN: 60607472
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £4.83
from £4.83
# 010
MPN: 12601274
WASHER [D. 6,40-12X 0,5]
(valid for: CAMBIOCORSA | 4700 cc)
from £0.54
from £0.54
This part replaces part number 12601270
# 011
MPN: 82404496
WASHER
(valid for: CAMBIOCORSA | 4700 cc)
from £1.89
from £1.89
# 012
MPN: 228422
BRACKET
(valid for: CAMBIOCORSA | 4700 cc)
from £7.66
from £7.66
# 013
MPN: 14065921
NUT
(valid for: CAMBIOCORSA | 4700 cc)
from £0.53
from £0.53
# 014
MPN: 12646634
WASHER
(valid for: CAMBIOCORSA | 4700 cc)
from £1.84
from £1.84
# 015
MPN: 228047
CABLE BUSHING
(valid for: CAMBIOCORSA | 4700 cc)
from £4.15
from £4.15
# 016
MPN: 227136
PIPE FROM NOURICE TO WATER PUMP
(valid for: CAMBIOCORSA | 4700 cc)
from £38.77
from £38.77
# 017
MPN: 13000590
SCREW COLLAR
(valid for: CAMBIOCORSA | 4700 cc)
from £0.47
from £0.47
# 018
MPN: 13000190
SCREW COLLAR
(valid for: CAMBIOCORSA | 4700 cc)
from £0.54
from £0.54
# 019
MPN: 228438
THREADED UNION
(valid for: CAMBIOCORSA | 4700 cc)
from £3.77
from £3.77
# 020
MPN: 237593
DELIVERY PIPE FROM ENGINE TO RADIATOR
(valid for: CAMBIOCORSA | 4700 cc)
from £42.33
from £42.33
# 021
MPN: 237594
RETURN PIPE FROM RADIATOR TO ENGINE
(valid for: CAMBIOCORSA | 4700 cc)
from £26.39
from £26.39
# 022
MPN: 13000790
SCREW COLLAR
(valid for: CAMBIOCORSA | 4700 cc)
from £0.53
from £0.53
This part replaces part number 312420106
# 023
MPN: 69418200
RUBBER HOSE TO WATER PUMP
(valid for: CAMBIOCORSA | 4700 cc)
from £38.35
from £38.35
# 024
MPN: 69417100
RIGID PIPE
(valid for: CAMBIOCORSA | 4700 cc)
from £28.93
from £28.93
# 025
MPN: 230890
THERMOSTAT COVER WITH PRESSURE GAUGE
(valid for: CAMBIOCORSA | 4700 cc)
from £87.22
from £87.22
This part replaces part number 224623
# 026
MPN: 137873
GASKET
(valid for: CAMBIOCORSA | 4700 cc)
from £2.95
from £2.95
# 027
MPN: 231617
SCREW [M6X18]
(valid for: CAMBIOCORSA | 4700 cc)
from £0.53
from £0.53
# 028
MPN: 13097090
COLLAR
(valid for: CAMBIOCORSA | 4700 cc)
from £2.30
from £2.30
# 029
MPN: 180137
WATER TEMPERATURE SENSOR
(valid for: CAMBIOCORSA | 4700 cc)
from £9.88
from £9.88
# 030
MPN: 210083
WATER PIPE FROM RH CYLINDER HEAD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £180.95
from £180.95
# 031
MPN: 210084
WATER PIPE FROM LH CYLINDER HEAD
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £55.30
from £55.30
# 032
MPN: 203784
SLEEVE
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £6.49
from £6.49
# 033
MPN: 178053
CLAMP
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £0.97
from £0.97
# 034
MPN: 203787
FILLER NECK
(valid for: CAMBIOCORSA | 4700 cc)
from £5.75
from £5.75
# 035
MPN: 10259960
GASKET
(valid for: CAMBIOCORSA | 4700 cc)
from £0.47
from £0.47
# 036
MPN: 219483
WATER SYSTEM FROM CYLINDER HEADS
(valid for: CAMBIOCORSA | 4700 cc | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £212.06
from £212.06
