Valid from assembly: 0 - 91906.
maserati granturismo (2009) friction discs and housing for f1 gearbox parts diagram

02.11.1 - Friction Discs And Housing For F1 Gearbox

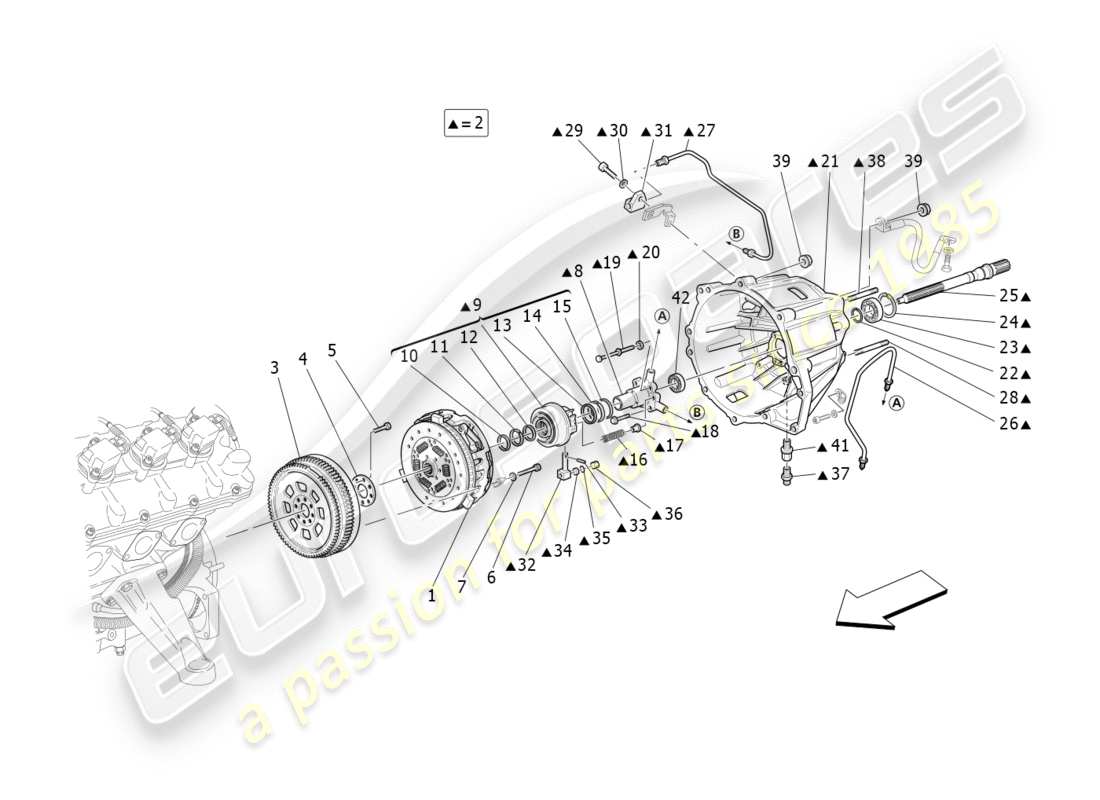

Maserati GranTurismo (2009) FRICTION DISCS AND HOUSING FOR F1 GEARBOX Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 228738
COMPLETE CLUTCH
(valid for: CAMBIOCORSA | 4700 cc)
from £1,650.94
from £1,650.94
This part replaces part number 209824
# 002
MPN: 236412
CPL CLUTCH HOUSING CAP
(valid for: CAMBIOCORSA | 4700 cc)
from £2,045.24
from £2,045.24
# 003
MPN: 230426
ENGINE FLYWHEEL ASSEMBLY
(valid for: CAMBIOCORSA | 4700 cc)
from £401.38
from £401.38
This part replaces part number 185983
# 004
MPN: 215963
FLYWHEEL FASTENING WASHER
(valid for: CAMBIOCORSA | 4700 cc)
from £4.09
from £4.09
This part replaces part number 103876
# 005
MPN: 201755
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £1.16
from £1.16
This part replaces part number 103875
# 006
MPN: 216771
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £1.34
from £1.34
# 007
MPN: 11194377
WASHER
(valid for: CAMBIOCORSA | 4700 cc)
from £0.71
from £0.71
# 008
MPN: 182952
BEARING SUPPORTING FLANGE
(valid for: CAMBIOCORSA | 4700 cc)
from £357.74
from £357.74
# 009
MPN: 234953
COMPLETE THRUST BEARING
(valid for: CAMBIOCORSA | 4700 cc)
from £495.00
from £495.00
This part replaces part number 190771 - and 1 more. Click to view details
# 010
MPN: 181837
SCRAPER RING
(valid for: CAMBIOCORSA | 4700 cc)
from £13.30
from £13.30
# 011
MPN: 170416
RING
(valid for: CAMBIOCORSA | 4700 cc)
from £1.21
from £1.21
This part replaces part number 181839
# 012
MPN: 181838
SEAL RING
(valid for: CAMBIOCORSA | 4700 cc)
from £12.46
from £12.46
# 013
MPN: 181828
SEAL RING
(valid for: CAMBIOCORSA | 4700 cc)
from £15.54
from £15.54
# 014
MPN: 154507
RING
(valid for: CAMBIOCORSA | 4700 cc)
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 014
MPN: 170419
RING #AS AN ALTERNATIVE#
(valid for: CAMBIOCORSA | 4700 cc)
from £4.17
from £4.17
# 015
MPN: 181836
SCRAPER RING
(valid for: CAMBIOCORSA | 4700 cc)
from £14.64
from £14.64
# 016
MPN: 155207
PRELOAD SPRING
(valid for: CAMBIOCORSA | 4700 cc)
from £2.25
from £2.25
# 017
MPN: 155206
SPACER FOR SPRING #NOT FOR CARS WITH COMPLETE THRUST BEARING 234953#
(valid for: CAMBIOCORSA | 4700 cc)
from £1.82
from £1.82
# 018
MPN: 16286224
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £1.55
from £1.55
# 019
MPN: 182955
END STROKE STUD
(valid for: CAMBIOCORSA | 4700 cc)
from £16.05
from £16.05
# 020
MPN: 12601274
WASHER [D. 6,40-12X 0,5]
(valid for: CAMBIOCORSA | 4700 cc)
from £0.53
from £0.53
This part replaces part number 12601270
# 021
MPN: 233857
CLUTCH HOUSING CAP
(valid for: CAMBIOCORSA | 4700 cc)
from £838.95
from £838.95
# 022
MPN: 144511
LOCK RING
(valid for: CAMBIOCORSA | 4700 cc)
from £1.55
from £1.55
# 023
MPN: 174470
BEARING
(valid for: CAMBIOCORSA | 4700 cc)
from £29.78
from £29.78
# 024
MPN: 182963
LOCK RING
(valid for: CAMBIOCORSA | 4700 cc)
from £2.37
from £2.37
# 025
MPN: 233859
CLUTCH SHAFT
(valid for: CAMBIOCORSA | 4700 cc)
from £187.57
from £187.57
# 026
MPN: 219574
CLUTCH OIL BLEED PIPE
(valid for: CAMBIOCORSA | 4700 cc)
from £66.38
from £66.38
# 027
MPN: 219575
CLUTCH OIL DELIVERY PIPE
(valid for: CAMBIOCORSA | 4700 cc)
from £36.51
from £36.51
# 028
MPN: 13547334
STUD
(valid for: CAMBIOCORSA | 4700 cc)
from £4.00
from £4.00
# 029
MPN: 14305534
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £1.42
from £1.42
# 030
MPN: 12604274
WASHER
(valid for: CAMBIOCORSA | 4700 cc)
from £0.54
from £0.54
# 031
MPN: 139471
TWO-WAY UNION
(valid for: CAMBIOCORSA | 4700 cc)
from £12.84
from £12.84
# 032
MPN: 166676
PIN
(valid for: CAMBIOCORSA | 4700 cc)
from £19.02
from £19.02
# 033
MPN: 14158570
FLEXIBLE PIN
(valid for: CAMBIOCORSA | 4700 cc)
from £0.54
from £0.54
# 034
MPN: 165676
MAGNET
(valid for: CAMBIOCORSA | 4700 cc)
from £74.74
from £74.74
# 035
MPN: 165658
O.R. GASKET
(valid for: CAMBIOCORSA | 4700 cc)
from £4.26
from £4.26
# 036
MPN: 167802
PLUG
(valid for: CAMBIOCORSA | 4700 cc)
from £21.56
from £21.56
# 037
MPN: 121699
BLEEDER SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £11.66
from £11.66
# 038
MPN: 13546334
STUD
(valid for: CAMBIOCORSA | 4700 cc)
from £0.61
from £0.61
# 039
MPN: 14059421
NUT
(valid for: CAMBIOCORSA | 4700 cc)
from £0.52
from £0.52
This part replaces part number 156462
# 041
MPN: 207451
UNION
(valid for: CAMBIOCORSA | 4700 cc)
from £131.26
from £131.26
# 042
MPN: 236721
BEARING
(valid for: CAMBIOCORSA | 4700 cc)
from £40.79
from £40.79
