Valid from assembly: 0 - 91906.
maserati granturismo (2009) lay shaft gears parts diagram

03.12.1 - Lay Shaft Gears

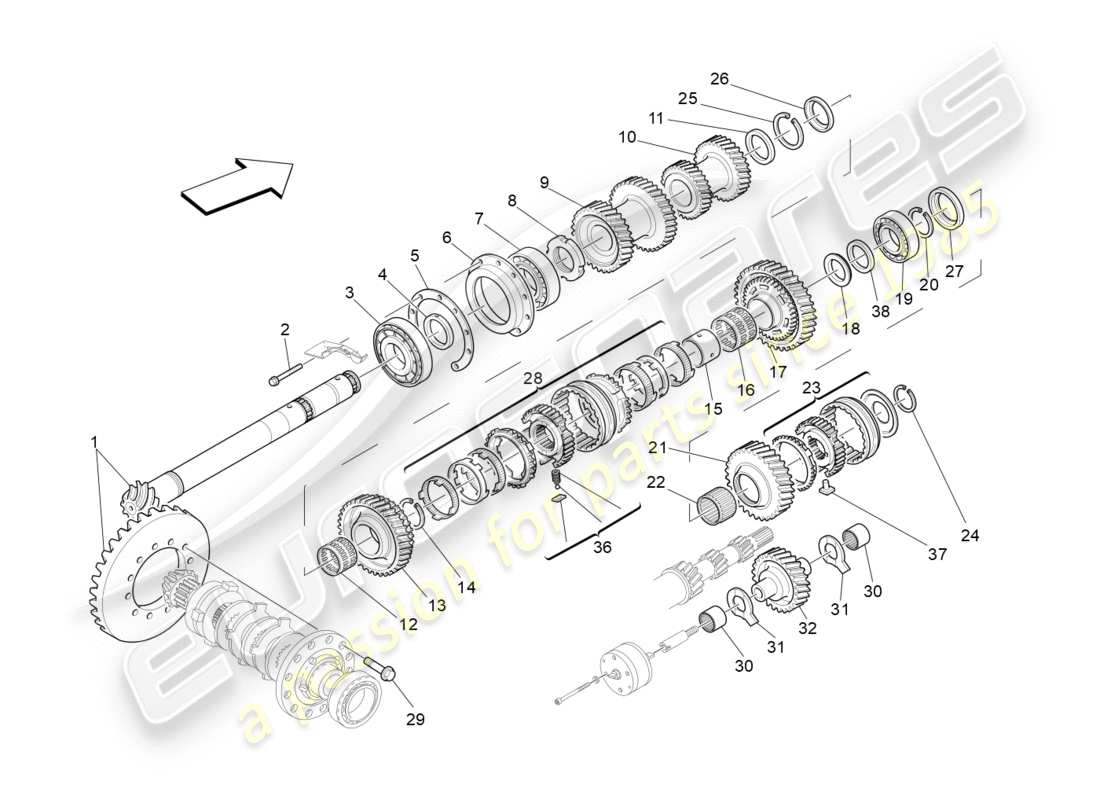

Maserati GranTurismo (2009) LAY SHAFT GEARS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 219689
COMPLETE BEVEL SET
(valid for: CAMBIOCORSA | 4700 cc)
from £1,270.53
from £1,270.53
# 002
MPN: 16287734
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £0.77
from £0.77
This part replaces part number 16287731 which we have in stock
# 003
MPN: 185022
ROLLER BEARING
(valid for: CAMBIOCORSA | 4700 cc)
from £85.26
from £85.26
# 004
MPN: 219717
SPACER RING #THICKNESS MM. 8,60#
(valid for: CAMBIOCORSA | 4700 cc)
from £52.79
from £52.79
# 005
MPN: 185042
SPACER RING #THICKNESS MM. 2,8#
(valid for: CAMBIOCORSA | 4700 cc)
from £6.91
from £6.91
# 005
MPN: 185043
SPACER RING #THICKNESS MM. 2,5 - POSSIBLE FITTING#
(valid for: CAMBIOCORSA | 4700 cc)
from £9.56
from £9.56
# 005
MPN: 185044
SPACER RING #THICKNESS MM. 2,2 - POSSIBLE FITTING#
(valid for: CAMBIOCORSA | 4700 cc)
from £14.77
from £14.77
# 006
MPN: 219718
BEARING SUPPORT
(valid for: CAMBIOCORSA | 4700 cc)
from £84.90
from £84.90
# 007
MPN: 219720
ROLLER BEARING
(valid for: CAMBIOCORSA | 4700 cc)
from £60.66
from £60.66
# 008
MPN: 196667
RING NUT
(valid for: CAMBIOCORSA | 4700 cc)
from £39.84
from £39.84
# 009
MPN: 214802
3RD AND 4TH DRIVEN GEAR
(valid for: CAMBIOCORSA | 4700 cc)
from £330.49
from £330.49
# 010
MPN: 214801
5TH AND 6TH DRIVEN GEAR
(valid for: CAMBIOCORSA | 4700 cc)
from £311.81
from £311.81
# 011
MPN: 188497
SPACER #THICKNESS MM. 6,25#
(valid for: CAMBIOCORSA | 4700 cc)
from £27.75
from £27.75
# 011
MPN: 212457
SPACER #THICKNESS MM. 6,00 - AS AN ALTERNATIVE#
(valid for: CAMBIOCORSA | 4700 cc)
from £65.84
from £65.84
# 012
MPN: 184014
ROLLER CAGE
(valid for: CAMBIOCORSA | 4700 cc)
from £10.20
from £10.20
# 013
MPN: 220016
COMPLETE PINION FOR 2ND GEAR
(valid for: CAMBIOCORSA | 4700 cc)
from £191.02
from £191.02
# 014
MPN: 183976
CIRCLIP #THICKNESS MM. 2,10#
(valid for: CAMBIOCORSA | 4700 cc)
from £6.56
from £6.56
# 014
MPN: 185036
CIRCLIP #THICKNESS MM. 1,85 - POSSIBLE FITTING#
(valid for: CAMBIOCORSA | 4700 cc)
from £24.00
from £24.00
# 014
MPN: 185037
CIRCLIP #THICKNESS MM. 1,60 - POSSIBLE FITTING#
(valid for: CAMBIOCORSA | 4700 cc)
from £23.35
from £23.35
# 015
MPN: 183971
BUSHING
(valid for: CAMBIOCORSA | 4700 cc)
from £43.71
from £43.71
# 016
MPN: 184016
ROLLER CAGE
(valid for: CAMBIOCORSA | 4700 cc)
from £15.32
from £15.32
# 017
MPN: 220015
COMPLETE PINION FOR 1ST GEAR
(valid for: CAMBIOCORSA | 4700 cc)
from £191.02
from £191.02
# 018
MPN: 183972
RING #THICKNESS MM. 5,10#
(valid for: CAMBIOCORSA | 4700 cc)
from £42.04
from £42.04
# 018
MPN: 185040
RING #THICKNESS MM. 4,85 - POSSIBLE FITTING#
(valid for: CAMBIOCORSA | 4700 cc)
from £28.42
from £28.42
# 018
MPN: 185041
RING #THICKNESS MM. 4,60 - POSSIBLE FITTING#
(valid for: CAMBIOCORSA | 4700 cc)
from £20.13
from £20.13
# 019
MPN: 184020
ROLLER BEARING
(valid for: CAMBIOCORSA | 4700 cc)
from £77.23
from £77.23
# 020
MPN: 184042
CIRCLIP
(valid for: CAMBIOCORSA | 4700 cc)
from £6.76
from £6.76
# 021
MPN: 198602
COMPLETE PINION FOR REVERSE GEAR
Valid from assembly: 0 - 77966. (valid for: CAMBIOCORSA | 4700 cc)
from £621.97
from £621.97
# 022
MPN: 184018
ROLLER CAGE
(valid for: CAMBIOCORSA | 4700 cc)
from £15.29
from £15.29
# 023
MPN: 326260
REVERSE GEAR COMPLETE SYNCHRONIZER #REPLACE BOTH P/N 326259 AND 326260 TOGETHER TO PROPERLY ASSIST THIS REPLACEMENT#
(valid for: CAMBIOCORSA | 4700 cc)
from £1,184.72
from £1,184.72
This part replaces part number 193439
# 024
MPN: 184041
CIRCLIP
(valid for: CAMBIOCORSA | 4700 cc)
from £3.09
from £3.09
# 025
MPN: 183976
CIRCLIP #THICKNESS MM. 2,10#
(valid for: CAMBIOCORSA | 4700 cc)
from £6.56
from £6.56
# 025
MPN: 185036
CIRCLIP #THICKNESS MM. 1,85 - POSSIBLE FITTING#
(valid for: CAMBIOCORSA | 4700 cc)
from £24.00
from £24.00
# 025
MPN: 185037
CIRCLIP #THICKNESS MM. 1,60 - POSSIBLE FITTING#
(valid for: CAMBIOCORSA | 4700 cc)
from £23.35
from £23.35
# 026
MPN: 203800
RING #THICKNESS MM. 7,6#
(valid for: CAMBIOCORSA | 4700 cc)
from £14.08
from £14.08
# 026
MPN: 203801
RING #THICKNESS MM. 7,3 - AS AN ALTERNATIVE#
(valid for: CAMBIOCORSA | 4700 cc)
from £43.14
from £43.14
# 027
MPN: 200979
SPACER
(valid for: CAMBIOCORSA | 4700 cc)
from £33.84
from £33.84
# 028
MPN: 185164
1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
(valid for: CAMBIOCORSA | 4700 cc)
from £718.68
from £718.68
# 029
MPN: 183909
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £3.28
from £3.28
# 030
MPN: 184017
NEEDLE BEARING
(valid for: CAMBIOCORSA | 4700 cc)
from £4.88
from £4.88
# 031
MPN: 183975
RING
(valid for: CAMBIOCORSA | 4700 cc)
from £13.71
from £13.71
# 032
MPN: 198612
IDLE GEAR FOR REVERSE
(valid for: CAMBIOCORSA | 4700 cc)
from £362.49
from £362.49
# 036
MPN: 188320
PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
(valid for: CAMBIOCORSA | 4700 cc)
from £6.75
from £6.75
# 037
MPN: 193440
PADS/SYNCHRO REVERSE GEAR KIT
(valid for: CAMBIOCORSA | 4700 cc)
from £2.32
from £2.32
This part replaces part number 193484
# 038
MPN: 182326
SPACER
(valid for: CAMBIOCORSA | 4700 cc)
from £38.64
from £38.64
