maserati granturismo (2009) transmission shaft parts diagram

03.30.1 - transmission shaft

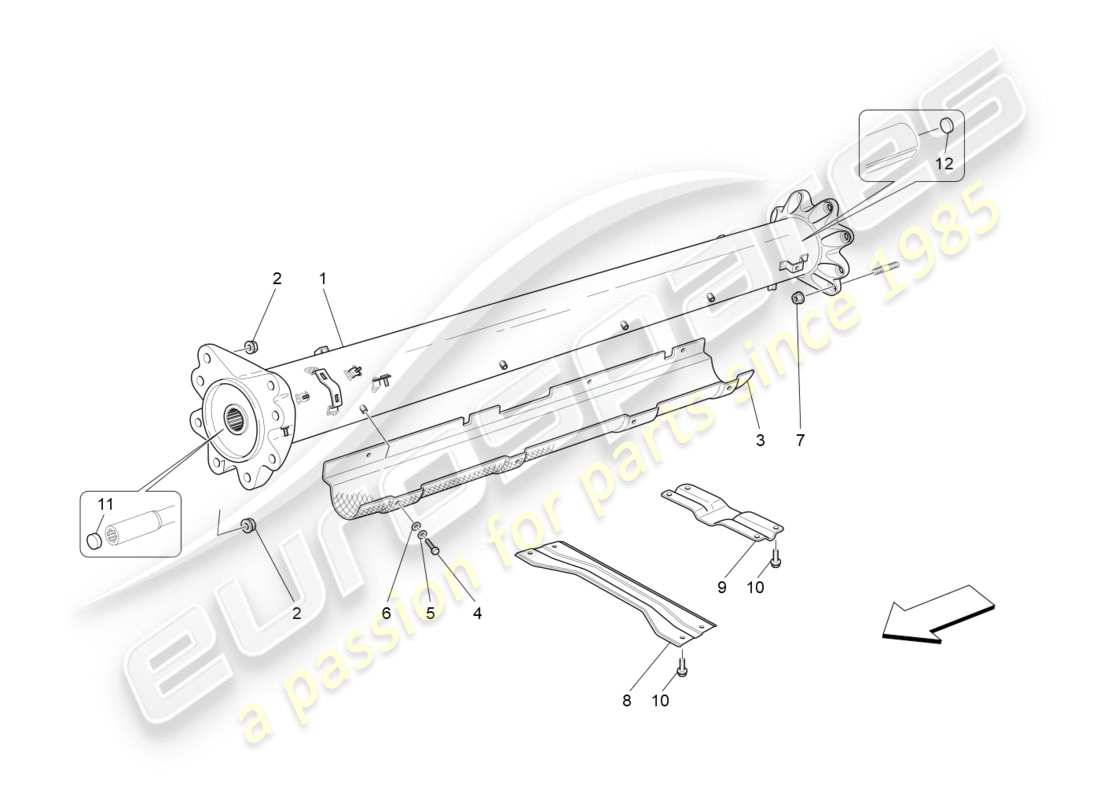

Maserati GranTurismo (2009) TRANSMISSION SHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 236052
ENGINE-GEARBOX CONNECTING TUBE
(valid for: CAMBIOCORSA | 4700 cc)
from £1,837.92
from £1,837.92
# 002
MPN: 14059421
NUT
(valid for: CAMBIOCORSA | 4700 cc)
from £0.51
from £0.51
This part replaces part number 156462
# 003
MPN: 226268
TRANSMISSION HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc)
from £21.24
from £21.24
This part replaces part number 197003 - and 1 more. Click to view details
# 004
MPN: 10856821
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £0.51
from £0.51
# 005
MPN: 12601174
WASHER [D.5.3-11X0.5]
(valid for: CAMBIOCORSA | 4700 cc)
from £0.53
from £0.53
This part replaces part number 675000100
# 006
MPN: 12637824
WASHER
(valid for: CAMBIOCORSA | 4700 cc)
from £0.47
from £0.47
# 007
MPN: 226268
TRANSMISSION HEAT SHIELD
(valid for: CAMBIOCORSA | 4700 cc)
from £21.24
from £21.24
This part replaces part number 197003 - and 1 more. Click to view details
# 008
MPN: 69508200
FRONT CROSS MEMBER
(valid for: CAMBIOCORSA | 4700 cc)
from £13.99
from £13.99
# 009
MPN: 69507400
REAR CROSS MEMBER
(valid for: CAMBIOCORSA | 4700 cc)
from £8.91
from £8.91
# 010
MPN: 11617324
SCREW [TE M8X18]
(valid for: CAMBIOCORSA | 4700 cc)
from £1.85
from £1.85
# 011
MPN: 191902
SPACER
(valid for: CAMBIOCORSA | 4700 cc)
from £19.55
from £19.55
# 012
MPN: 144443
SPACER
(valid for: CAMBIOCORSA | 4700 cc)
from £2.25
from £2.25
