03.41.1 - Gearbox Activation Hydraulics: Tank And Pump

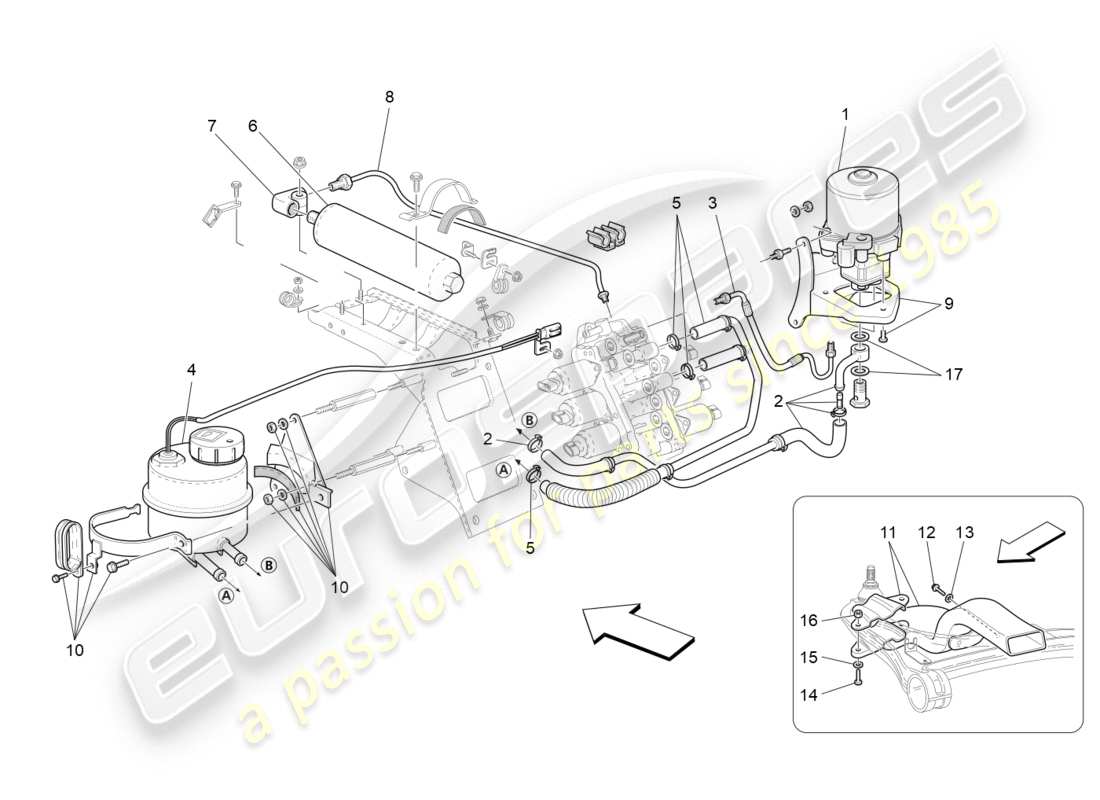

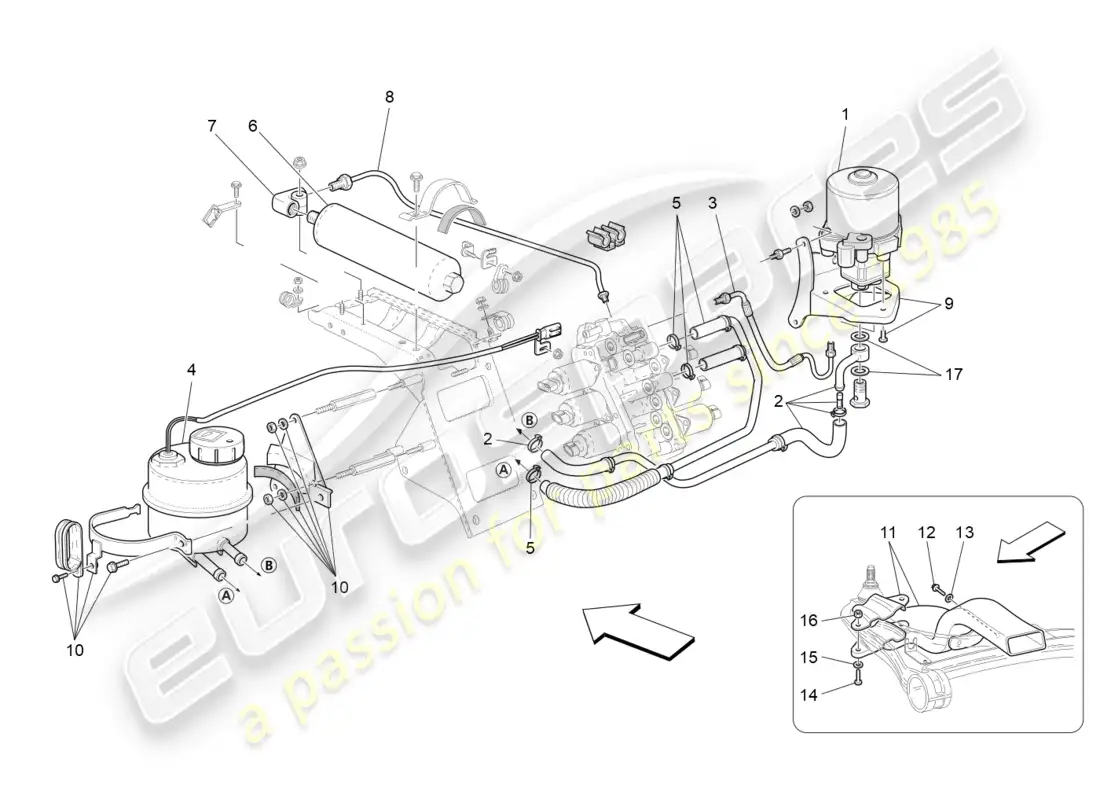

Maserati GranTurismo (2009) GEARBOX ACTIVATION HYDRAULICS: TANK AND PUMP Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 248087
HYDRAULIC PUMP KIT
(valid for: CAMBIOCORSA | 4700 cc)
from £1,216.08
from £1,216.08
# 002
MPN: 260535
COMPLETE PIPE
(valid for: CAMBIOCORSA | 4700 cc)
from £1,231.18
from £1,231.18
# 003
MPN: 260532
COMPLETE PIPE FROM PUMP TO POWER UNIT
(valid for: CAMBIOCORSA | 4700 cc)
from £203.58
from £203.58
# 004
MPN: 260536
OIL TANK KIT
(valid for: CAMBIOCORSA | 4700 cc)
from £426.65
from £426.65
# 005
MPN: 260537
COMPLETE PIPE FROM POWER UNIT TO OIL TANK
(valid for: CAMBIOCORSA | 4700 cc)
from £411.76
from £411.76
# 006
MPN: 179143
ACCUMULATOR ASSEMBLY
(valid for: CAMBIOCORSA | 4700 cc)
from £357.03
from £357.03
# 007
MPN: 179211
ACCUMULATOR DUCT
(valid for: CAMBIOCORSA | 4700 cc)
from £162.41
from £162.41
# 008
MPN: 184269
PIPE FROM ACCUMULATOR TO POWER UNIT
(valid for: CAMBIOCORSA | 4700 cc)
from £40.96
from £40.96
This part replaces part number 260533 - and 2 more. Click to view details
# 009
MPN: 260540
HYDRAULIC PUMP BRACKET KIT
(valid for: CAMBIOCORSA | 4700 cc)
from £458.47
from £458.47
# 010
MPN: 260539
TANK BRACKET KIT
(valid for: CAMBIOCORSA | 4700 cc)
from £315.74
from £315.74
# 011
MPN: 241565
AIR DELIVERY DUCT
(valid for: CAMBIOCORSA | 4700 cc)
from £94.83
from £94.83
# 012
MPN: 16297024
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £0.54
from £0.54
# 013
MPN: 12643724
WASHER [D 6,15-18X 1,5]
(valid for: CAMBIOCORSA | 4700 cc)
from £0.53
from £0.53
# 014
MPN: 13276911
SCREW
(valid for: CAMBIOCORSA | 4700 cc)
from £0.47
from £0.47
# 015
MPN: 14498824
WASHER [D.6.4-16.3X1]
(valid for: CAMBIOCORSA | 4700 cc)
from £0.54
from £0.54
# 016
MPN: 15896211
NUT
(valid for: CAMBIOCORSA | 4700 cc)
Supersession
Supersession
# 017
MPN: 281980
WASHER
(valid for: CAMBIOCORSA | 4700 cc)
from £8.16
from £8.16
This part replaces part number 10280050
