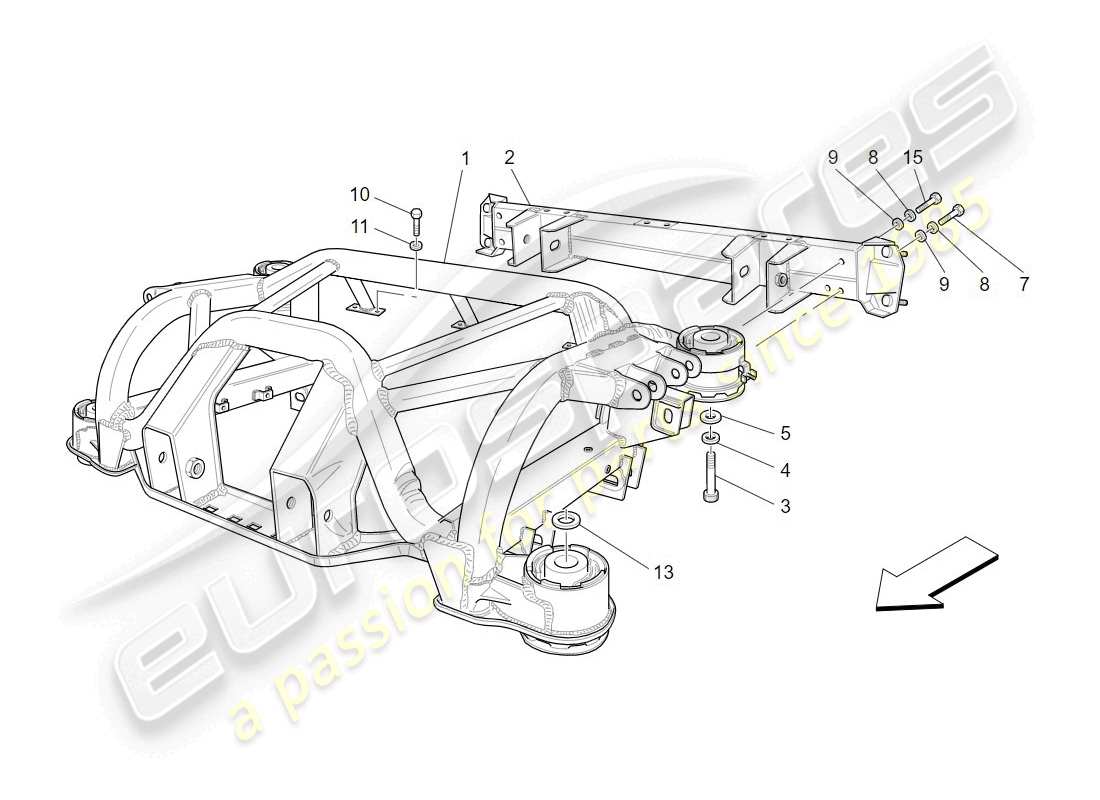

Maserati GranTurismo (2009) REAR CHASSIS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980145392
REAR SUSPENSION FRAME ASSEMBLY
Valid from assembly: 34868. (valid for: AUTOMATIC)
from £2,400.76
from £2,400.76
# 002
MPN: 239078
REAR CROSS MEMBER
Valid from assembly: 0 - 87853. (valid for: AUTOMATIC | 4200 cc)
from £411.48
from £411.48
# 002
MPN: 247035
REAR CROSS MEMBER
(valid for: AUTOMATIC | 4700 cc)
from £266.84
from £266.84
# 003
MPN: 67997900
SCREW
(valid for: AUTOMATIC)
from £7.66
from £7.66
# 004
MPN: 12646934
WASHER [D. 12.2 -28X 3]
Valid from assembly: 39478. (valid for: AUTOMATIC)
from £1.38
from £1.38
# 005
MPN: 244175
WASHER
Valid from assembly: 34868. (valid for: AUTOMATIC)
from £4.53
from £4.53
This part replaces part number 103236
# 007
MPN: 11343821
SCREW #M 10X50#
(valid for: AUTOMATIC)
from £0.61
from £0.61
# 008
MPN: 14496624
WASHER
(valid for: AUTOMATIC)
from £0.52
from £0.52
# 009
MPN: 11190577
WASHER
(valid for: AUTOMATIC)
from £0.52
from £0.52
# 010
MPN: 11343821
SCREW
(valid for: AUTOMATIC)
from £0.61
from £0.61
# 011
MPN: 12641024
WASHER
(valid for: AUTOMATIC)
from £1.40
from £1.40
# 013
MPN: 243594
SPACER
Valid from assembly: 0 - 47828. (valid for: AUTOMATIC)
from £6.05
from £6.05
# 013
MPN: 249517
SPACER
Valid from assembly: 47829. (valid for: AUTOMATIC)
from £2.30
from £2.30
# 015
MPN: 15971321
SCREW #M 10X75#
(valid for: AUTOMATIC)
from £7.66
from £7.66
