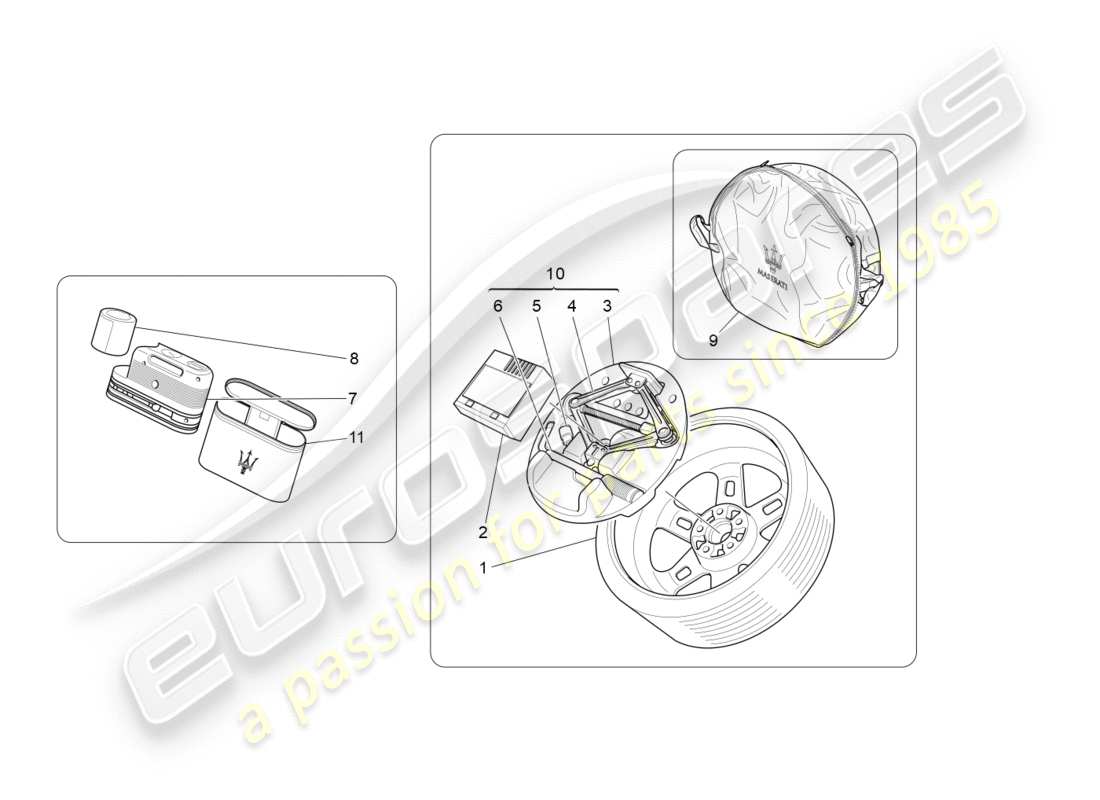

Maserati GranTurismo (2009) STANDARD PROVIDED Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 192481
              SPARE WHEEL ASSEMBLY
              (valid for: AUTOMATIC | 4200 cc)
              from £951.52
              from £951.52
              # 001
              MPN: 235834
              SPARE WHEEL ASSEMBLY
              (valid for: 4700 cc)
              from £982.93
              from £982.93
              # 002
              MPN: 184315
              PORTABLE AIR COMPRESSOR SET
              Valid from assembly: 0 - 67134. (valid for: AUTOMATIC | 4200 cc)
              from £192.30
              from £192.30
              # 002
              MPN: 237737
              PORTABLE AIR COMPRESSOR SET
              (valid for: 4700 cc)
              from £203.79
              from £203.79
              # 003
              MPN: 190678
              POLYURETHANE TO HOLD TOOLS #VALID FOR JACK COD.389800107#
              (valid for: AUTOMATIC | 4200 cc)
              from £37.39
              from £37.39
              # 003
              MPN: 239929
              POLYURETHANE TO HOLD TOOLS #VALID FOR JACK COD.389800107#
              (valid for: 4700 cc)
              from £41.13
              from £41.13
              # 003
              MPN: 265543
              POLYURETHANE TO HOLD TOOLS #VALID FOR JACK COD.265136#
              (valid for: 4700 cc)
              from £45.82
              from £45.82
              # 003
              MPN: 265552
              POLYURETHANE TO HOLD TOOLS #VALID FOR JACK COD.265136#
              (valid for: AUTOMATIC | 4200 cc)
              from £39.23
              from £39.23
              # 004
              MPN: 265136
              JACK
              from £104.87
              from £104.87
              # 004
              MPN: 389800107
              JACK #OLD SOLUTION#
              from £104.87
              from £104.87
              # 005
              MPN: 389800336
              SOCKET WRENCH
              from £13.78
              from £13.78
              # 006
              MPN: 389800102
              WHEEL STUD WRENCH
              from £25.84
              from £25.84
              # 007
              MPN: 670032461
              COMPRESSOR TIRE INFLATION
              Valid from assembly: 0 - 72525.
              Supersession
              Supersession
              # 007
              MPN: 673007343
              COMPRESSOR TIRE INFLATION #SEALANT 500#
              from £69.84
              from £69.84
              # 008
              MPN: 673007053
              SEALANT 500 #(I TR PL UK)#
              from £69.49
              from £69.49
              # 008
              MPN: 673007054
              SEALANT 500 #(MT IRL CY GR)#
              from £64.27
              from £64.27
              # 008
              MPN: 673007055
              SEALANT 500 #(BE NL DE AT LU FR CH LI)#
              from £69.49
              from £69.49
              # 008
              MPN: 673007056
              SEALANT 500 #(LT IS EST LV NOR)#
              from £67.55
              from £67.55
              # 008
              MPN: 673007057
              SEALANT 500 #(HR SK SI HU)#
              from £62.16
              from £62.16
              # 008
              MPN: 673007058
              SEALANT 500 #(DK FI SE CZ)#
              from £67.55
              from £67.55
              # 008
              MPN: 673007059
              SEALANT 500 #(BG RO ES PT)#
              from £69.49
              from £69.49
              # 008
              MPN: 673007060
              SEALANT 500 #(ROW)#
              from £69.49
              from £69.49
              # 009
              MPN: 229168
              SPARE WHEEL BAG
              from £262.02
              from £262.02
              # 010
              MPN: 265541
              CPL. CONTAINER #18 WHEEL RIM#
              (valid for: 4700 cc)
              from £268.01
              from £268.01
              # 010
              MPN: 265550
              CPL. CONTAINER #WHEEL RIM 17#
              (valid for: AUTOMATIC | 4200 cc)
              from £240.26
              from £240.26
              # 011
              MPN: 673009141
              500 COMPRESSOR BAG
              from £13.53
              from £13.53
