Valid from assembly: 0 - 91906.
maserati granturismo (2009) standard provided parts diagram

07.30.4 - standard provided

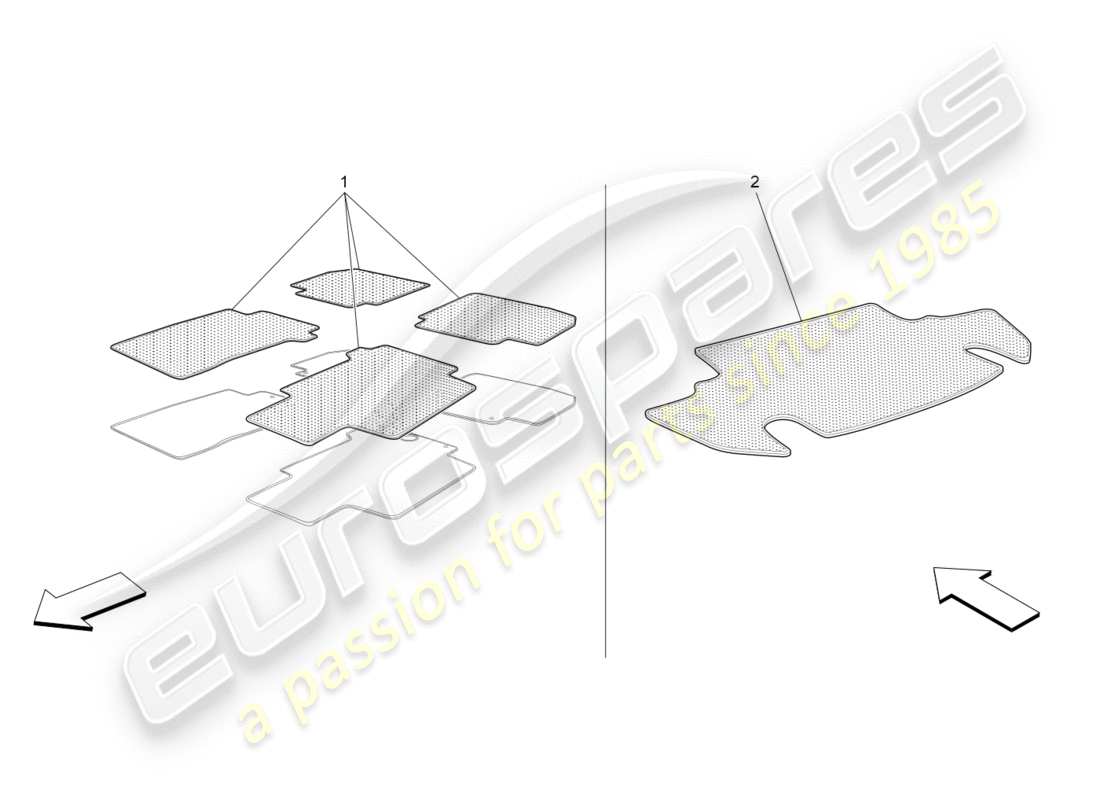

Maserati GranTurismo (2009) STANDARD PROVIDED Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 940000069
    GT LHD RUBBER MAT KIT
    Valid from assembly: 48474. (valid for: CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
    from £137.14
    from £137.14
    # 001
    MPN: 940000070
    GT RHD RUBBER MAT KIT
    (valid for: AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
    from £137.14
    from £137.14
    This part replaces part number 920002134
    # 002
    MPN: 940000050
    GT LUGGAGE COMPARTMENT RUBBER MAT
    from £73.86
    from £73.86
