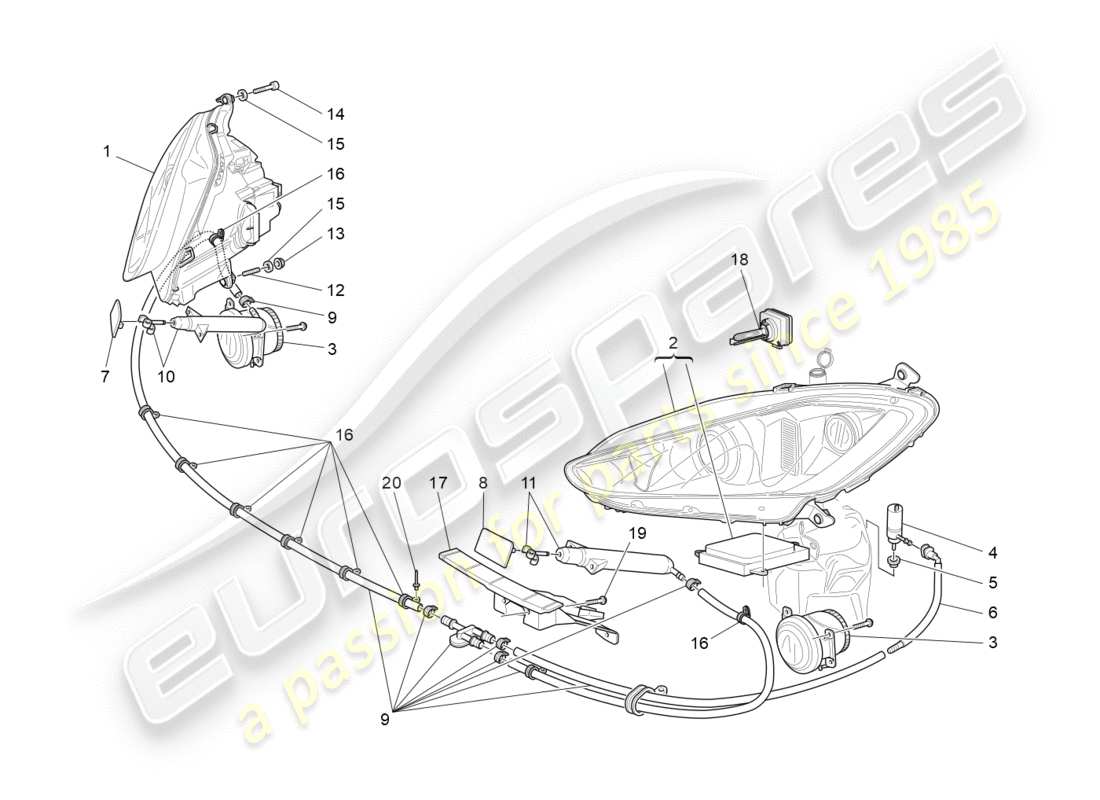

08.30.1 - headlight clusters
Maserati GranTurismo (2009) HEADLIGHT CLUSTERS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 240680
RH HEADLIGHT #BLACK FRAME#
Valid from assembly: 0 - 65974. (valid for: 4700 cc | AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
Supersession
Supersession
# 001
MPN: 240680
RH HEADLIGHT #BLACK FRAME#
Valid from assembly: 0 - 65974. Suitable for cars with: DARK FINISHING FOR LED HEADLAMPS. (valid for: 4700 cc | AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
Supersession
Supersession
# 001
MPN: 286373
RH HEADLIGHT #HEADLIGHTS - STEEL LOOK (WHITE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: CHINA,EUROPE,MIDDLE-EAST,TAIWAN)
from £1,425.98
from £1,425.98
# 001
MPN: 286375
RH HEADLIGHT #HEADLIGHTS - STEEL LOOK (WHITE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,425.98
from £1,425.98
# 001
MPN: 286379
RH HEADLIGHT #TITAN FRAME - ORANGE SIDE MARKER#
Valid from assembly: 0 - 66947. (valid for: CANADA,USA)
from £1,425.98
from £1,425.98
This part replaces part number 215799
# 001
MPN: 286381
RH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: CHINA,EUROPE,MIDDLE-EAST,TAIWAN)
from £1,425.98
from £1,425.98
This part replaces part number 240676
# 001
MPN: 286383
RH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: 4700 cc | AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,425.98
from £1,425.98
This part replaces part number 240680
# 001
MPN: 286385
RH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: 4700 cc | CANADA,USA)
from £1,425.98
from £1,425.98
This part replaces part number 241468
# 001
MPN: 286388
RH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (WHITE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: CHINA,EUROPE,MIDDLE-EAST,TAIWAN)
from £1,425.98
from £1,425.98
This part replaces part number 273995
# 001
MPN: 286390
RH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (WHITE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,425.98
from £1,425.98
This part replaces part number 273997
# 001
MPN: 980145438
RH HEADLIGHT #HEADLIGHTS - STEEL LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: AUTOMATIC | CHINA,EUROPE,MIDDLE-EAST,TAIWAN)
from £1,425.98
from £1,425.98
This part replaces part number 210731
# 001
MPN: 980145440
RH HEADLIGHT #HEADLIGHTS - STEEL LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: AUTOMATIC | AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,425.98
from £1,425.98
This part replaces part number 234305
# 002
MPN: 240681
LH HEADLIGHT #BLACK FRAME#
Valid from assembly: 0 - 65974. (valid for: 4700 cc | AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
Supersession
Supersession
# 002
MPN: 240681
LH HEADLIGHT #BLACK FRAME#
Valid from assembly: 0 - 65974. Suitable for cars with: DARK FINISHING FOR LED HEADLAMPS. (valid for: 4700 cc | AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
Supersession
Supersession
# 002
MPN: 286374
LH HEADLIGHT #HEADLIGHTS - STEEL LOOK (WHITE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: CHINA,EUROPE,MIDDLE-EAST,TAIWAN)
from £1,425.98
from £1,425.98
# 002
MPN: 286376
LH HEADLIGHT #HEADLIGHTS - STEEL LOOK (WHITE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,417.50
from £1,417.50
# 002
MPN: 286380
LH HEADLIGHT #TITAN FRAME - ORANGE SIDE MARKER#
Valid from assembly: 0 - 66947. (valid for: CANADA,USA)
from £1,425.98
from £1,425.98
This part replaces part number 215798
# 002
MPN: 286382
LH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: CHINA,EUROPE,MIDDLE-EAST,TAIWAN)
from £1,425.98
from £1,425.98
This part replaces part number 240677
# 002
MPN: 286384
LH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: 4700 cc | AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,425.98
from £1,425.98
This part replaces part number 240681
# 002
MPN: 286387
LH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: 4700 cc | CANADA,USA)
from £1,425.98
from £1,425.98
This part replaces part number 241467
# 002
MPN: 286389
LH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (WHITE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: CHINA,EUROPE,MIDDLE-EAST,TAIWAN)
from £1,425.98
from £1,425.98
This part replaces part number 273996
# 002
MPN: 286391
LH HEADLIGHT #HEADLIGHTS - MATT BLACK LOOK (WHITE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,425.98
from £1,425.98
This part replaces part number 273998
# 002
MPN: 980145439
LH HEADLIGHT #HEADLIGHTS - STEEL LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: AUTOMATIC | CHINA,EUROPE,MIDDLE-EAST,TAIWAN)
from £1,425.98
from £1,425.98
This part replaces part number 210732
# 002
MPN: 980145441
LH HEADLIGHT #HEADLIGHTS - STEEL LOOK (ORANGE SIDE MARK)#
Valid from assembly: 0 - 66947. (valid for: AUTOMATIC | AUSTRALIA,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,425.98
from £1,425.98
This part replaces part number 234307
# 003
MPN: 272726
FRONT FOG LAMP
from £57.73
from £57.73
This part replaces part number 231337
# 004
MPN: 65164700
HEADLIGHTS WASHER PUMP
from £41.17
from £41.17
# 005
MPN: 65511700
GASKET
from £3.21
from £3.21
# 006
MPN: 80554300
HEADLIGHTS WASHER UNION
from £31.50
from £31.50
# 007
MPN: 80056810
RH HEADLIGHT WASHER LID
from £39.49
from £39.49
# 008
MPN: 80056710
LH HEADLIGHT WASHER LID
from £39.49
from £39.49
# 009
MPN: 980145141
PIPES FOR HEADLIGHT WASHER SYSTEM
from £49.00
from £49.00
# 010
MPN: 980145142
RH HEADLIGHTS WASHER TELESCOPIC
from £118.67
from £118.67
# 011
MPN: 980145143
LH HEADLIGHTS WASHER TELESCOPIC
from £122.94
from £122.94
# 012
MPN: 13541724
STUD
from £1.54
from £1.54
# 013
MPN: 13046114
NUT
from £0.53
from £0.53
# 014
MPN: 16286524
SCREW
from £0.53
from £0.53
# 015
MPN: 12647124
WASHER
from £1.38
from £1.38
# 016
MPN: 10441590
BRACKET WITH SHEATH
from £0.48
from £0.48
# 017
MPN: 80056300
LH BRACKET
from £17.54
from £17.54
# 017
MPN: 80056400
RH BRACKET
from £9.65
from £9.65
# 018
MPN: 900028015
XENON BULB
from £119.36
from £119.36
# 019
MPN: 16084401
SCREW
from £1.30
from £1.30
# 020
MPN: 14642791
RIVET
from £3.14
from £3.14
-part-diagram-08.31.1.webp "MASERATI GRANTURISMO (2009) TAILLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.32.1.webp "MASERATI GRANTURISMO (2009) SIDE LIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.39.1.webp "MASERATI GRANTURISMO (2009) LIGHTING SYSTEM CONTROL PARTS DIAGRAM")
-part-diagram-08.40.1.webp "MASERATI GRANTURISMO (2009) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.2.webp "MASERATI GRANTURISMO (2009) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.3.webp "MASERATI GRANTURISMO (2009) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.41.1.webp "MASERATI GRANTURISMO (2009) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.42.1.webp "MASERATI GRANTURISMO (2009) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.49.1.webp "MASERATI GRANTURISMO (2009) A/C UNIT: ELECTRONIC CONTROL PARTS DIAGRAM")
-part-diagram-08.50.1.webp "MASERATI GRANTURISMO (2009) DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.51.1.webp "MASERATI GRANTURISMO (2009) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.51.2.webp "MASERATI GRANTURISMO (2009) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.52.1.webp "MASERATI GRANTURISMO (2009) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.53.1.webp "MASERATI GRANTURISMO (2009) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.2.webp "MASERATI GRANTURISMO (2009) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.60.1.webp "MASERATI GRANTURISMO (2009) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.3.webp "MASERATI GRANTURISMO (2009) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.5.webp "MASERATI GRANTURISMO (2009) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.6.webp "MASERATI GRANTURISMO (2009) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.61.1.webp "MASERATI GRANTURISMO (2009) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.70.1.webp "MASERATI GRANTURISMO (2009) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.1.webp "MASERATI GRANTURISMO (2009) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.2.webp "MASERATI GRANTURISMO (2009) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.3.webp "MASERATI GRANTURISMO (2009) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.72.1.webp "MASERATI GRANTURISMO (2009) RECEPTION AND CONNECTION SYSTEM PARTS DIAGRAM")
-part-diagram-09.00.1.webp "MASERATI GRANTURISMO (2009) BODYWORK AND FRONT OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.2.webp "MASERATI GRANTURISMO (2009) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.3.webp "MASERATI GRANTURISMO (2009) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.4.webp "MASERATI GRANTURISMO (2009) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.02.1.webp "MASERATI GRANTURISMO (2009) BODYWORK AND REAR OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.03.1.webp "MASERATI GRANTURISMO (2009) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.1.webp "MASERATI GRANTURISMO (2009) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.1.webp "MASERATI GRANTURISMO (2009) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.10.1.webp "MASERATI GRANTURISMO (2009) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-09.11.1.webp "MASERATI GRANTURISMO (2009) REAR BUMPER PARTS DIAGRAM")
-part-diagram-09.12.1.webp "MASERATI GRANTURISMO (2009) PARKING SENSORS PARTS DIAGRAM")
-part-diagram-09.13.1.webp "MASERATI GRANTURISMO (2009) WHEELHOUSE AND LIDS PARTS DIAGRAM")
-part-diagram-09.14.1.webp "MASERATI GRANTURISMO (2009) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.15.1.webp "MASERATI GRANTURISMO (2009) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.15.3.webp "MASERATI GRANTURISMO (2009) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.16.1.webp "MASERATI GRANTURISMO (2009) TRIMS, BRANDS AND SYMBOLS PARTS DIAGRAM")
-part-diagram-09.17.1.webp "MASERATI GRANTURISMO (2009) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.20.1.webp "MASERATI GRANTURISMO (2009) FRONT LID PARTS DIAGRAM")
-part-diagram-09.21.1.webp "MASERATI GRANTURISMO (2009) REAR LID PARTS DIAGRAM")
-part-diagram-09.22.1.webp "MASERATI GRANTURISMO (2009) FUEL TANK DOOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-09.23.1.webp "MASERATI GRANTURISMO (2009) FRONT LID OPENING BUTTON PARTS DIAGRAM")
-part-diagram-09.24.1.webp "MASERATI GRANTURISMO (2009) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.30.1.webp "MASERATI GRANTURISMO (2009) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.31.1.webp "MASERATI GRANTURISMO (2009) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.34.1.webp "MASERATI GRANTURISMO (2009) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.35.1.webp "MASERATI GRANTURISMO (2009) INTERNAL AND EXTERNAL REAR-VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-09.40.1.webp "MASERATI GRANTURISMO (2009) FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.41.1.webp "MASERATI GRANTURISMO (2009) FRONT SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.42.1.webp "MASERATI GRANTURISMO (2009) REAR SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.44.1.webp "MASERATI GRANTURISMO (2009) PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS PARTS DIAGRAM")
-part-diagram-09.45.1.webp "MASERATI GRANTURISMO (2009) ROOF AND SUN VISORS PARTS DIAGRAM")
-part-diagram-09.46.1.webp "MASERATI GRANTURISMO (2009) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.50.1.webp "MASERATI GRANTURISMO (2009) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.2.webp "MASERATI GRANTURISMO (2009) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.51.1.webp "MASERATI GRANTURISMO (2009) ACCESSORY CONSOLE AND CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-09.52.1.webp "MASERATI GRANTURISMO (2009) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.60.1.webp "MASERATI GRANTURISMO (2009) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.1.webp "MASERATI GRANTURISMO (2009) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.2.webp "MASERATI GRANTURISMO (2009) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.3.webp "MASERATI GRANTURISMO (2009) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.62.1.webp "MASERATI GRANTURISMO (2009) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.63.1.webp "MASERATI GRANTURISMO (2009) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-09.63.2.webp "MASERATI GRANTURISMO (2009) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-01.00.1.webp "MASERATI GRANTURISMO (2009) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.10.1.webp "MASERATI GRANTURISMO (2009) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.10.2.webp "MASERATI GRANTURISMO (2009) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.11.1.webp "MASERATI GRANTURISMO (2009) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.20.1.webp "MASERATI GRANTURISMO (2009) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.1.webp "MASERATI GRANTURISMO (2009) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.22.1.webp "MASERATI GRANTURISMO (2009) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.1.webp "MASERATI GRANTURISMO (2009) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.24.1.webp "MASERATI GRANTURISMO (2009) TIMING PARTS DIAGRAM")
-part-diagram-01.25.1.webp "MASERATI GRANTURISMO (2009) VALVES PARTS DIAGRAM")
-part-diagram-01.40.1.webp "MASERATI GRANTURISMO (2009) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.41.1.webp "MASERATI GRANTURISMO (2009) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.42.1.webp "MASERATI GRANTURISMO (2009) FUEL TANK PARTS DIAGRAM")
-part-diagram-01.43.1.webp "MASERATI GRANTURISMO (2009) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.44.1.webp "MASERATI GRANTURISMO (2009) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.1.webp "MASERATI GRANTURISMO (2009) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.2.webp "MASERATI GRANTURISMO (2009) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.3.webp "MASERATI GRANTURISMO (2009) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.4.webp "MASERATI GRANTURISMO (2009) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.60.1.webp "MASERATI GRANTURISMO (2009) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.61.1.webp "MASERATI GRANTURISMO (2009) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.62.1.webp "MASERATI GRANTURISMO (2009) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.62.2.webp "MASERATI GRANTURISMO (2009) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.63.1.webp "MASERATI GRANTURISMO (2009) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.70.1.webp "MASERATI GRANTURISMO (2009) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.70.2.webp "MASERATI GRANTURISMO (2009) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.71.1.webp "MASERATI GRANTURISMO (2009) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.2.webp "MASERATI GRANTURISMO (2009) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.72.1.webp "MASERATI GRANTURISMO (2009) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.80.1.webp "MASERATI GRANTURISMO (2009) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.80.2.webp "MASERATI GRANTURISMO (2009) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.81.1.webp "MASERATI GRANTURISMO (2009) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.2.webp "MASERATI GRANTURISMO (2009) SILENCERS PARTS DIAGRAM")
-part-diagram-01.90.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.3.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.5.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.91.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-02.01.1.webp "MASERATI GRANTURISMO (2009) ACTUATION HYDRAULIC PARTS FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-02.11.1.webp "MASERATI GRANTURISMO (2009) FRICTION DISCS AND HOUSING FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-02.90.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CLUTCH CONTROL FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-03.01.1.webp "MASERATI GRANTURISMO (2009) DRIVER CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-03.02.1.webp "MASERATI GRANTURISMO (2009) DRIVER CONTROLS FOR AUTOMATIC GEARBOX PARTS DIAGRAM")
-part-diagram-03.10.1.webp "MASERATI GRANTURISMO (2009) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.2.webp "MASERATI GRANTURISMO (2009) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.3.webp "MASERATI GRANTURISMO (2009) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.11.1.webp "MASERATI GRANTURISMO (2009) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-03.12.1.webp "MASERATI GRANTURISMO (2009) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-03.13.1.webp "MASERATI GRANTURISMO (2009) INNER CONTROLS PARTS DIAGRAM")
-part-diagram-03.21.1.webp "MASERATI GRANTURISMO (2009) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.21.2.webp "MASERATI GRANTURISMO (2009) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.30.1.webp "MASERATI GRANTURISMO (2009) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.2.webp "MASERATI GRANTURISMO (2009) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.40.1.webp "MASERATI GRANTURISMO (2009) GEARBOX ACTIVATION HYDRAULICS: POWER UNIT PARTS DIAGRAM")
-part-diagram-03.41.1.webp "MASERATI GRANTURISMO (2009) GEARBOX ACTIVATION HYDRAULICS: TANK AND PUMP PARTS DIAGRAM")
-part-diagram-03.50.1.webp "MASERATI GRANTURISMO (2009) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.50.2.webp "MASERATI GRANTURISMO (2009) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.90.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL (GEARBOX) PARTS DIAGRAM")
-part-diagram-04.00.1.webp "MASERATI GRANTURISMO (2009) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.10.1.webp "MASERATI GRANTURISMO (2009) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.11.1.webp "MASERATI GRANTURISMO (2009) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.20.1.webp "MASERATI GRANTURISMO (2009) LINES PARTS DIAGRAM")
-part-diagram-04.20.2.webp "MASERATI GRANTURISMO (2009) LINES PARTS DIAGRAM")
-part-diagram-04.30.1.webp "MASERATI GRANTURISMO (2009) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.90.1.webp "MASERATI GRANTURISMO (2009) BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-part-diagram-05.00.1.webp "MASERATI GRANTURISMO (2009) STEERING COLUMN AND STEERING WHEEL UNIT PARTS DIAGRAM")
-part-diagram-05.10.1.webp "MASERATI GRANTURISMO (2009) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.20.1.webp "MASERATI GRANTURISMO (2009) COMPLETE PEDAL BOARD UNIT PARTS DIAGRAM")
-part-diagram-06.00.1.webp "MASERATI GRANTURISMO (2009) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.10.1.webp "MASERATI GRANTURISMO (2009) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-06.11.1.webp "MASERATI GRANTURISMO (2009) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.11.2.webp "MASERATI GRANTURISMO (2009) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.12.1.webp "MASERATI GRANTURISMO (2009) FRONT UNDERCHASSIS PARTS DIAGRAM")
-part-diagram-06.20.1.webp "MASERATI GRANTURISMO (2009) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.21.1.webp "MASERATI GRANTURISMO (2009) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.21.2.webp "MASERATI GRANTURISMO (2009) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.22.1.webp "MASERATI GRANTURISMO (2009) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.22.2.webp "MASERATI GRANTURISMO (2009) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.90.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL (SUSPENSION) PARTS DIAGRAM")
-part-diagram-06.95.0.webp "MASERATI GRANTURISMO (2009) CPL. WHEELS PARTS DIAGRAM")
-part-diagram-07.00.1.webp "MASERATI GRANTURISMO (2009) FRONT AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.00.2.webp "MASERATI GRANTURISMO (2009) FRONT AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.01.1.webp "MASERATI GRANTURISMO (2009) PASSENGER'S AIRBAG-DEACTIVATION PARTS DIAGRAM")
-part-diagram-07.01.3.webp "MASERATI GRANTURISMO (2009) PASSENGER'S AIRBAG-DEACTIVATION PARTS DIAGRAM")
-part-diagram-07.02.1.webp "MASERATI GRANTURISMO (2009) FRONT SIDE BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.05.1.webp "MASERATI GRANTURISMO (2009) CRASH SENSORS PARTS DIAGRAM")
-part-diagram-07.10.1.webp "MASERATI GRANTURISMO (2009) FRONT SEATBELTS PARTS DIAGRAM")
-part-diagram-07.11.1.webp "MASERATI GRANTURISMO (2009) REAR SEAT BELTS PARTS DIAGRAM")
-part-diagram-07.20.1.webp "MASERATI GRANTURISMO (2009) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-07.30.1.webp "MASERATI GRANTURISMO (2009) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.2.webp "MASERATI GRANTURISMO (2009) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.4.webp "MASERATI GRANTURISMO (2009) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.31.1.webp "MASERATI GRANTURISMO (2009) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-07.31.2.webp "MASERATI GRANTURISMO (2009) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-07.31.3.webp "MASERATI GRANTURISMO (2009) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-08.00.1.webp "MASERATI GRANTURISMO (2009) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.10.1.webp "MASERATI GRANTURISMO (2009) INTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.20.1.webp "MASERATI GRANTURISMO (2009) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
