08.60.1 - main wiring

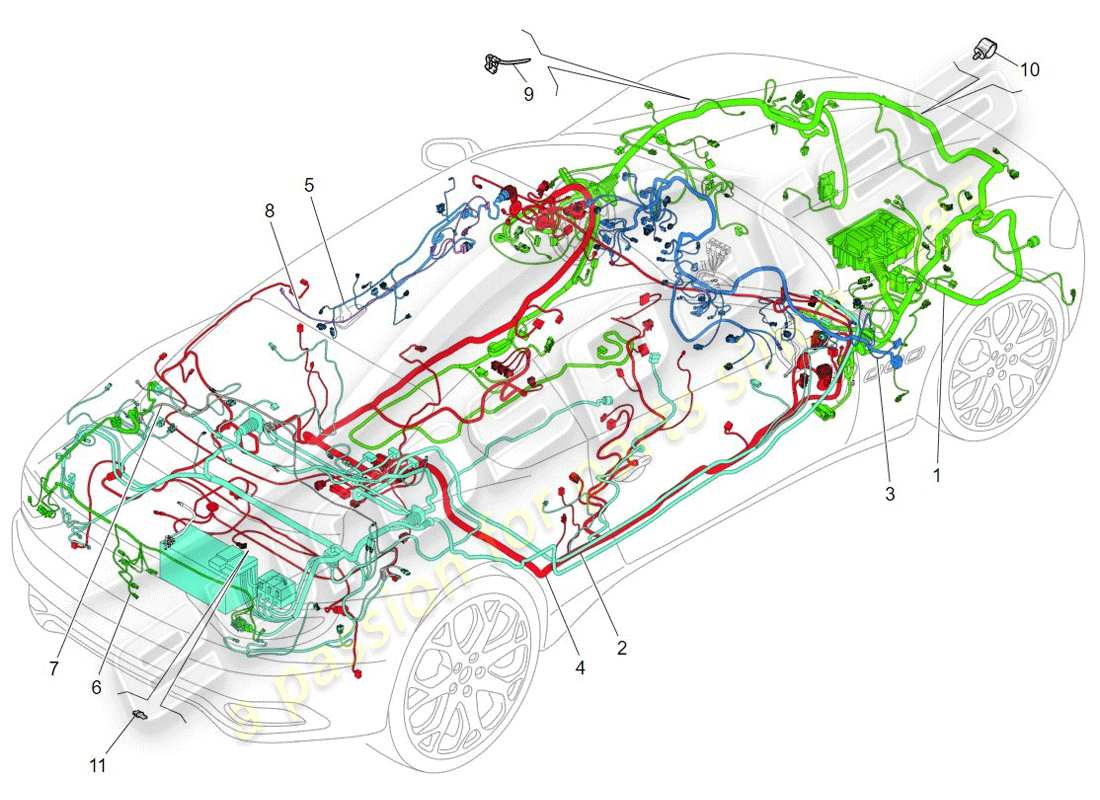

Maserati GranTurismo (2009) MAIN WIRING Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 240392
ENGINE COMPARTMENT WIRING HARNESS
Valid from assembly: 42931 - 49657. (valid for: AUTOMATIC | 4200 cc | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £1,425.09
from £1,425.09
# 001
MPN: 240393
ENGINE COMPARTMENT WIRING HARNESS
Valid from assembly: 42931 - 49657. Suitable for cars with: Cables for Full optional version. (valid for: AUTOMATIC | 4200 cc | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £1,373.69
from £1,373.69
# 001
MPN: 240394
ENGINE COMPARTMENT WIRING HARNESS
Valid from assembly: 42931 - 49657. (valid for: AUTOMATIC | 4200 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,645.50
from £1,645.50
# 001
MPN: 240395
ENGINE COMPARTMENT WIRING HARNESS
Valid from assembly: 42931 - 49657. Suitable for cars with: Cables for Full optional version. (valid for: AUTOMATIC | 4200 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,425.09
from £1,425.09
# 002
MPN: 228534
BOOT COMPARTMENT WIRING HARNESS
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £1,447.17
from £1,447.17
This part replaces part number 195337
# 002
MPN: 228536
BOOT COMPARTMENT WIRING HARNESS
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,748.32
from £1,748.32
# 002
MPN: 228537
BOOT COMPARTMENT WIRING HARNESS
Valid from assembly: 0 - 49657. Suitable for cars with: Cables for Full optional version. (valid for: AUTOMATIC | 4200 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £2,020.11
from £2,020.11
# 002
MPN: 233926
BOOT COMPARTMENT WIRING HARNESS
Valid from assembly: 0 - 49657. Suitable for cars with: Cables for Full optional version. (valid for: AUTOMATIC | 4200 cc | CANADA,CHINA,EUROPE,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £1,689.57
from £1,689.57
# 003
MPN: 242185
DASHBOARD CABLE
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc | CANADA,CHINA,EUROPE,MIDDLE-EAST,TAIWAN,USA)
from £481.94
from £481.94
This part replaces part number 238427
# 003
MPN: 242189
DASHBOARD CABLE
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £523.77
from £523.77
# 003
MPN: 244735
DASHBOARD CABLE
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc | JAPAN)
from £698.60
from £698.60
This part replaces part number 238436
# 003
MPN: 244736
DASHBOARD CABLE
Valid from assembly: 0 - 49657. Suitable for cars with: (RH Guide) Japan Market. (valid for: AUTOMATIC | 4200 cc | JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £783.90
from £783.90
This part replaces part number 242190
# 004
MPN: 237503
PASSENGER COMPARTMENT WIRING HARNESS
Valid from assembly: 42931 - 49657. (valid for: AUTOMATIC | 4200 cc | CANADA,CHINA,EUROPE,MIDDLE-EAST,TAIWAN,USA)
from £1,300.26
from £1,300.26
# 004
MPN: 237506
PASSENGER COMPARTMENT WIRING HARNESS
Valid from assembly: 42931 - 49657. (valid for: AUTOMATIC | 4200 cc | AUSTRALIA,JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,483.85
from £1,483.85
# 004
MPN: 244188
PASSENGER COMPARTMENT WIRING HARNESS
Valid from assembly: 42931 - 49657. (valid for: AUTOMATIC | 4200 cc | JAPAN)
from £1,256.19
from £1,256.19
# 004
MPN: 244190
PASSENGER COMPARTMENT WIRING HARNESS
Valid from assembly: 42931 - 49657. Suitable for cars with: (RH Guide) Japan Market. (valid for: AUTOMATIC | 4200 cc | JAPAN (RH DRIVE),SOUTH AFRICA,UK)
from £1,454.50
from £1,454.50
# 005
MPN: 272861
DRIVER DOOR WIRING HARNESS
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £171.97
from £171.97
This part replaces part number 231434 which we have in stock
# 005
MPN: 272862
PASSENGER DOOR WIRING HARNESS
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £77.62
from £77.62
This part replaces part number 231435 - and 1 more. Click to view details
# 006
MPN: 233927
BOOT WIRING HARNESS
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £91.28
from £91.28
# 007
MPN: 212487
FUEL PUMP CABLE
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £216.99
from £216.99
# 008
MPN: 231437
DRIVER DOOR WIRING HARNESS
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £89.39
from £89.39
# 008
MPN: 231438
PASSENGER DOOR PANEL WIRING HARNESS
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £29.73
from £29.73
# 009
MPN: 177553
CLAMP
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £0.54
from £0.54
# 010
MPN: 204775
CLIP
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £0.81
from £0.81
# 010
MPN: 230265
CLIP
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £5.52
from £5.52
# 011
MPN: 260722
PLUG
Valid from assembly: 0 - 49657. (valid for: AUTOMATIC | 4200 cc)
from £4.14
from £4.14
