Valid from assembly: 0 - 85807.
09.01.4 - BODYWORK AND CENTRAL OUTER TRIM PANELS

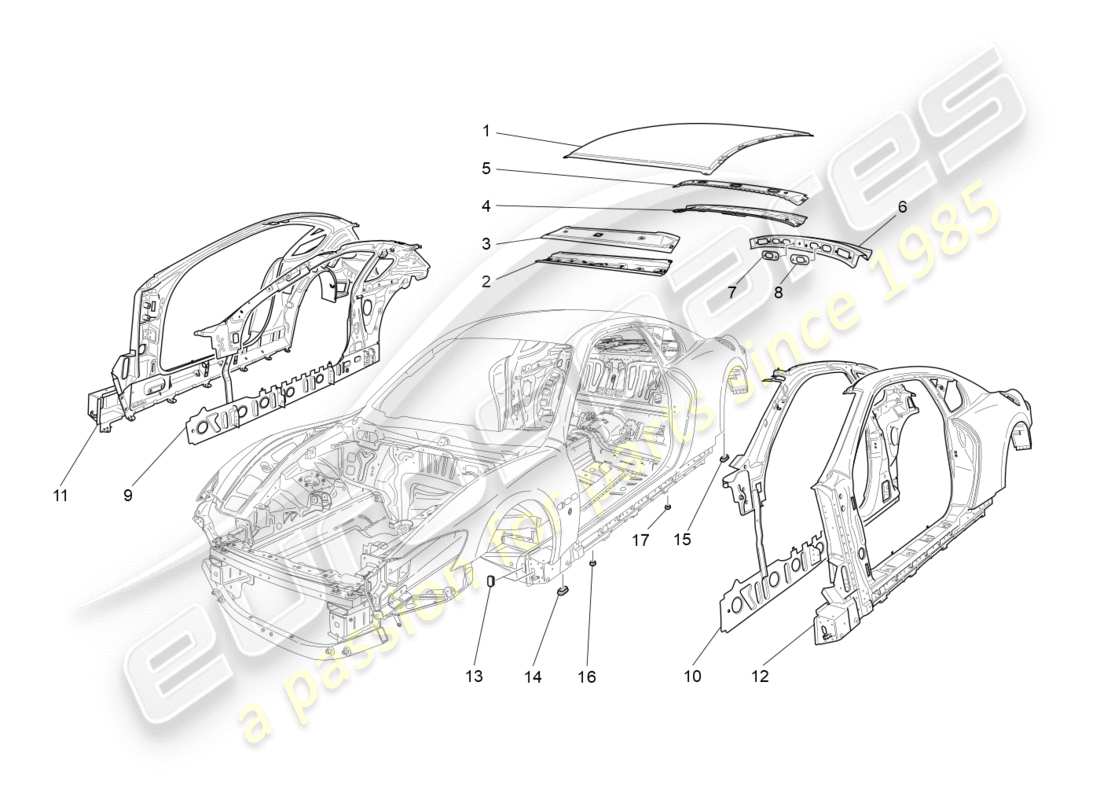

Maserati GranTurismo (2009) BODYWORK AND CENTRAL OUTER TRIM PANELS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980145039
COMPLETE ROOF #WITHOUT PREDISPOSITION FOR ANTENNA#
(valid for: CAMBIOCORSA | 4700 cc)
from £1,979.82
from £1,979.82
TETTO CPL. Genuine Maserati Part - New (other) In stock
Complete Roof With Inner Frame (Removed from New Bodyshell)
Complete Roof With Inner Frame (Removed from New Bodyshell)
# 001
MPN: 980145040
COMPLETE ROOF #WITH PREDISPOSITION FOR ANTENNA#
(valid for: CAMBIOCORSA | 4700 cc)
from £1,936.35
from £1,936.35
# 002
MPN: 68243100
WINDSCREEN UPPER CROSS MEMBER ASSEMBLY
(valid for: CAMBIOCORSA | 4700 cc)
from £171.57
from £171.57
# 003
MPN: 68244400
WINDSHIELD UPPER CROSS MEMBER COVER
(valid for: CAMBIOCORSA | 4700 cc)
from £270.37
from £270.37
# 004
MPN: 980145041
COMPLETE ROOF REAR CROSS MEMBER
(valid for: CAMBIOCORSA | 4700 cc)
from £282.69
from £282.69
# 005
MPN: 68244100
REAR CROSS MEMBER COVER
(valid for: CAMBIOCORSA | 4700 cc)
from £270.37
from £270.37
# 006
MPN: 69150000
REAR WINDOW CROSS MEMBER
(valid for: CAMBIOCORSA | 4700 cc)
from £171.57
from £171.57
# 007
MPN: 80004700
RH BRACKET
(valid for: CAMBIOCORSA | 4700 cc)
from £188.96
from £188.96
# 008
MPN: 80004800
LH BRACKET
(valid for: CAMBIOCORSA | 4700 cc)
from £188.96
from £188.96
# 009
MPN: 68286300
COMPLETE INTERNAL RH SIDE PANEL
(valid for: CAMBIOCORSA | 4700 cc)
from £1,434.11
from £1,434.11
This part replaces part number 980145821
# 010
MPN: 68286400
COMPLETE INTERNAL LH SIDE PANEL
(valid for: CAMBIOCORSA | 4700 cc)
from £1,511.31
from £1,511.31
# 011
MPN: 68285900
COMPLETE EXTERNAL RH SIDE PANEL
(valid for: CAMBIOCORSA | 4700 cc)
from £5,012.60
from £5,012.60
# 012
MPN: 68286000
COMPLETE EXTERNAL LH SIDE PANEL
(valid for: CAMBIOCORSA | 4700 cc)
from £5,012.60
from £5,012.60
# 013
MPN: 67725200
PLUG
(valid for: CAMBIOCORSA | 4700 cc)
from £1.93
from £1.93
# 014
MPN: 80036800
PLUG
(valid for: CAMBIOCORSA | 4700 cc)
from £1.08
from £1.08
# 015
MPN: 80378100
PLUG
(valid for: CAMBIOCORSA | 4700 cc)
from £3.24
from £3.24
# 016
MPN: 80036400
PLUG
(valid for: CAMBIOCORSA | 4700 cc)
from £2.32
from £2.32
# 017
MPN: 13141287
PLUG
(valid for: CAMBIOCORSA | 4700 cc)
from £1.08
from £1.08
