maserati granturismo (2009) rear bumper parts diagram

09.11.1 - REAR BUMPER

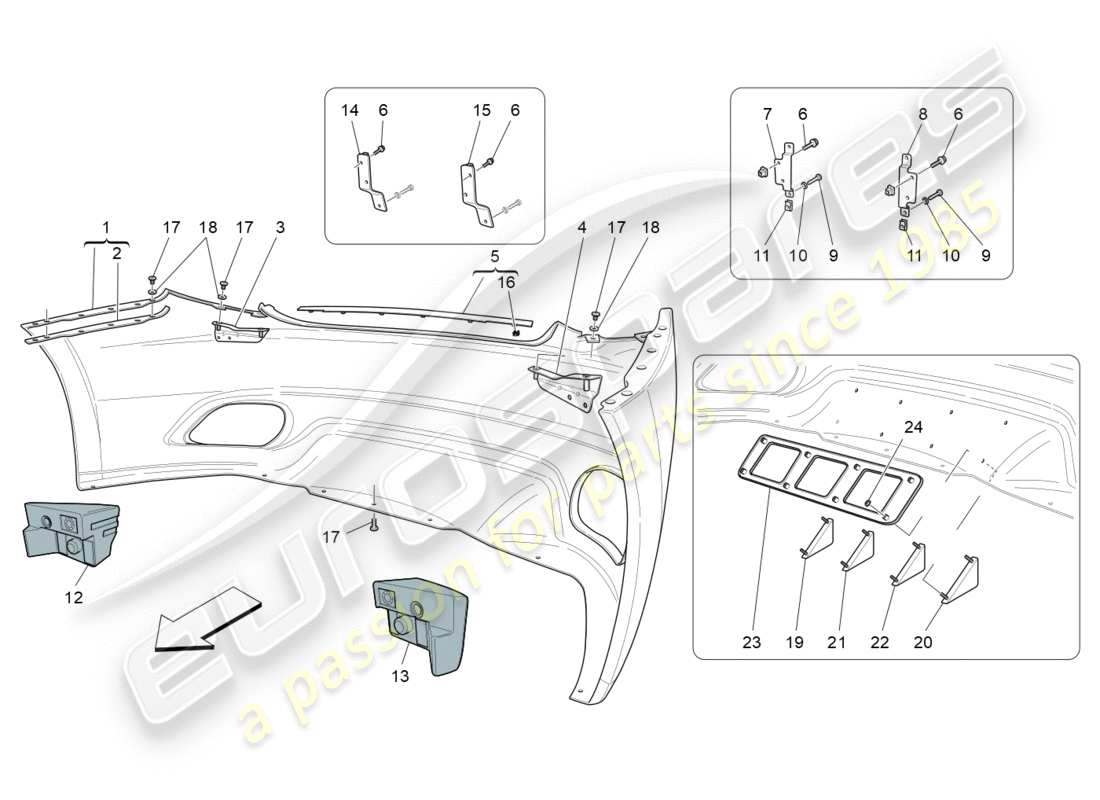

Maserati GranTurismo (2009) REAR BUMPER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 980145004
                  COMPLETE REAR BUMPER
                  Not for cars with: Rear bumper aerodinamic fins (MC Line), Special Edition.
                  from £572.83
                  from £572.83
                  # 002
                  MPN: 80063800
                  RH BRACKET
                  from £36.92
                  from £36.92
                  # 002
                  MPN: 80063900
                  LH BRACKET
                  from £36.92
                  from £36.92
                  # 003
                  MPN: 80084300
                  RH BRACKET
                  from £15.18
                  from £15.18
                  # 004
                  MPN: 80084400
                  LH BRACKET
                  from £15.18
                  from £15.18
                  # 005
                  MPN: 980145031
                  COMPLETE PLATE #REAR BUMPER FIXING#
                  from £35.15
                  from £35.15
                  This part replaces part number 80064010 - and 1 more. Click to view details
                  # 006
                  MPN: 15688075
                  SCREW [M4,2X13]
                  from £0.53
                  from £0.53
                  # 007
                  MPN: 80442500
                  RH BRACKET FOR FIXING NUMBER PLATE
                  (valid for: CANADA,MIDDLE-EAST,USA)
                  from £15.24
                  from £15.24
                  # 008
                  MPN: 80442900
                  LH BRACKET FOR FIXING NUMBER PLATE
                  (valid for: CANADA,MIDDLE-EAST,USA)
                  from £15.24
                  from £15.24
                  # 009
                  MPN: 14775211
                  SCREW [M4X8]
                  (valid for: CANADA,MIDDLE-EAST,USA)
                  from £0.47
                  from £0.47
                  # 010
                  MPN: 12642801
                  WASHER [D. 4.15-12X 1]
                  (valid for: CANADA,MIDDLE-EAST,USA)
                  from £0.53
                  from £0.53
                  # 011
                  MPN: 14370571
                  BRACKET
                  (valid for: CANADA,MIDDLE-EAST,USA)
                  from £0.47
                  from £0.47
                  # 012
                  MPN: 80305300
                  REAR BUMPER RIGHT SIDE SHOCK ABSORBER
                  (valid for: CANADA,MIDDLE-EAST,USA)
                  from £21.53
                  from £21.53
                  # 013
                  MPN: 80305400
                  REAR BUMPER LEFT SIDE SHOCK ABSORBER
                  (valid for: CANADA,MIDDLE-EAST,USA)
                  from £21.53
                  from £21.53
                  # 014
                  MPN: 82074500
                  RH BRACKET
                  (valid for: JAPAN)
                  from £41.83
                  from £41.83
                  # 015
                  MPN: 82074600
                  LH BRACKET
                  (valid for: JAPAN)
                  from £17.93
                  from £17.93
                  # 016
                  MPN: 80269600
                  CLIP
                  from £3.21
                  from £3.21
                  # 017
                  MPN: 51810310
                  SCREW
                  from £2.30
                  from £2.30
                  This part replaces part number 46419734
                  # 018
                  MPN: 312320384
                  GASKET
                  from £0.68
                  from £0.68
