01.11.1 - auxiliary device belts

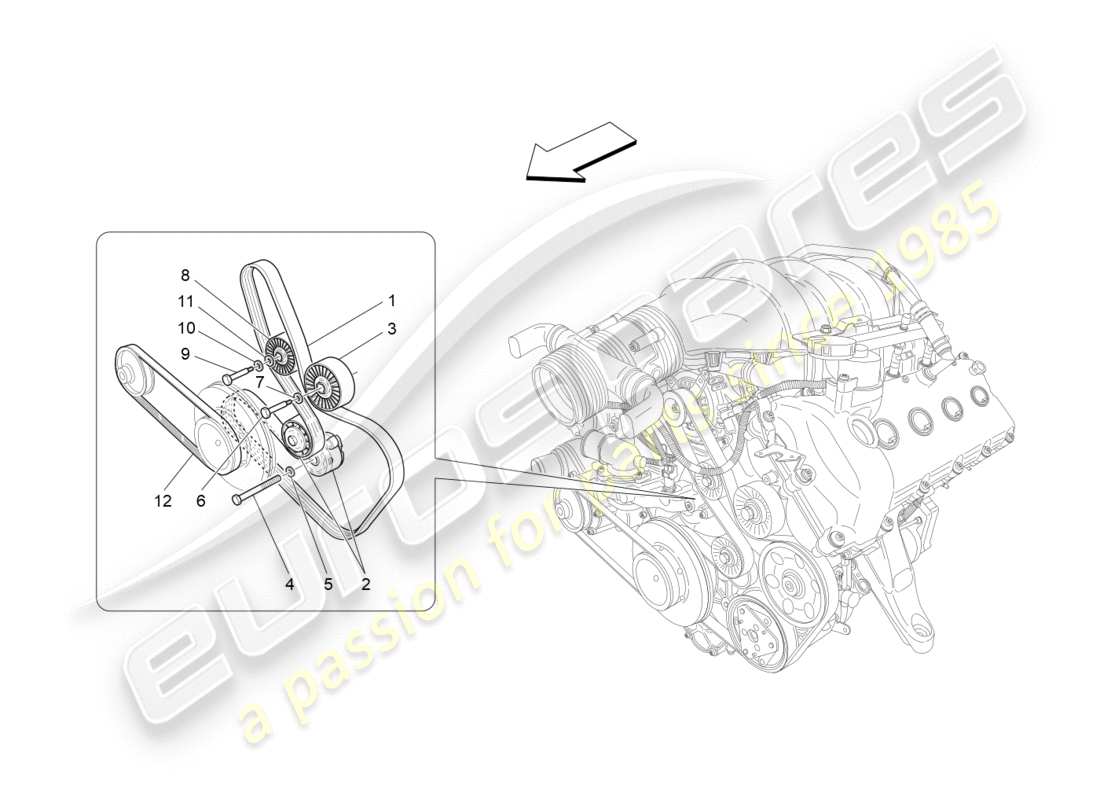

Maserati GranTurismo (2010) AUXILIARY DEVICE BELTS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 239616
COMPRESSOR DRIVING BELT
(valid for: AUTOMATIC)
from £21.45
from £21.45
This part replaces part number 226946
# 001
MPN: 239617
COMPRESSOR DRIVING BELT
Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £29.24
from £29.24
This part replaces part number 227990
# 002
MPN: 224178
BELT TENSIONER #ORDER ONLY FOR CARS WITH ENGINE # LOWER THAN 196384 OR FOR THIS ENGINE #: 196387-196388-196392-196389-196391-196239-196400-196402-196399-196394-196393#
Valid from engine: 0 - 180017.
from £62.21
from £62.21
# 002
MPN: 224178
BELT TENSIONER #ORDER ONLY FOR CARS WITH ENGINE # LOWER THAN 196384 OR FOR THIS ENGINE #: 196387-196388-196392-196389-196391-196239-196400-196402-196399-196394-196393#
Valid from engine: 180018.
from £62.21
from £62.21
# 002
MPN: 271881
BELT TENSIONER #ORDER ONLY FOR CARS WITH ENGINE # UPPER THAN 196384 , NOT FOR THIS ENGINE #: 196387-196388-196392-196389-196391-196239-196400-196402-196399-196394-196393, UNLESS IT IS SUPPLIED TOGETHER WITH 284728#
(valid for: AUSTRALIA,CANADA,CHINA,JAPAN,MIDDLE-EAST,TAIWAN,USA)
from £63.98
from £63.98
# 003
MPN: 172537
BELT TIGHTENING PULLEY
Valid from engine: 0 - 129637.
from £72.42
from £72.42
# 003
MPN: 227894
BELT TIGHTENING PULLEY
Valid from engine: 129638.
from £41.61
from £41.61
# 004
MPN: 16044431
SCREW
from £0.53
from £0.53
# 005
MPN: 11193874
WASHER [D.8.4-16X1.4]
from £0.54
from £0.54
# 006
MPN: 11234724
SCREW
Valid from engine: 0 - 129637.
from £0.54
from £0.54
# 006
MPN: 11343821
SCREW
Valid from engine: 129638.
from £0.64
from £0.64
# 007
MPN: 10569474
WASHER
Valid from engine: 129638.
from £0.54
from £0.54
# 007
MPN: 11198374
WASHER
Valid from engine: 0 - 129637.
from £0.47
from £0.47
This part replaces part number 675000618
# 008
MPN: 226205
BELT TIGHTENING PULLEY
from £22.47
from £22.47
# 009
MPN: 16043324
SCREW
from £0.53
from £0.53
# 010
MPN: 11193974
WASHER
from £0.26
from £0.26
# 011
MPN: 12647024
WASHER
Supersession
Supersession
# 012
MPN: 214271
WATER PUMP DRIVING BELT
from £9.10
from £9.10
