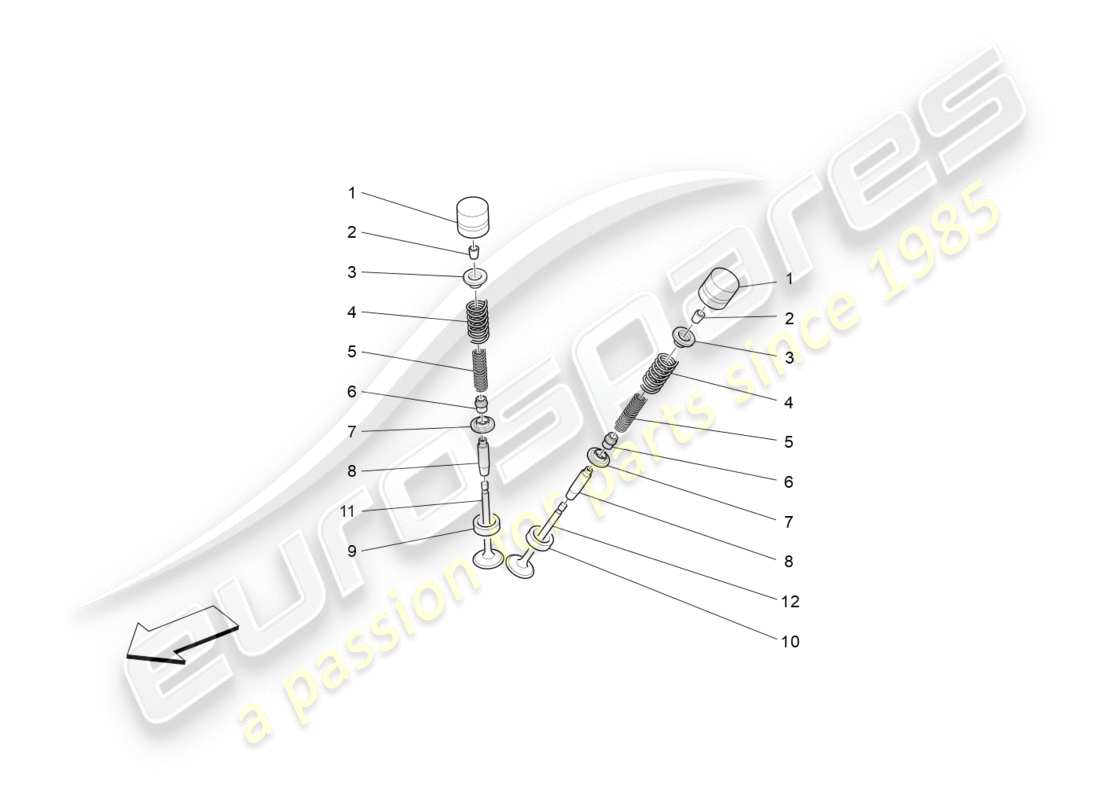

Maserati GranTurismo (2010) VALVES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 194700
HYDRAULIC TAPPET FOR VALVE
Valid from assembly: 0 - 60847.
from £21.00
from £21.00
This part replaces part number 187657 - and 3 more. Click to view details
# 001
MPN: 194700
HYDRAULIC TAPPET FOR VALVE
Valid from assembly: 0 - 87853.
from £21.00
from £21.00
This part replaces part number 187657 - and 3 more. Click to view details
# 001
MPN: 247480
HYDRAULIC TAPPET FOR VALVE
(valid for: AUTOMATIC | 4700 cc)
from £51.46
from £51.46
This part replaces part number 194700 which we have in stock
# 002
MPN: 179763
COTTER FOR VALVE SPRING
from £0.27
from £0.27
# 003
MPN: 187489
UPPER WASHER
Valid from engine: 0 - 150564. (valid for: 4700 cc)
from £5.06
from £5.06
# 003
MPN: 194713
UPPER WASHER
Valid from assembly: 0 - 87853.
from £5.09
from £5.09
# 003
MPN: 194713
UPPER WASHER
Valid from engine: 150565.
from £5.09
from £5.09
# 003
MPN: 237390
UPPER WASHER
Valid from assembly: 0 - 87853.
from £2.90
from £2.90
# 003
MPN: 237390
UPPER WASHER
Valid from engine: 150565.
from £2.90
from £2.90
# 004
MPN: 184054
OUTER SPRING FOR VALVE RETURN
Valid from engine: 0 - 150564. (valid for: 4700 cc)
from £6.86
from £6.86
# 004
MPN: 197900
OUTER SPRING FOR VALVE RETURN
Valid from assembly: 0 - 87853.
from £3.88
from £3.88
# 004
MPN: 197900
OUTER SPRING FOR VALVE RETURN
Valid from engine: 150565.
from £3.88
from £3.88
# 005
MPN: 184055
INNER SPRING FOR VALVE RETURN
Valid from engine: 0 - 150564. (valid for: 4700 cc)
from £27.64
from £27.64
# 005
MPN: 197901
INNER SPRING FOR VALVE RETURN
Valid from assembly: 0 - 87853.
from £2.79
from £2.79
# 005
MPN: 197901
INNER SPRING FOR VALVE RETURN
Valid from engine: 150565.
from £2.79
from £2.79
# 006
MPN: 221473
OIL SEAL
from £0.94
from £0.94
This part replaces part number 148153
# 007
MPN: 190388
LOWER CUP
Valid from engine: 0 - 150564. (valid for: 4700 cc)
from £4.38
from £4.38
This part replaces part number 184594 which we have in stock
# 007
MPN: 194718
LOWER CUP
Valid from assembly: 0 - 87853.
from £26.98
from £26.98
# 007
MPN: 194718
LOWER CUP
Valid from engine: 150565.
from £26.98
from £26.98
# 007
MPN: 242574
LOWER CUP
Valid from assembly: 0 - 87853.
from £4.63
from £4.63
# 007
MPN: 242574
LOWER CUP
Valid from engine: 150565.
from £4.63
from £4.63
# 008
-
INTAKE AND EXHAUST VALVE GUIDE #AVAILABLE ONLY WITH HEAD ASSEMBLY#
# 009
-
INDUCTION VALVE SEAT #AVAILABLE ONLY WITH HEAD ASSEMBLY#
# 010
-
EXHAUST VALVE SEAT #AVAILABLE ONLY WITH HEAD ASSEMBLY#
# 011
MPN: 198581
INTAKE VALVE
from £4.57
from £4.57
# 012
MPN: 227334
EXHAUST VALVE
from £24.47
from £24.47
This part replaces part number 198582 - and 1 more. Click to view details
