01.44.1 - fuel vapour recirculation system

Maserati GranTurismo (2010) FUEL VAPOUR RECIRCULATION SYSTEM Parts Diagram

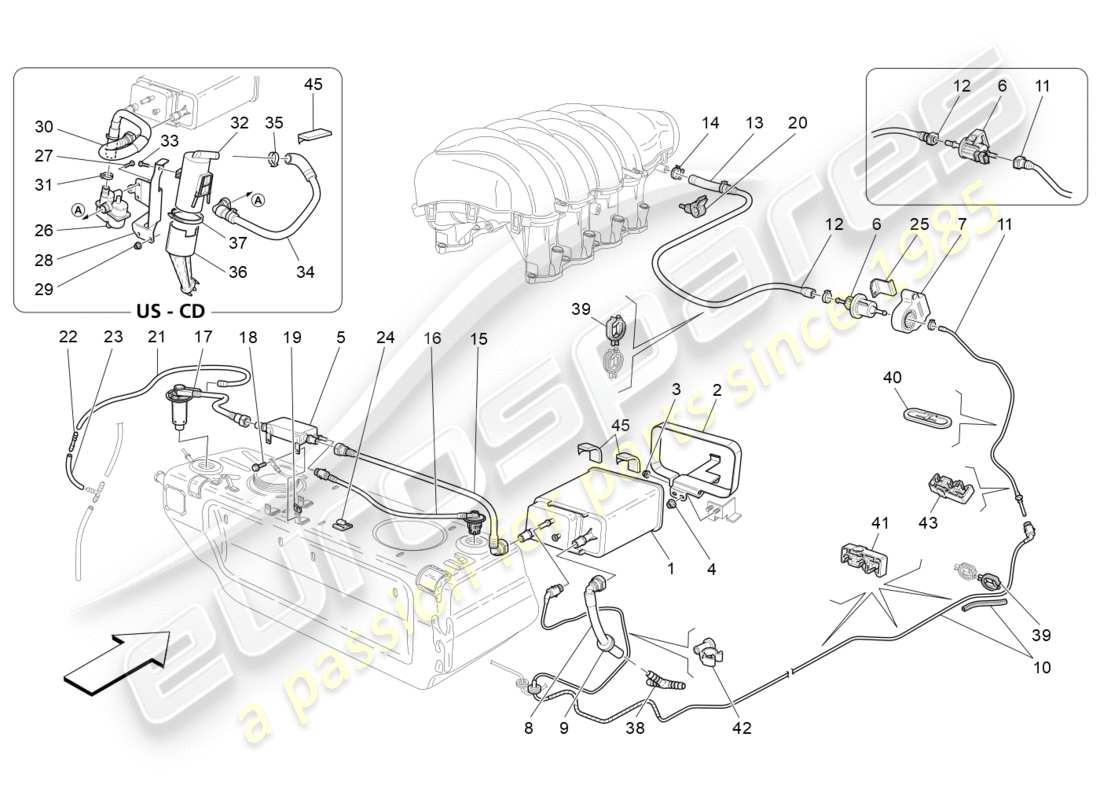

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 220074
                                                    FUEL VAPOUR FILTER
                                                    from £61.55
                                                    from £61.55
                                                    This part replaces part number 212961 - and 1 more. Click to view details
                                                    # 002
                                                    MPN: 232806
                                                    FUEL VAPOR FILTER SUPPORT BRACKET
                                                    from £15.98
                                                    from £15.98
                                                    # 003
                                                    MPN: 14040611
                                                    NUT
                                                    from £0.54
                                                    from £0.54
                                                    # 004
                                                    MPN: 14040611
                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 005
                                                    MPN: 228802
                                                    FUEL VAPOUR SEPARATOR
                                                    from £73.84
                                                    from £73.84
                                                    # 006
                                                    MPN: 180861
                                                    WASHER VALVE
                                                    Valid from assembly: 0 - 91906. (valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
                                                    from £53.02
                                                    from £53.02
                                                    # 006
                                                    MPN: 237683
                                                    WASHER VALVE
                                                    (valid for: AUTOMATIC)
                                                    from £30.94
                                                    from £30.94
                                                    # 006
                                                    MPN: 237683
                                                    WASHER VALVE
                                                    Valid from assembly: 49658 - 87853. (valid for: AUTOMATIC)
                                                    from £30.94
                                                    from £30.94
                                                    # 007
                                                    MPN: 174623
                                                    BUFFER FOR SUPPORT
                                                    Valid from assembly: 0 - 91906.
                                                    from £3.88
                                                    from £3.88
                                                    # 008
                                                    MPN: 211925
                                                    PIPE FROM FUEL VAPOUR FILTER TO WHEELHOUSE
                                                    (valid for: AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,TAIWAN,UK)
                                                    from £10.35
                                                    from £10.35
                                                    # 009
                                                    MPN: 10396880
                                                    INTERMEDIATE RING
                                                    (valid for: AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,TAIWAN,UK)
                                                    from £2.32
                                                    from £2.32
                                                    # 010
                                                    MPN: 216655
                                                    PIPE FROM FUEL VAPOUR FILTER TO WHEEL COMPARTMENT
                                                    from £80.60
                                                    from £80.60
                                                    # 011
                                                    MPN: 199849
                                                    VAPOR PIPE
                                                    Valid from assembly: 0 - 87853.
                                                    from £105.00
                                                    from £105.00
                                                    # 011
                                                    MPN: 199849
                                                    VAPOR PIPE
                                                    Valid from assembly: 0 - 91906.
                                                    from £105.00
                                                    from £105.00
                                                    # 011
                                                    MPN: 241365
                                                    VAPOR PIPE
                                                    (valid for: AUTOMATIC | 4700 cc)
                                                    from £207.99
                                                    from £207.99
                                                    # 012
                                                    MPN: 209822
                                                    VAPOR PIPE
                                                    Valid from assembly: 0 - 87853.
                                                    from £652.13
                                                    from £652.13
                                                    # 012
                                                    MPN: 209822
                                                    VAPOR PIPE
                                                    Valid from assembly: 0 - 91906.
                                                    from £652.13
                                                    from £652.13
                                                    # 012
                                                    MPN: 241362
                                                    VAPOR PIPE
                                                    (valid for: AUTOMATIC | 4700 cc)
                                                    from £662.98
                                                    from £662.98
                                                    # 014
                                                    MPN: 13433570
                                                    SCREW COLLAR
                                                    from £0.53
                                                    from £0.53
                                                    # 015
                                                    MPN: 192210
                                                    PIPE FROM SEPARATOR TO FUEL VAPOUR FILTER
                                                    from £201.36
                                                    from £201.36
                                                    # 016
                                                    MPN: 192100
                                                    EXHAUST VALVE WITH PIPE
                                                    from £203.73
                                                    from £203.73
                                                    # 017
                                                    MPN: 217194
                                                    MULTIFUNCTION VALVE WITH PIPE
                                                    from £256.12
                                                    from £256.12
                                                    This part replaces part number 192099 which we have in stock - and 1 more. Click to view details
                                                    # 018
                                                    MPN: 16296924
                                                    SCREW
                                                    from £0.52
                                                    from £0.52
                                                    # 019
                                                    MPN: 14189071
                                                    BRACKET
                                                    from £0.53
                                                    from £0.53
                                                    # 020
                                                    MPN: 198264
                                                    CLIP
                                                    from £1.69
                                                    from £1.69
                                                    # 021
                                                    MPN: 228959
                                                    PIPE
                                                    from £17.83
                                                    from £17.83
                                                    # 022
                                                    MPN: 204955
                                                    TWO-WAY UNION
                                                    from £1.20
                                                    from £1.20
                                                    # 023
                                                    MPN: 68085100
                                                    PIPE
                                                    from £1.62
                                                    from £1.62
                                                    # 024
                                                    MPN: 198671
                                                    CLIP
                                                    from £2.32
                                                    from £2.32
                                                    # 025
                                                    MPN: 225410
                                                    BRACKET
                                                    from £5.57
                                                    from £5.57
                                                    # 026
                                                    MPN: 202968
                                                    DIAGNOSTICS PUMP
                                                    Valid from assembly: 0 - 55477. (valid for: CANADA,MIDDLE-EAST,USA)
                                                    from £54.60
                                                    from £54.60
                                                    This part replaces part number 185405
                                                    # 026
                                                    MPN: 251288
                                                    DIAGNOSTICS PUMP
                                                    Valid from assembly: 55478. (valid for: CANADA,MIDDLE-EAST,USA)
                                                    from £148.04
                                                    from £148.04
                                                    # 027
                                                    MPN: 15958701
                                                    SCREW
                                                    (valid for: AUTOMATIC | CANADA,USA)
                                                    from £0.53
                                                    from £0.53
                                                    # 028
                                                    MPN: 208567
                                                    BRACKET
                                                    (valid for: AUTOMATIC | CANADA,USA)
                                                    from £18.09
                                                    from £18.09
                                                    # 029
                                                    MPN: 14040611
                                                    NUT
                                                    (valid for: AUTOMATIC | CANADA,USA)
                                                    from £0.53
                                                    from £0.53
                                                    # 030
                                                    MPN: 237073
                                                    PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP
                                                    (valid for: AUTOMATIC | CANADA,USA)
                                                    from £45.31
                                                    from £45.31
                                                    # 031
                                                    MPN: 13432670
                                                    COLLAR
                                                    (valid for: AUTOMATIC | CANADA,USA)
                                                    from £3.48
                                                    from £3.48
                                                    # 032
                                                    MPN: 183221
                                                    DIAGNOSTICS PUMP FILTER
                                                    (valid for: CANADA,MIDDLE-EAST,USA)
                                                    from £7.40
                                                    from £7.40
                                                    # 033
                                                    MPN: 15958701
                                                    SCREW
                                                    (valid for: AUTOMATIC | CANADA,USA)
                                                    from £0.54
                                                    from £0.54
                                                    # 034
                                                    MPN: 208569
                                                    PIPE FROM OBD PUMP TO FILTER
                                                    (valid for: AUTOMATIC | CANADA,USA)
                                                    from £61.44
                                                    from £61.44
                                                    # 035
                                                    MPN: 13433370
                                                    COLLAR
                                                    (valid for: AUTOMATIC | CANADA,USA)
                                                    from £0.61
                                                    from £0.61
                                                    # 036
                                                    MPN: 205330
                                                    AIR INTAKE HOSE FOR DIAGNOSTIC PUMP FILTER
                                                    (valid for: CANADA,MIDDLE-EAST,USA)
                                                    from £31.28
                                                    from £31.28
                                                    # 037
                                                    MPN: 13000890
                                                    SCREW COLLAR
                                                    (valid for: AUTOMATIC | CANADA,USA)
                                                    from £0.64
                                                    from £0.64
                                                    This part replaces part number 312020136
                                                    # 038
                                                    MPN: 211389
                                                    UNION
                                                    (valid for: AUSTRALIA,CHINA,EUROPE,JAPAN,JAPAN (RH DRIVE),SOUTH AFRICA,TAIWAN,UK)
                                                    from £2.40
                                                    from £2.40
                                                    # 039
                                                    MPN: 191907
                                                    CLIP
                                                    from £0.92
                                                    from £0.92
                                                    # 040
                                                    MPN: 221727
                                                    WATER PIPE GASKET
                                                    from £4.17
                                                    from £4.17
                                                    # 041
                                                    MPN: 213603
                                                    CLIP
                                                    from £1.55
                                                    from £1.55
                                                    # 042
                                                    MPN: 201426
                                                    CLIP
                                                    from £3.63
                                                    from £3.63
                                                    # 043
                                                    MPN: 195052
                                                    CLIP
                                                    from £1.08
                                                    from £1.08
                                                    # 045
                                                    MPN: 229260
                                                    RUBBER THICKNESS
                                                    from £1.55
                                                    from £1.55
