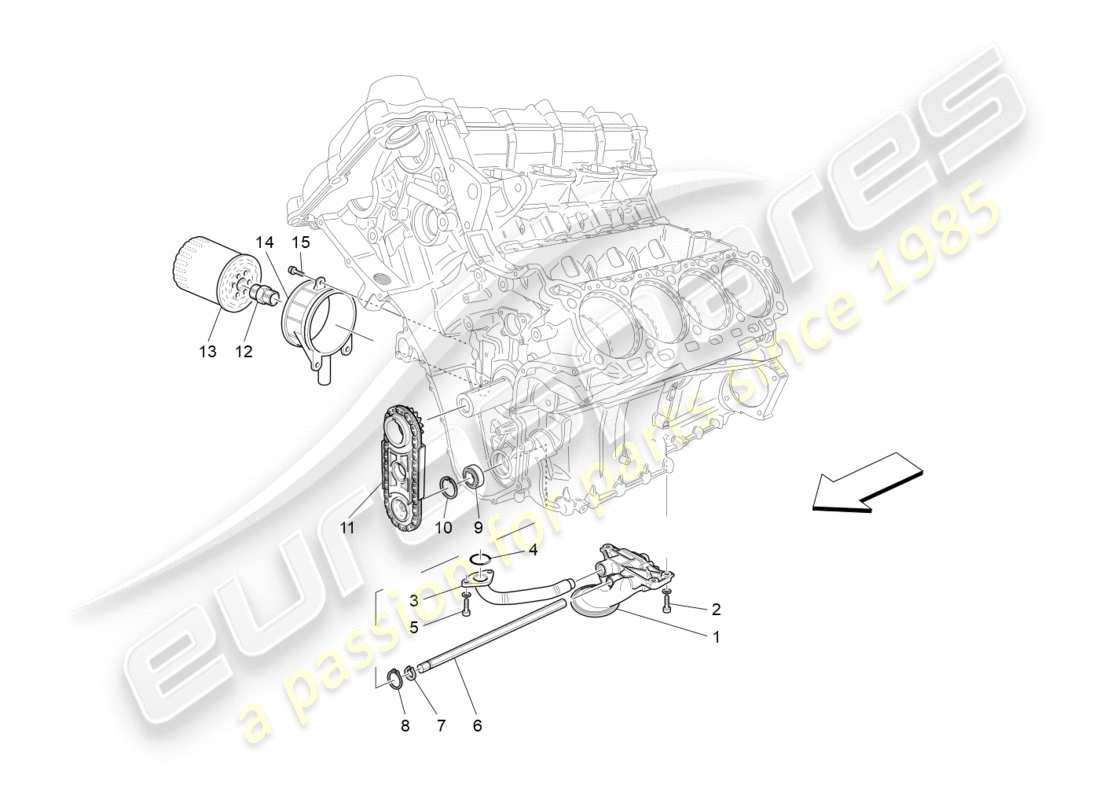

01.61.1 - lubrication system: pump and filter
Maserati GranTurismo (2010) LUBRICATION SYSTEM: PUMP AND FILTER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 228233
OIL PUMP ASSEMBLY
Valid from engine: 0 - 176951.
from £330.04
from £330.04
# 001
MPN: 265939
OIL PUMP ASSEMBLY
Valid from engine: 176952.
from £452.00
from £452.00
# 002
MPN: 231629
SCREW [M8X30]
Valid from engine: 0 - 176951.
from £0.53
from £0.53
# 002
MPN: 265097
SCREW [M8X40]
Valid from engine: 176952.
from £3.60
from £3.60
# 003
MPN: 223417
OIL DELIVERY TUBE
from £730.83
from £730.83
# 004
MPN: 140071
O.R. GASKET
from £0.51
from £0.51
# 005
MPN: 231618
SCREW [M6X20]
from £0.53
from £0.53
# 006
MPN: 225963
OIL PUMP CONTROL BAR
Valid from engine: 0 - 176951.
from £10.15
from £10.15
# 006
MPN: 261148
OIL PUMP CONTROL BAR
Valid from engine: 176952.
from £8.73
from £8.73
# 007
MPN: 11066176
CIRCLIP (SEEGER-RING)
from £0.53
from £0.53
# 008
MPN: 11066876
CIRCLIP (SEEGER-RING)
from £0.47
from £0.47
# 009
MPN: 216239
BEARING
from £10.86
from £10.86
# 010
MPN: 11059676
CIRCLIP (SEEGER-RING)
from £0.47
from £0.47
# 011
MPN: 223267
COMPLETE OIL PUMP CONTROL UNIT
from £277.58
from £277.58
# 012
MPN: 225838
THREADED UNION
from £6.69
from £6.69
# 013
MPN: 289571
OIL FILTER CARTRIDGE
Valid from engine: 191260.
from £47.07
from £47.07
This part replaces part number 280465
# 014
MPN: 258737
OIL FILTER BOOT
from £62.52
from £62.52
# 015
MPN: 231617
SCREW [M6X18]
from £0.53
from £0.53
