maserati granturismo (2010) heat exchanger parts diagram

01.62.1 - HEAT EXCHANGER

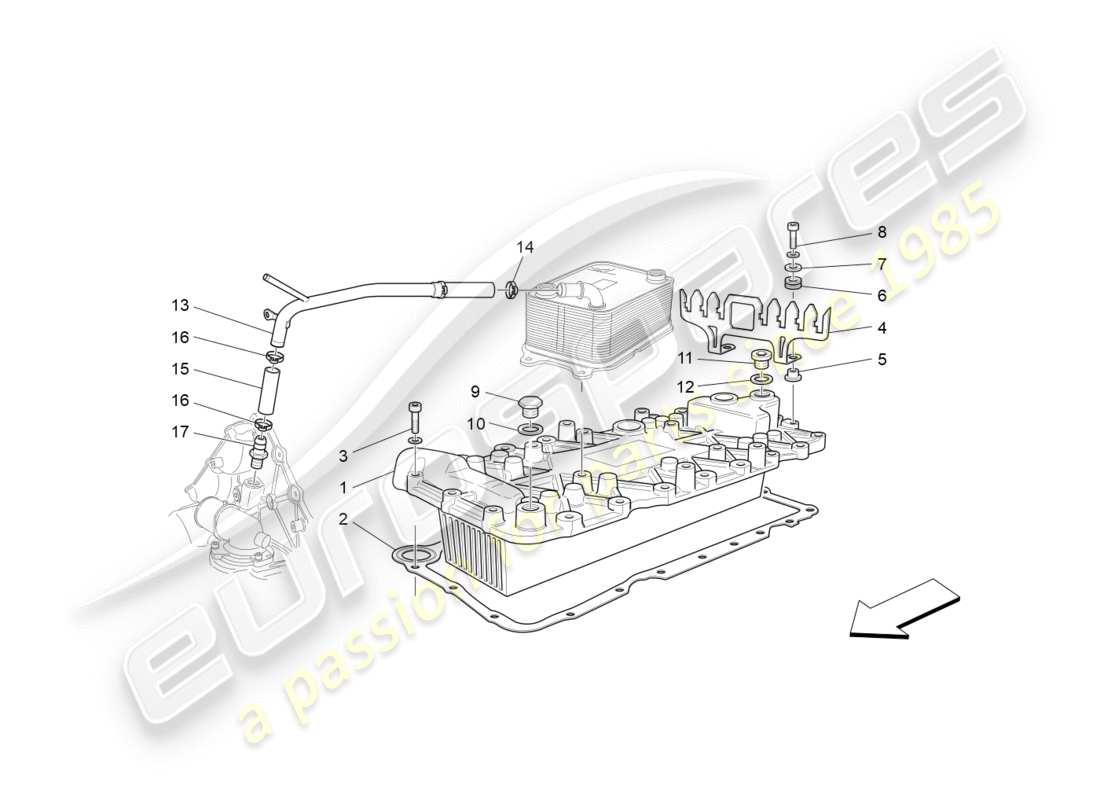

Maserati GranTurismo (2010) HEAT EXCHANGER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 249527
HEAT EXCHANGER
(valid for: AUTOMATIC)
from £1,094.81
from £1,094.81
This part replaces part number 225826
# 002
MPN: 322663
GASKET
(valid for: AUTOMATIC)
from £16.09
from £16.09
This part replaces part number 238689
# 003
MPN: 231620
SCREW [M6X25] #M 6X25#
(valid for: AUTOMATIC)
from £0.48
from £0.48
# 003
MPN: 231621
SCREW [M6X30] #M 6X30#
(valid for: AUTOMATIC)
from £0.52
from £0.52
# 004
MPN: 247096
BRACKET
(valid for: AUTOMATIC)
from £17.93
from £17.93
# 004
MPN: 247096
BRACKET
Valid from assembly: 49658 - 87853. (valid for: AUTOMATIC)
from £17.93
from £17.93
# 005
MPN: 149707
SPACER
(valid for: AUTOMATIC)
from £0.78
from £0.78
# 006
MPN: 177576
INTERMEDIATE RING
(valid for: AUTOMATIC)
from £1.48
from £1.48
# 007
MPN: 12643724
WASHER [D 6,15-18X 1,5]
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 008
MPN: 231620
SCREW [M6X25]
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 009
MPN: 11903011
PLUG
(valid for: AUTOMATIC)
from £4.25
from £4.25
# 010
MPN: 10284460
GASKET
(valid for: AUTOMATIC)
from £0.47
from £0.47
# 011
MPN: 150731
THREADED PLUG
(valid for: AUTOMATIC)
from £2.30
from £2.30
# 012
MPN: 10280060
GASKET
(valid for: AUTOMATIC)
from £0.53
from £0.53
# 013
MPN: 231360
WATER OUTLET PIPE FROM HEAT EXCHANGER
Valid from assembly: 0 - 60847. (valid for: AUTOMATIC)
from £143.61
from £143.61
# 014
MPN: 228142
CLAMP
(valid for: AUTOMATIC)
from £1.20
from £1.20
# 015
MPN: 237411
SLEEVE
(valid for: AUTOMATIC)
from £18.65
from £18.65
This part replaces part number 221708
# 016
MPN: 228142
CLAMP
(valid for: AUTOMATIC)
from £1.19
from £1.19
# 017
MPN: 228439
THREADED UNION
(valid for: AUTOMATIC)
from £7.82
from £7.82
This part replaces part number 237662
# 017
MPN: 237662
THREADED UNION
(valid for: AUTOMATIC)
Supersession
Supersession
